webgl着色器学习 - 颜色渐变着色器
·

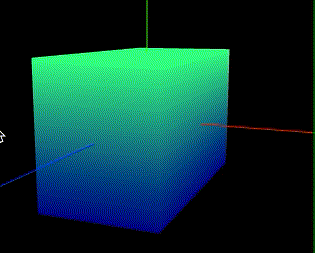

一个模型
/*
* @Author: hongbin
* @Date: 2022-09-30 12:05:35
* @LastEditors: hongbin
* @LastEditTime: 2022-10-01 09:31:09
* @Description:逐帧通过uniform改变模型颜色
*/
import * as THREE from "three";
export const ColorChangesConstantly = () => {
const vertexShader = `
varying vec2 vUv;
varying vec3 vPosition;
void main () {
vUv = uv;
vPosition = position;
gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
}
`;
const fragmentShader = `
varying vec2 vUv;
varying vec3 vPosition;
uniform float time;
void main () {
float r = sin(time);
float g = vUv.y;
float b = cos(sin(time));
if(abs(vPosition.y) >= 3.0){
g = vPosition.y > 0.0 ? 1.0 : 0.0;
}
gl_FragColor = vec4(r,g,b,1);
}
`;
const clock = new THREE.Clock();
const uniforms = {
time: { value: clock.getElapsedTime() },
};
const tick = () => {
requestAnimationFrame(tick);
uniforms.time.value = clock.getElapsedTime();
window.render();
};
tick();
const box = new THREE.Mesh(
new THREE.BoxGeometry(5, 6, 10),
new THREE.ShaderMaterial({
vertexShader,
fragmentShader,
uniforms,
})
);
return box;
};

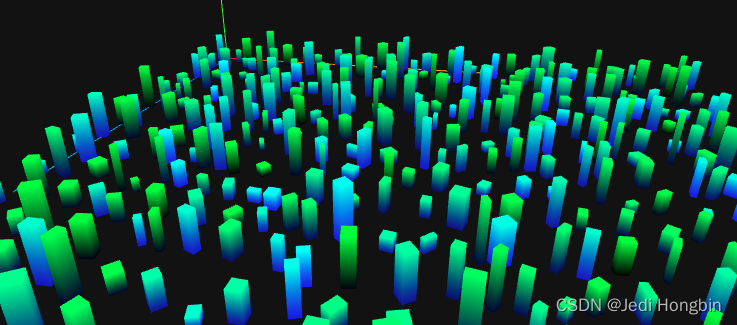

多个模型
多个模型就不能每一一个定时器了 颜色更改在一个定时器中执行 减小开销
/*
* @Author: hongbin
* @Date: 2022-09-30 12:05:35
* @LastEditors: hongbin
* @LastEditTime: 2022-10-01 12:10:45
* @Description:逐帧通过uniform改变模型颜色
*/
import * as THREE from "three";
import { Material } from "three";
let x = 0;
let z = 0;
export const ColorChangesConstantlyGroup = (itemCount: number) => {
const group = new THREE.Group();
const clock = new THREE.Clock();
for (let i = 0; i < itemCount; i++) {
group.add(
ColorChangesConstantly({
width: 1 + Math.random() * 2,
length: 2 + Math.random() * 10,
depth: 1 + Math.random() * 2,
})
);
}
const tick = () => {
requestAnimationFrame(tick);
group.children.forEach((m: THREE.Object3D) => {
//@ts-ignore
m.material.uniforms.time.value = clock.getElapsedTime();
// m.scale.y += 0.01;
//@ts-ignore
m.rotation.y += m.material.uniforms.random.value / 10;
});
window.render();
};
tick();
return group;
};
export const ColorChangesConstantly = ({
width,
length,
depth,
}: {
width: number;
length: number;
depth: number;
}) => {
const vertexShader = `
varying vec2 vUv;
varying vec3 vPosition;
uniform float time;
vec3 TempPosition;
void main () {
vUv = uv;
vPosition = position;
TempPosition = position;
gl_Position = projectionMatrix * modelViewMatrix * vec4(TempPosition,1.0);
}
`;
const fragmentShader = `
varying vec2 vUv;
varying vec3 vPosition;
uniform float time;
uniform float maxY;
uniform float random;
void main () {
float r = sin(time);
float g = vUv.y;
float b = cos(sin(time)) * random;
if(abs(vPosition.y) >= maxY){
g = vPosition.y > 0.0 ? 1.0 : 0.0;
}
gl_FragColor = vec4(r,g,b,1);
}
`;
const uniforms = {
time: { value: 0 },
maxY: { value: length / 2 },
random: { value: Math.random() },
};
const box = new THREE.Mesh(
new THREE.BoxGeometry(width, length, depth),
new THREE.ShaderMaterial({
vertexShader,
fragmentShader,
uniforms,
})
);
box.position.y += length / 2;
box.position.x = x;
box.position.z = z + Math.random() * 5;
x += width * 3;
if (x > 160) {
x = 0;
z += 10;
}
box.userData.setY = (num: number) => {
box.position.y += num;
return box;
};
return box;
};
