思路

vertexShader中使用varying定义的变量可以在fragmentShader中使用

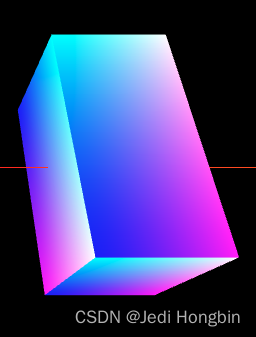

传递 uv

const vertexShader = `
    varying vec2 v_uv;

    void main () {
        v_uv = uv;
        gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
    }
`;

const fragmentShader = `
    varying vec2 v_uv;

    void main () {
        gl_FragColor = vec4(v_uv,0.7,1);
    }
`;

export const colorPlaneShader = {
    vertexShader,
    fragmentShader,
};

const colorBox = () => {
    const box = new THREE.Mesh(
        new THREE.BoxGeometry(5, 6, 10),
        new THREE.ShaderMaterial({
            ...colorUVShader,
        })
    );
    box.translateX(10);
    return box;
};

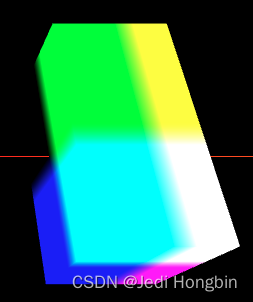

传递 position

const veryingPositionShader = {
    vertexShader: `
        varying vec3 v_position;
        void main () {
            v_position = position;
            gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
        }
    `,
    fragmentShader: `
        varying vec3 v_position;

        void main () {
            gl_FragColor = vec4(v_position,1);
        }
    `,
};

限制渐变范围

const appointColorBox = () => {
    const vertexShader = `
        varying vec3 v_position;

        void main () {
            v_position = position;
            gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
        }
    `;

    const fragmentShader = `
        varying vec3 v_position;
        // 最小颜色值
        float min = 0.6835559;
        // 最大颜色值
        float max = 0.6255737;
        void main () {
            // 无法直接修改 v_position
            // 限制在这个区间
            float val = min + (max - min) * v_position.y;
            gl_FragColor = vec4(
                val,
                val,
                val,
                1
            );
        }
    `;

    const box = new THREE.Mesh(
        new THREE.BoxGeometry(5, 6, 10),
        new THREE.ShaderMaterial({
            vertexShader,
            fragmentShader,
            side: 2,
        })
    );
    return box;
};

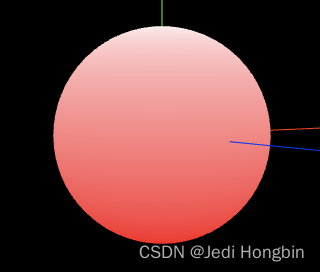

指定渐变颜色

lineGradientSphere({ r: 1, g: 0, b: 0 }, { r: 1, g: 1, b: 1 })

/**
 * @description: 指定两个渐变色创建渐变物体
 * @param {string} color1 rgb格式颜色
 * @param {string} color2 rgb格式颜色
 * @return {*}
 */
export const lineGradientSphere = (
    color1: { r: number; g: number; b: number },
    color2: { r: number; g: number; b: number }
) => {
    const vertexShader = `
        varying vec2 v_uv;

        void main () {
            v_uv = uv;
            gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
        }
    `;

    const fragmentShader = `
        varying vec2 v_uv;
        uniform float u_r_base;
        uniform float u_g_base;
        uniform float u_b_base;
        uniform float u_r_space;
        uniform float u_g_space;
        uniform float u_b_space;

        void main () {
            // 限制在这个区间
            float r = u_r_base + (u_r_space) * v_uv.y;
            float g = u_g_base + (u_g_space) * v_uv.y;
            float b = u_b_base + (u_b_space) * v_uv.y;
            gl_FragColor = vec4(abs(r),abs(g),abs(b),1);
        }
    `;

    const uniforms = {
        u_r_base: { value: color1.r },
        u_g_base: { value: color1.g },
        u_b_base: { value: color1.b },
        u_r_space: {
            value: color1.r - color2.r,
        },
        u_g_space: {
            value: color1.g - color2.g,
        },
        u_b_space: {
            value: color1.b - color2.b,
        },
    };

    const sphere = new THREE.Mesh(
        new THREE.SphereGeometry(3.14, 32, 32),
        new THREE.ShaderMaterial({
            vertexShader,
            fragmentShader,
            side: 2,
            uniforms,
        })
    );

    return sphere;
};
