概念

是一种让计算机通过观察专家示范来学会完成任务的机器学习方法。

可以把它想象成一个"表演家"和"评论家"之间的博弈：

• 表演家（生成器）：一个新手，试图模仿专家的动作。

• 评论家（判别器）：一个考官，火眼金睛地分辨哪些动作是专家的，哪些是新手模仿的。

整个过程是一个"最小-最大"博弈。智能体（生成器）的目标是最小化自己与专家的差距，而判别器的目标是最大化自己分辨真伪的能力。随着博弈的进行，新手为了骗过考官，会模仿得越来越像，最终成为一个能像专家一样熟练执行任务的"行家"。

生成器(generator)和判别器(discriminator)各是一个神经网络。生成器负责生成假的样本，而判别器负责判定一个样本是真是假。判别器像一个不断进化的"专家鉴定师"，它被训练去区分哪些"状态-动作对"来自真正的专家，哪些来自正在学习的智能体。智能体（生成器）则在环境中行动。它的"奖励"不是来自环境，而是来自判别器的打分。如果判别器认为它的行为像专家，它就得到高分。为了持续获得高分，智能体必须不断调整自己的策略，让自己更像专家。

工作流程

1. 准备专家数据
   收集专家完成任务时的状态-动作对（或完整轨迹），作为模仿的目标。

2. 初始化两个网络

   • 生成器网络：根据状态输出动作。

   • 判别器网络：输入状态-动作对，输出该对来自专家的概率。

3. 迭代训练
   在每个训练轮次中：

   • 生成策略数据：用当前策略与环境交互，采集一批状态-动作对。

   • 采样专家数据：从专家数据集中随机抽取相同数量的状态-动作对。

   • 训练判别器
     将策略数据和专家数据混合，训练判别器区分二者（专家数据标为1，策略数据标为0）。损失函数通常是二分类交叉熵。

   • 计算伪奖励
     用判别器的输出为策略生成奖励信号（例如 -log(1 - D(s,a)) 或 log D(s,a)），使策略能通过强化学习算法优化。

   • 更新策略
     使用任意强化学习算法（如PPO、TRPO）根据伪奖励更新策略，目标是让判别器更难区分策略数据与专家数据。

4. 重复
   交替训练判别器和策略，直至策略的行为与专家足够接近。

代码实现

1.PPO训练专家数据（见模仿学习2.1）

2.GAIL_cartpole.py

import paddle
import paddle.nn as nn
import paddle.nn.functional as F
import gymnasium as gym
import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
from paddle.distribution import Categorical

# -------------------- 网络定义 --------------------
# 策略网络（Actor）
class PolicyNet(nn.Layer):
    def __init__(self, state_dim, hidden_dim, action_dim):
        super(PolicyNet, self).__init__()
        self.fc1 = nn.Linear(state_dim, hidden_dim)
        self.fc2 = nn.Linear(hidden_dim, action_dim)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        return self.fc2(x)  # logits

# 判别器网络（GAIL核心）
class Discriminator(nn.Layer):
    def __init__(self, state_dim, hidden_dim, action_dim):
        super(Discriminator, self).__init__()
        self.action_dim = action_dim
        self.fc1 = nn.Linear(state_dim + action_dim, hidden_dim)
        self.fc2 = nn.Linear(hidden_dim, hidden_dim)
        self.fc3 = nn.Linear(hidden_dim, 1)

    def forward(self, state, action):
        # 动作one-hot编码
        action_one_hot = F.one_hot(action, num_classes=self.action_dim)
        action_one_hot = paddle.squeeze(action_one_hot, axis=1)
        # 拼接状态+动作
        x = paddle.concat([state, action_one_hot], axis=1)
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        # 输出概率：越接近1=专家，越接近0=智能体
        return F.sigmoid(self.fc3(x))

# -------------------- 专家数据采样 --------------------
def sample_expert_data(n_episode, env, model):
    states = []
    actions = []
    for episode in range(n_episode):
        reset_result = env.reset()
        state = reset_result[0] if isinstance(reset_result, tuple) else reset_result
        done = False
        while not done:
            state_tensor = paddle.to_tensor(state, dtype='float32').unsqueeze(0)
            logits = model(state_tensor)
            probs = F.softmax(logits, axis=-1)
            action = paddle.argmax(probs, axis=-1).item()
            states.append(state)
            actions.append(action)
            step_result = env.step(action)
            if len(step_result) == 5:
                next_state, reward, terminated, truncated, _ = step_result
                done = terminated or truncated
            else:
                next_state, reward, done, _ = step_result
            state = next_state
    return np.array(states), np.array(actions)

# -------------------- GAIL智能体 --------------------
class GAIL:
    def __init__(self, state_dim, hidden_dim, action_dim, lr, gamma=0.98):
        self.gamma = gamma
        # 策略网络 + 优化器
        self.policy = PolicyNet(state_dim, hidden_dim, action_dim)
        self.policy_optim = paddle.optimizer.Adam(
            parameters=self.policy.parameters(), learning_rate=lr
        )
        # 判别器网络 + 优化器
        self.discriminator = Discriminator(state_dim, hidden_dim, action_dim)
        self.disc_optim = paddle.optimizer.Adam(
            parameters=self.discriminator.parameters(), learning_rate=lr
        )

    # 选择动作
    def take_action(self, state, deterministic=False):
        state = paddle.to_tensor([state], dtype="float32")
        logits = self.policy(state)
        probs = F.softmax(logits, axis=-1)
        if deterministic:
            return paddle.argmax(probs, axis=-1).item()
        else:
            return Categorical(probs).sample([1]).item()

    # 判别器损失：区分专家/智能体
    def disc_loss(self, s_expert, a_expert, s_agent, a_agent):
        d_expert = self.discriminator(s_expert, a_expert)
        d_agent = self.discriminator(s_agent, a_agent)
        # 二分类交叉熵损失
        loss_expert = -paddle.log(d_expert + 1e-8).mean()
        loss_agent = -paddle.log(1 - d_agent + 1e-8).mean()
        return loss_expert + loss_agent

    # 策略损失：最大化判别器奖励（骗过判别器）
    def policy_loss(self, s, a):
        d = self.discriminator(s, a)
        # 奖励 = -log(1-D)
        reward = -paddle.log(1 - d + 1e-8)
        logits = self.policy(s)
        log_probs = F.log_softmax(logits, axis=-1)
        action_log_probs = paddle.take_along_axis(log_probs, a, axis=1)
        # 策略梯度：最大化奖励
        loss = -(action_log_probs * reward.detach()).mean()
        return loss

    # 单步训练
    def learn(self, s_expert, a_expert, s_agent, a_agent):
        # 转tensor
        s_expert = paddle.to_tensor(s_expert, dtype="float32")
        a_expert = paddle.to_tensor(a_expert, dtype="int64").unsqueeze(1)
        s_agent = paddle.to_tensor(s_agent, dtype="float32")
        a_agent = paddle.to_tensor(a_agent, dtype="int64").unsqueeze(1)

        # 更新判别器
        d_loss = self.disc_loss(s_expert, a_expert, s_agent, a_agent)
        self.disc_optim.clear_grad()
        d_loss.backward()
        self.disc_optim.step()

        # 更新策略
        p_loss = self.policy_loss(s_agent, a_agent)
        self.policy_optim.clear_grad()
        p_loss.backward()
        self.policy_optim.step()

        return d_loss.item(), p_loss.item()

# -------------------- 测试函数 --------------------
def test_agent(agent, env, n_episode, deterministic=True):
    return_list = []
    for _ in range(n_episode):
        reset_result = env.reset()
        state = reset_result[0] if isinstance(reset_result, tuple) else reset_result
        episode_return = 0
        done = False
        while not done:
            action = agent.take_action(state, deterministic=deterministic)
            step_result = env.step(action)
            if len(step_result) == 5:
                next_state, reward, terminated, truncated, _ = step_result
                done = terminated or truncated
            else:
                next_state, reward, done, _ = step_result
            state = next_state
            episode_return += reward
        return_list.append(episode_return)
    return np.mean(return_list)

def test_expert(env, model, n_episodes=10):
    returns = []
    for _ in range(n_episodes):
        reset_result = env.reset()
        state = reset_result[0] if isinstance(reset_result, tuple) else reset_result
        episode_return = 0
        done = False
        while not done:
            state_tensor = paddle.to_tensor(state, dtype='float32').unsqueeze(0)
            logits = model(state_tensor)
            probs = F.softmax(logits, axis=-1)
            action = paddle.argmax(probs, axis=-1).item()
            step_result = env.step(action)
            if len(step_result) == 5:
                state, reward, terminated, truncated, _ = step_result
                done = terminated or truncated
            else:
                state, reward, done, _ = step_result
            episode_return += reward
        returns.append(episode_return)
    return np.mean(returns)

# -------------------- 主程序 --------------------
if __name__ == "__main__":
    env_name = 'CartPole-v1'
    env = gym.make(env_name)
    state_dim = env.observation_space.shape[0]
    action_dim = env.action_space.n
    hidden_dim = 128
    lr = 1e-4

    # 加载专家模型
    expert_actor = PolicyNet(state_dim, hidden_dim, action_dim)
    try:
        expert_actor.set_state_dict(paddle.load("net_ppo.pdparams"))
        print("专家模型加载成功")
    except Exception as e:
        print("加载失败，请检查文件路径:", e)
        exit()

    # 测试专家
    expert_score = test_expert(env, expert_actor)
    print(f"专家平均回报: {expert_score:.2f}")

    # 采样专家数据
    expert_s, expert_a = sample_expert_data(100, env, expert_actor)
    print(f"专家数据量: {len(expert_s)}")

    # 初始化GAIL
    gail_agent = GAIL(state_dim, hidden_dim, action_dim, lr)

    # 训练参数
    total_iterations = 20000
    batch_size = 64
    test_freq = 200
    test_returns = []

    # 训练循环
    print("\n开始GAIL训练...")
    with tqdm(total=total_iterations) as pbar:
        for i in range(total_iterations):
            # 1. 智能体收集轨迹
            s_batch, a_batch = [], []
            while len(s_batch) < batch_size:
                reset_result = env.reset()
                state = reset_result[0] if isinstance(reset_result, tuple) else reset_result
                done = False
                while not done and len(s_batch) < batch_size:
                    s_batch.append(state)
                    action = gail_agent.take_action(state)
                    a_batch.append(action)
                    step_result = env.step(action)
                    if len(step_result) == 5:
                        next_state, _, terminated, truncated, _ = step_result
                        done = terminated or truncated
                    else:
                        next_state, _, done, _ = step_result
                    state = next_state

            # 2. 随机采样专家数据
            idx = np.random.choice(len(expert_s), batch_size, replace=False)
            s_exp = expert_s[idx]
            a_exp = expert_a[idx]

            # 3. 训练GAIL
            d_loss, p_loss = gail_agent.learn(s_exp, a_exp, s_batch, a_batch)

            # 4. 测试
            if (i + 1) % test_freq == 0:
                test_r = test_agent(gail_agent, env, 5)
                test_returns.append(test_r)
                pbar.set_postfix({
                    "D_loss": f"{d_loss:.3f}",
                    "P_loss": f"{p_loss:.3f}",
                    "Return": f"{test_r:.1f}"
                })
            pbar.update(1)

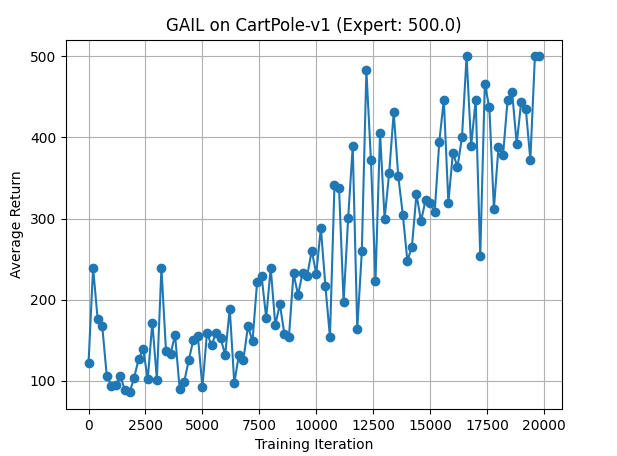

    # 绘图
    plt.plot([i*test_freq for i in range(len(test_returns))], test_returns, marker='o')
    plt.xlabel("Training Iteration")
    plt.ylabel("Average Return")
    plt.title(f"GAIL on {env_name} (Expert: {expert_score:.1f})")
    plt.grid(True)
    plt.show()

    env.close()
