GENERAL DESCRIPTION
The TMI8140 is a DC bidirectional motor driver, suitable for medium and large current motors. The two logic input terminals(IN1/IN2) are
used as the input of PWM control mode to
control the direction of current flow through the
H-bridge, and hence the direction of
rotation of a DC motor. This circuit has good anti-interference, tiny
standby current, ultra-low output internal
resistance, using BCD process, strong
withstand voltage, and strong reverse surge
current capability to release inductive load. The package form of TMI8140 is DFN5*6_15, and is comply with ROHS specifications, and
the lead frame is 100% lead-free.
FEATURES
 H-Bridge DC Motor Driver
 6.8V to 40V Operating Supply Voltage Range
 Low Power Standby Mode
 High Output Current Capability
-DFN5*6_15: 7A DC
 PWM Control Interface
 Rdson(HS+LS): 45~50 mΩ
 Protection Features
-VCC Undervoltage Lockout (UVLO)
-Overcurrent Protection (OCP)
-Thermal Shutdown (TSD)
-Short Protection (short to VM or short to GND)
-Integrated Fast Stop Function
 Package and Footprint: -DFN5*6_15

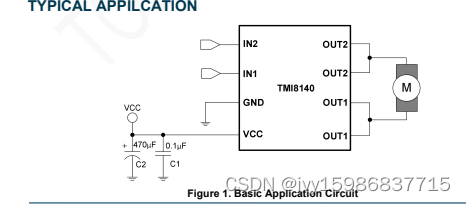

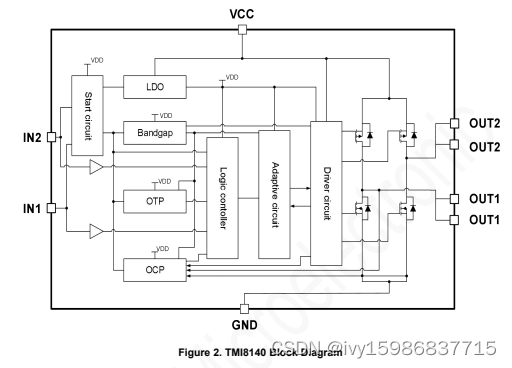

APPLICATIONS
 Brushed DC motors
 Body control module (BCM)
 Door lock
 Inner / Outer door handle
 Massager
 Robots

-----------------------------------------------------------------------------------------------------------------------
