Kubernetes部署JIRA-8.1.0

1. 准备

k8s-master	192.168.0.136
k8s-node01	192.168.0.57
k8s-node02	192.168.0.227
nfs-server	192.168.0.57
mysql	192.168.0.227

2. 部署单机MySQL

• 192.168.0.227 主机执行

编写安装脚本

[root@ecs-ebd0-0003 ~]# vim mysql.sh
#!/bin/bash

yum install libaio -y
mkdir -p /server/package /application /data/mysql/data /data/binlog/mysql-bin
cd /server/package && wget https://downloads.mysql.com/archives/get/p/23/file/mysql-5.7.28-linux-glibc2.12-x86_64.tar.gz
tar -zxvf mysql-5.7.28-linux-glibc2.12-x86_64.tar.gz
mv /server/package/mysql-5.7.28-linux-glibc2.12-x86_64 /application/mysql
yum remove `rpm -qa | grep mariadb` -y
useradd -s /sbin/nologin mysql
echo -e "export PATH=/application/mysql/bin:$PATH" >> /etc/profile
chown -R mysql.mysql /application && chown -R mysql.mysql /data
/application/mysql/bin/mysqld --initialize-insecure --user=mysql --basedir=/application/mysql --datadir=/data/mysql/data

cat > /etc/my.cnf <<EOF
[mysqld]
user=mysql
basedir=/application/mysql
datadir=/data/mysql/data
log_error=/data/mysql/data/mysql.err
log_bin=/data/binlog/mysql-bin
socket=/tmp/mysql.sock
server_id=6
port=3306
[mysql]
socket=/tmp/mysql.sock
EOF

cat >/etc/systemd/system/mysqld.service <<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/etc/my.cnf
LimitNOFILE=5000
EOF

systemctl start mysqld
systemctl enable mysqld

执行脚本

[root@ecs-ebd0-0003 ~]# sh mysql.sh
[root@ecs-ebd0-0003 ~]# sourch /etc/profile

创建jira数据库、用户以及授权

[root@ecs-ebd0-0003 ~]# mysql -uroot -p -e "create database jira default charset utf8mb4;" -e "create user 'jira'@'%' identified by 'jira@123';" -e "grant all on jira.* to 'jira'@'%';"

3.部署JIRA

3.1准备资源

• Kubernetes Cluster

  • namespace

    [root@ecs-ebd0-0001 ~]# kubectl create ns test


  • StorageClass

    [root@ecs-ebd0-0001 ~]# kubectl get sc
    NAME                  PROVISIONER      RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
    managed-nfs-storage   fuseim.pri/ifs   Delete          Immediate           false                  53h


• 镜像

  已准备镜像包：jira-8.1.0.tar.gz
  镜像为 cptactionhank/atlassian-jira-software:8.1.0
  （若有harbor，则可将镜像打包后上传至私有镜像仓库）

  # 将镜像包上传并还原镜像
  [root@ecs-ebd0-0001 ~]# docker load -i jira-8.1.0.tar.gz


• k8s 资源清单

  • 注意namespace的修改，本次以test为例

  [root@ecs-ebd0-0001 ~]# vim jira.yaml

  apiVersion: v1
  kind: Service
  metadata:
    labels:
      app: jira
    name: jira
    namespace: test
  spec:
    ports:
    - port: 8080
      targetPort: 8080
    selector:
      app: jira
  ---
  apiVersion: v1
  kind: Service
  metadata:
    name: jira-headless
    namespace: test
    labels:
      app: jira
  spec:
    ports:
    - port: 8080
      name: jira-server
    clusterIP: None
    selector:
      app: jira
  ---
  apiVersion: apps/v1
  kind: StatefulSet
  metadata:
    labels:
      app: jira
    name: jira
    namespace: test
  spec:
    replicas: 1
    selector:
      matchLabels:
        app: jira
    serviceName: jira-headless
    template:
      metadata:
        labels:
          app: jira
        name: jira
      spec:
        nodeSelector:
          app: jira
        containers:
        - name: jira
          image: cptactionhank/atlassian-jira-software:8.1.0
          resources:
            requests:
              memory: "2Gi"
              cpu: "2000m"
            limits:
              memory: "4Gi"
              cpu: "4000m"
          volumeMounts:
          - name: jira-home
            mountPath: /var/atlassian/jira
    volumeClaimTemplates:
    - metadata:
        name: jira-home
      spec:
        accessModes: [ "ReadWriteMany" ]
        storageClassName: managed-nfs-storage
        resources:
          requests:
            storage: 10Gi
  ---
  apiVersion: traefik.containo.us/v1alpha1
  kind: IngressRoute
  metadata:
    name: jira
    namespace: test
  spec:
    entryPoints:
      - web
    routes:
    - match: Host(`jira.test.com`) && PathPrefix(`/`)
      kind: Rule
      services:
      - name: jira
        port: 8080


3.2创建 k8s 资源

[root@ecs-ebd0-0001 ~]# kubectl apply -f jira.yaml
service/jira created
service/jira-headless created
statefulset.apps/jira created
ingressroute.traefik.containo.us/jira configured

3.3Web 登陆及基本信息配置

• 由于本次实验未做公网DNS解析，所以需要windows本地配置hosts解析才能进行域名访问

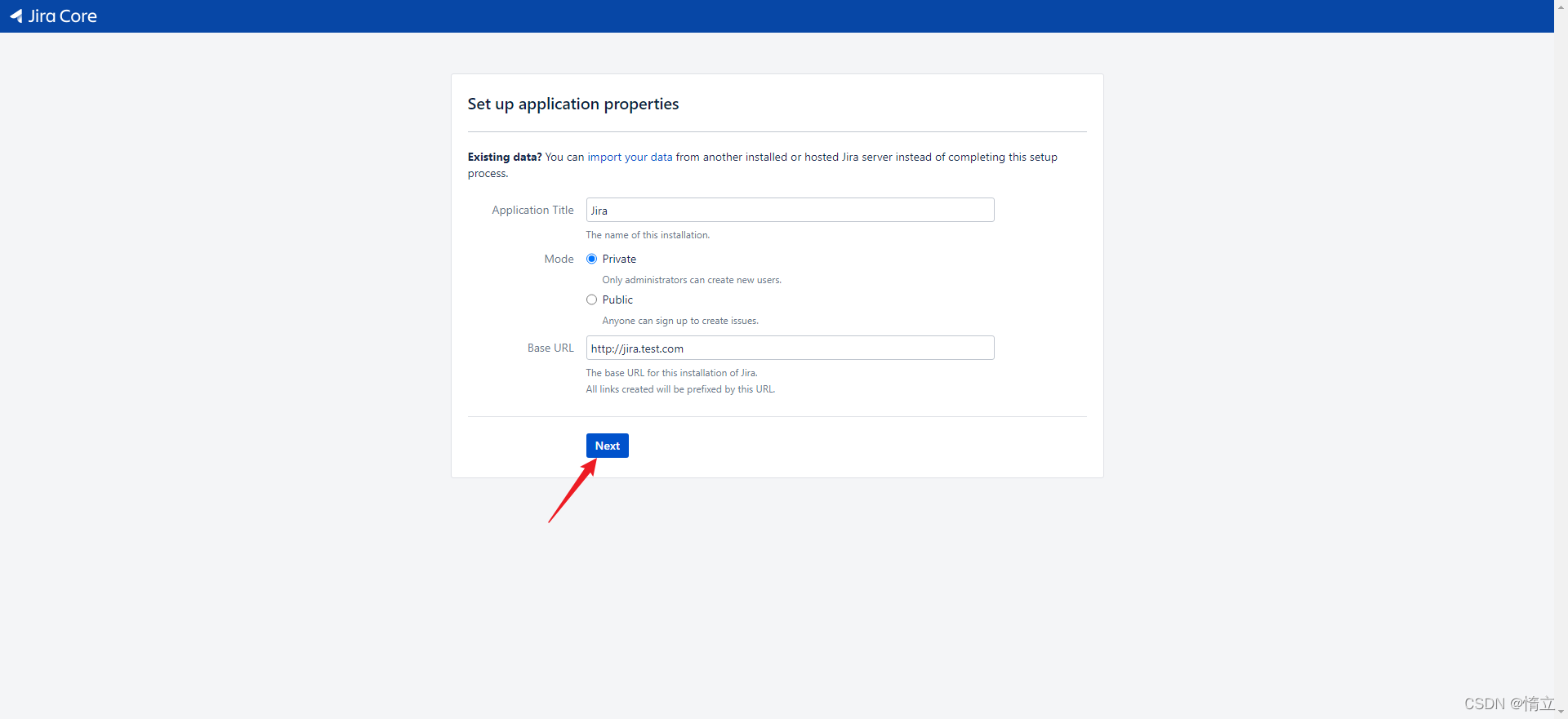

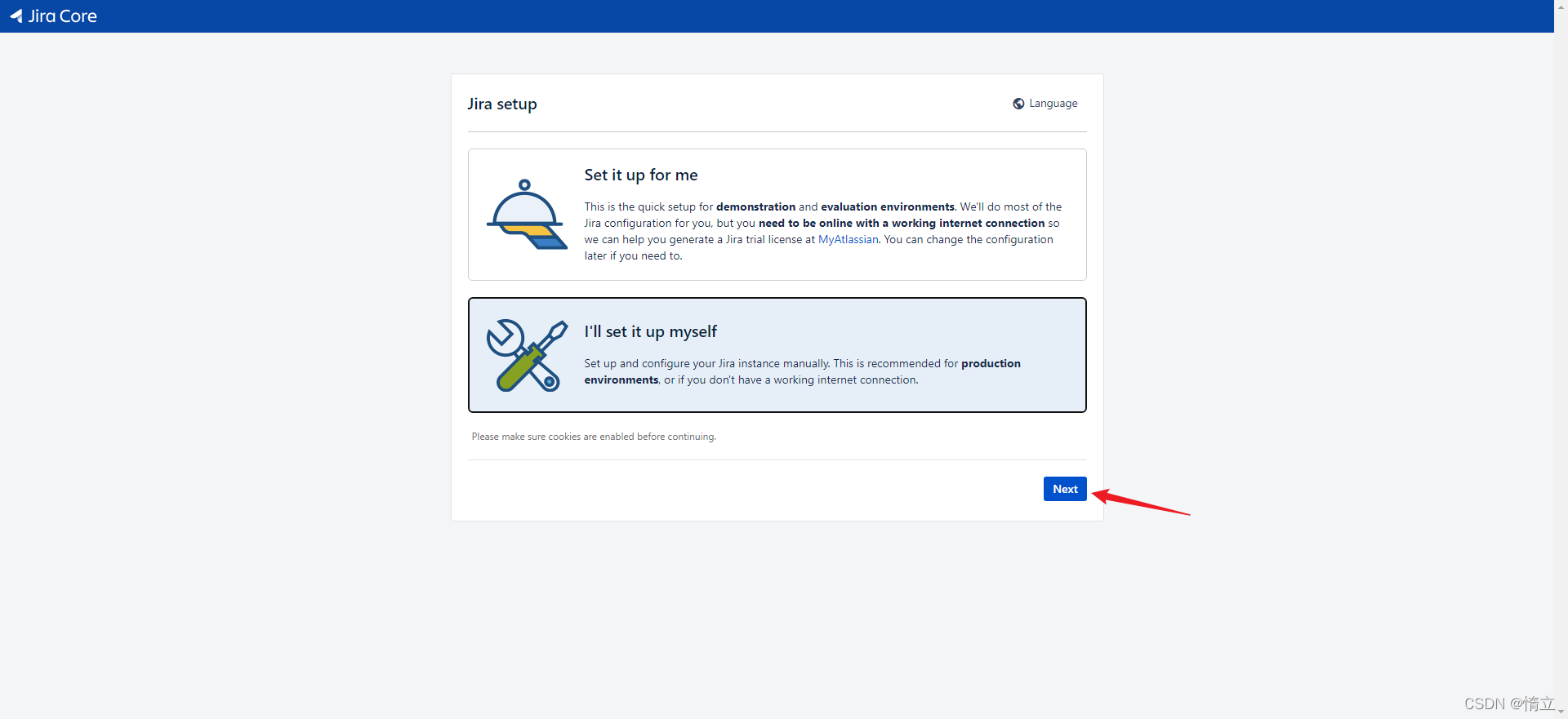

浏览器访问

​ http://jira.test.com

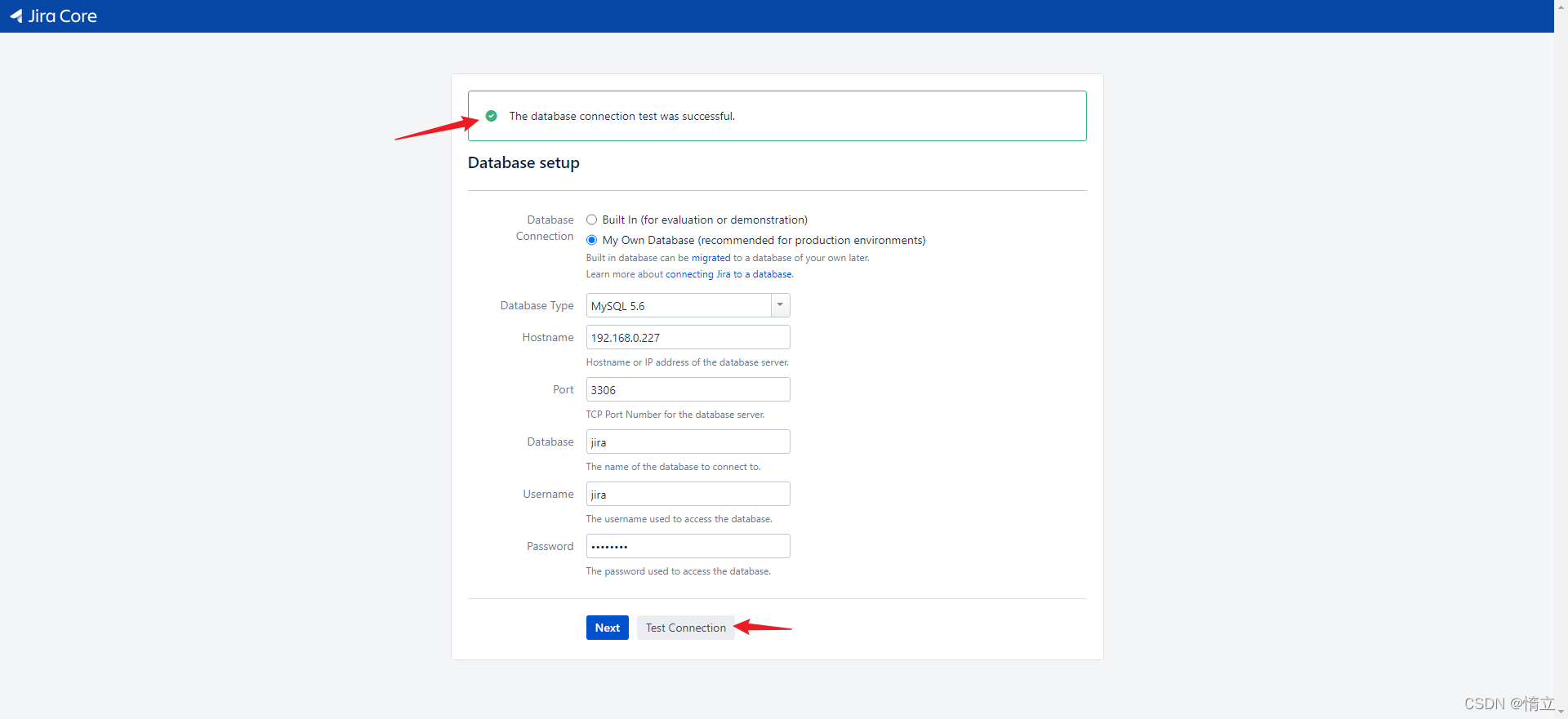

配置数据库连接

• 若想破解实现长期使用，可按照后续发布的破解文章进行操作，然后再继续执行以下步骤
• 破解万不可进行商用，建议自己测试使用

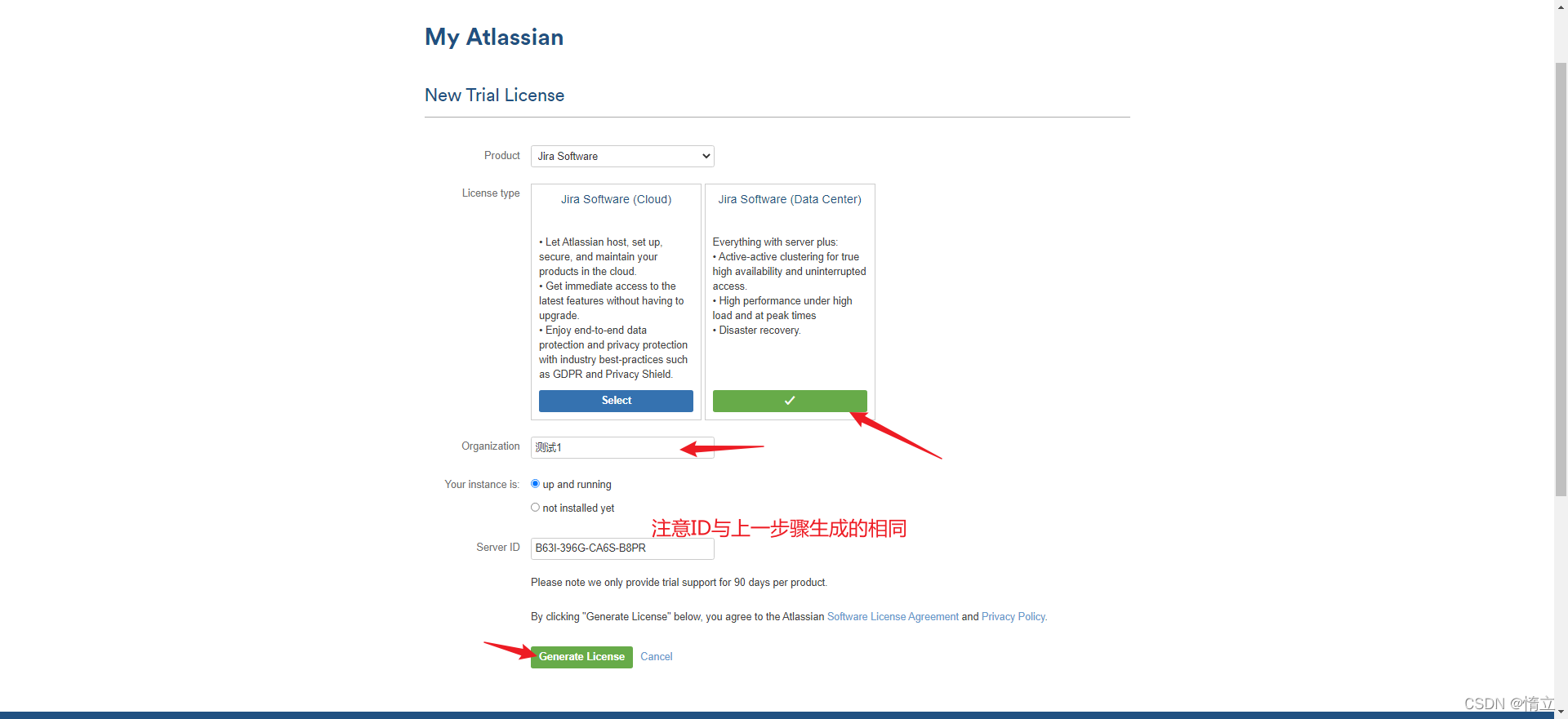

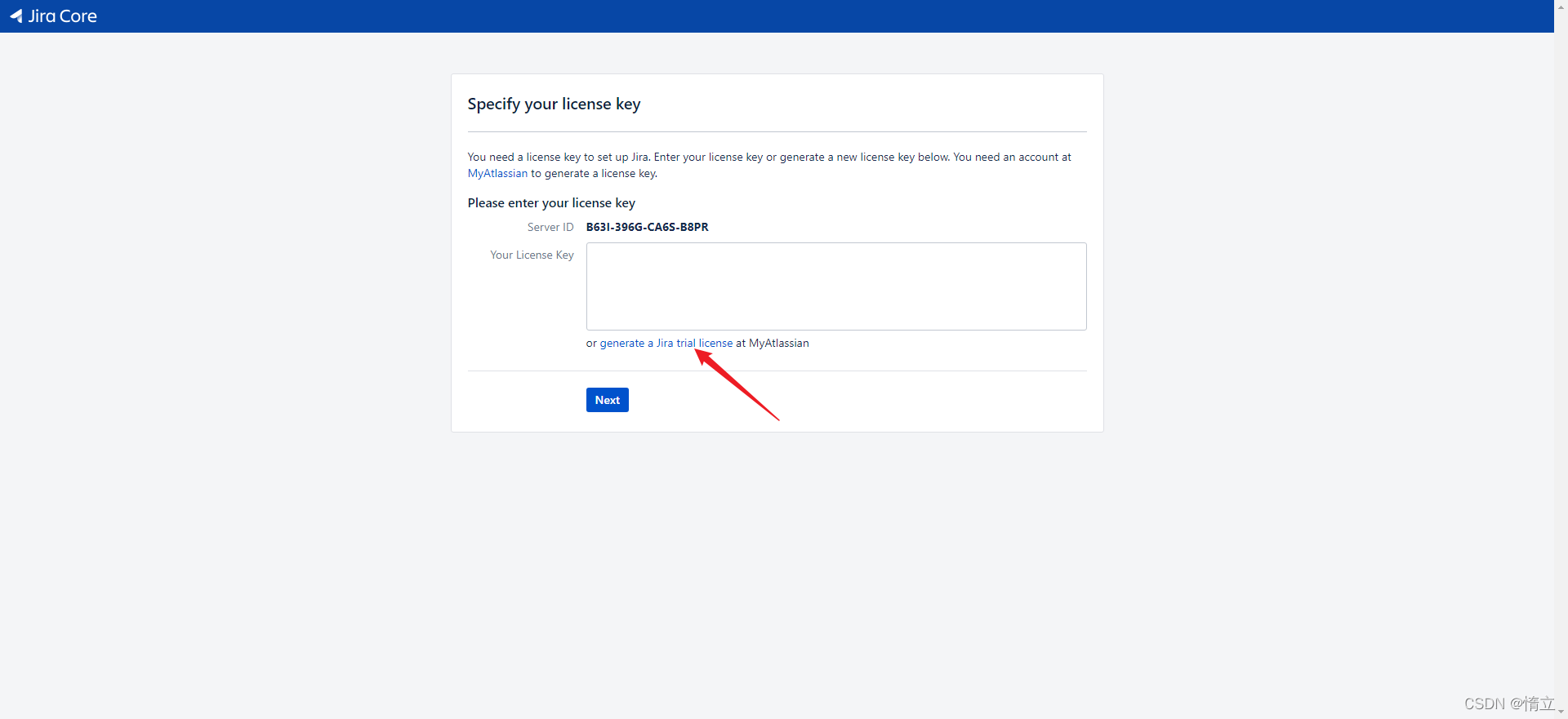

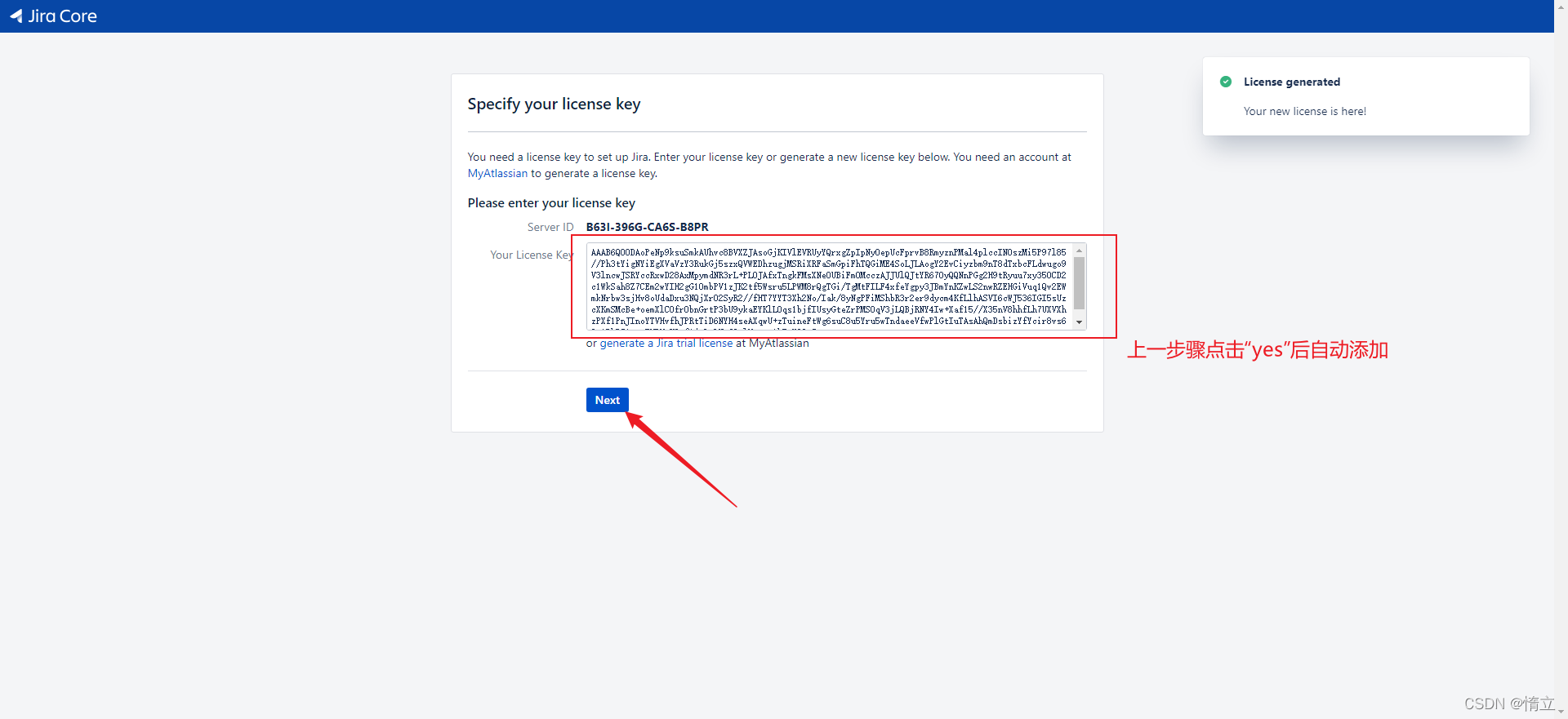

配置 license

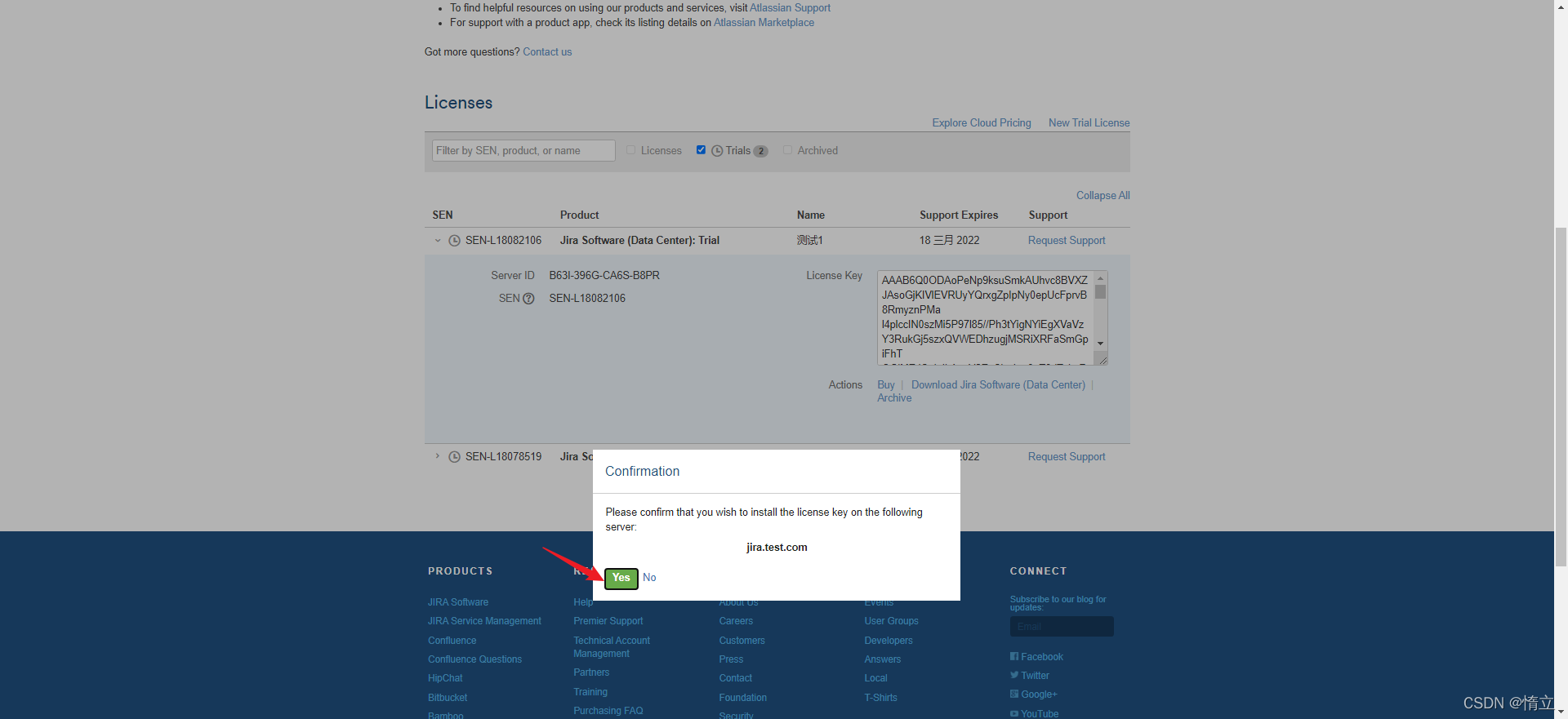

点击 “yes” ，会自动将密钥信息添加至密钥框中

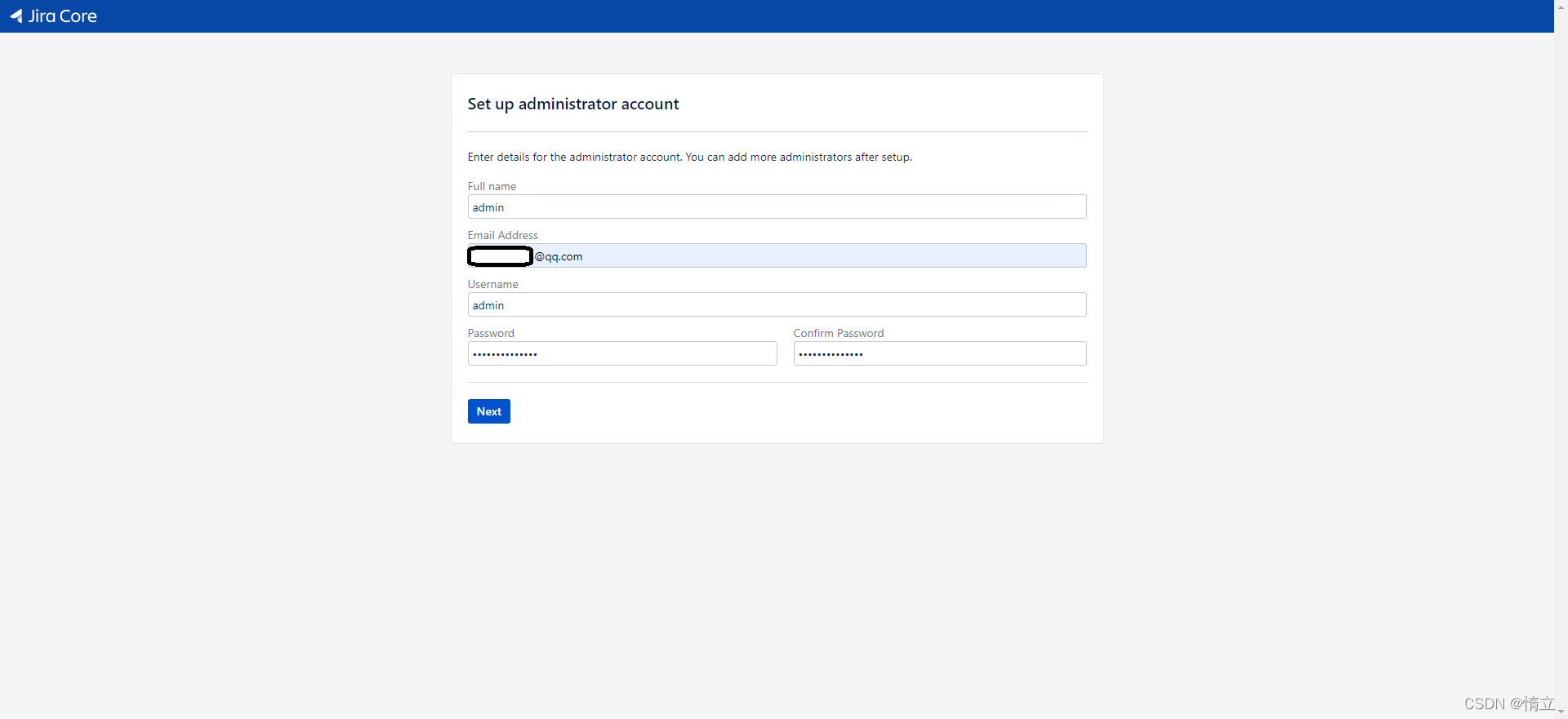

设置管理员账户及密码

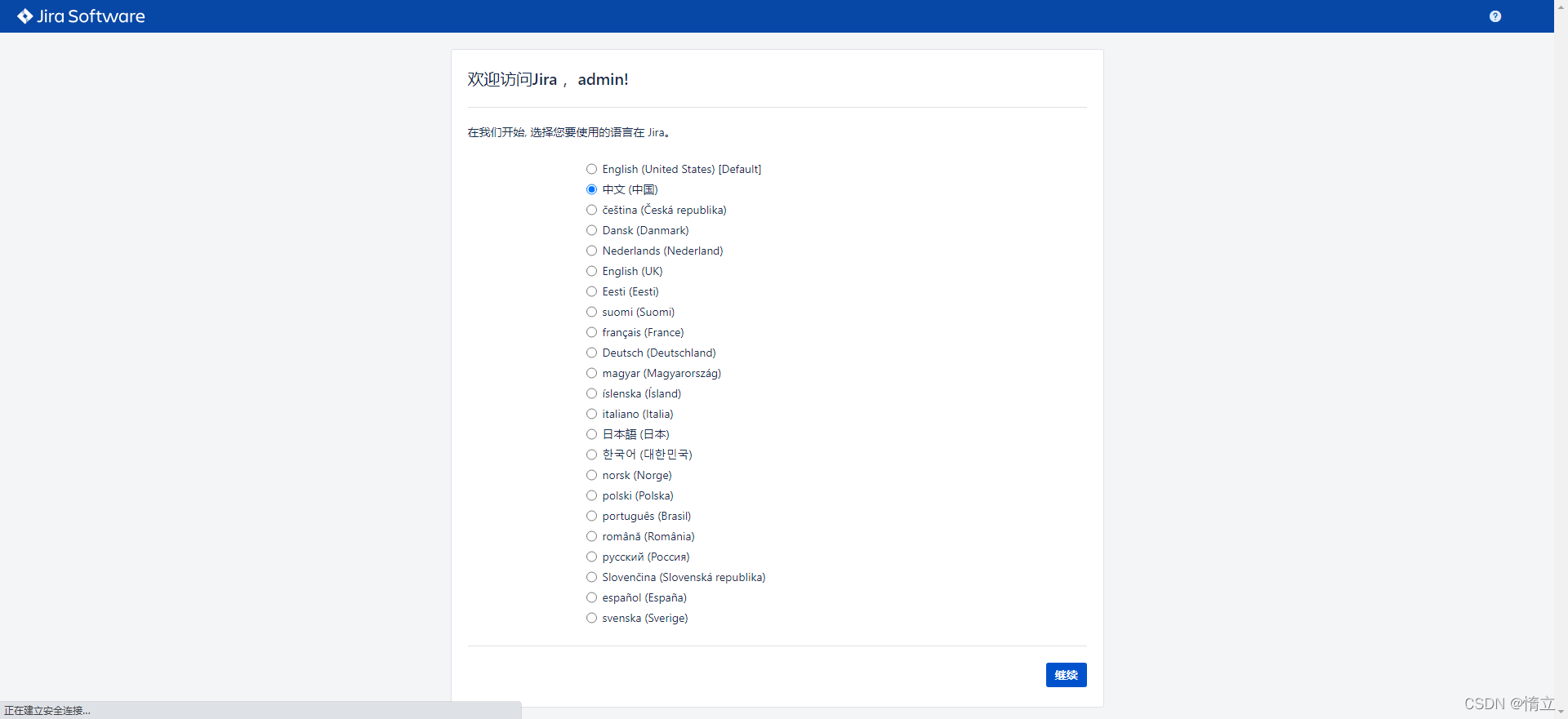

选择后续登陆JIRA默认使用的语言

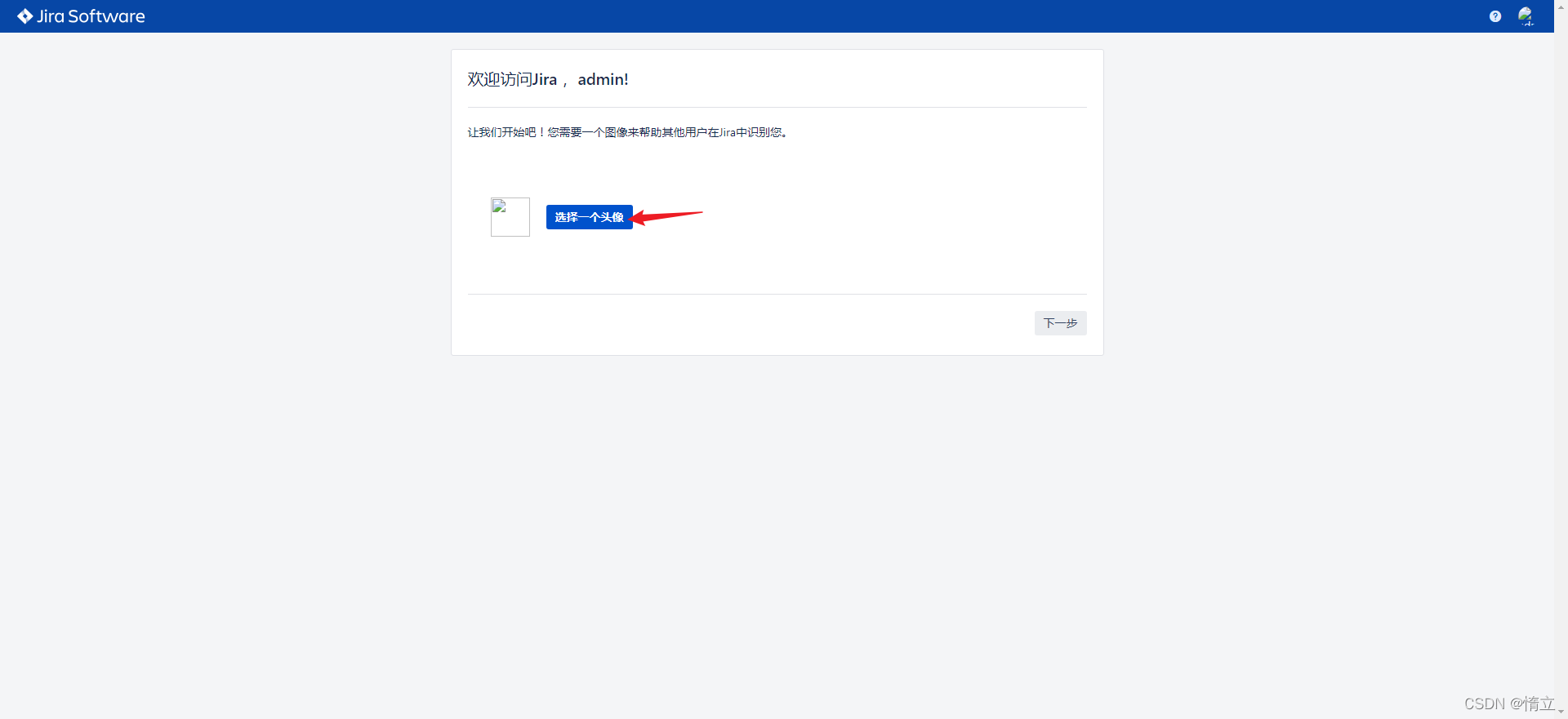

选择头像

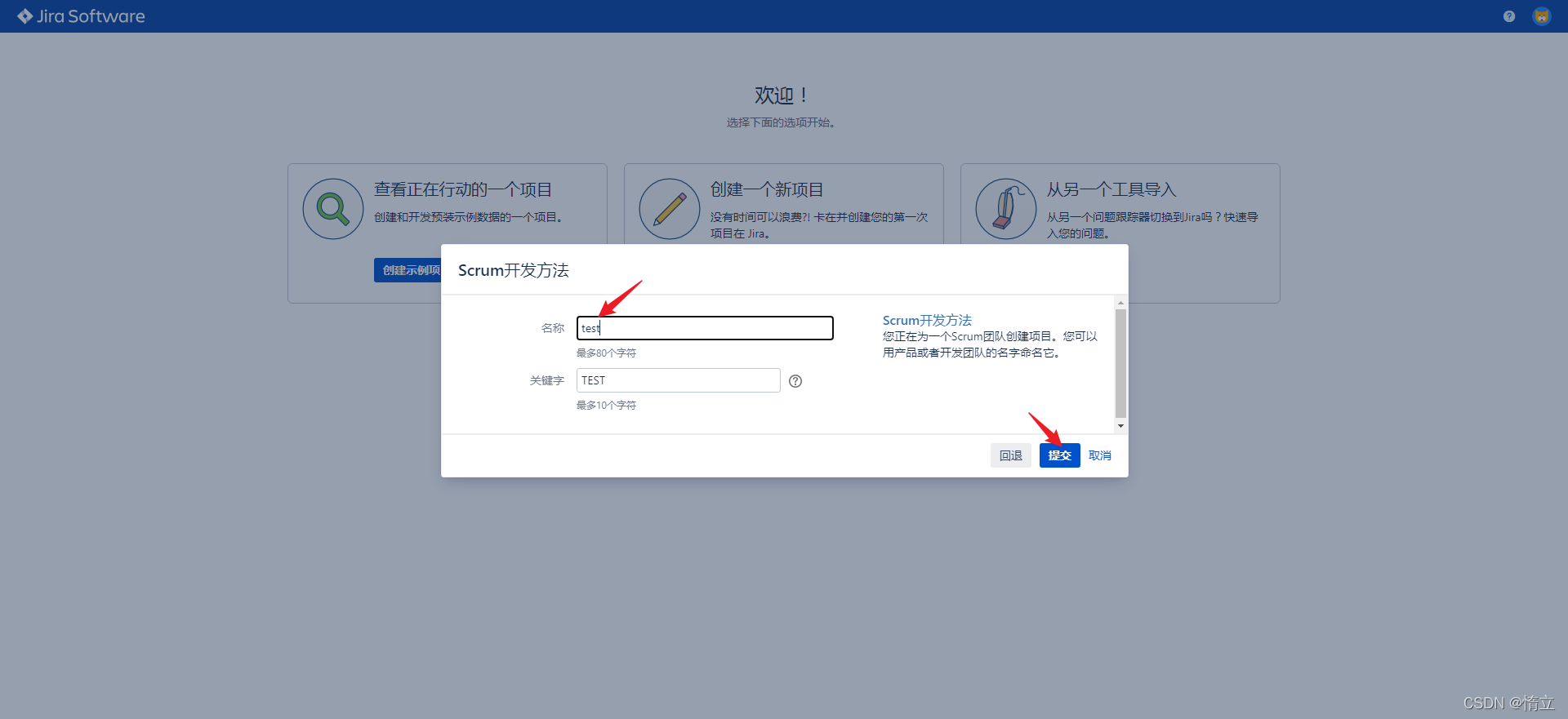

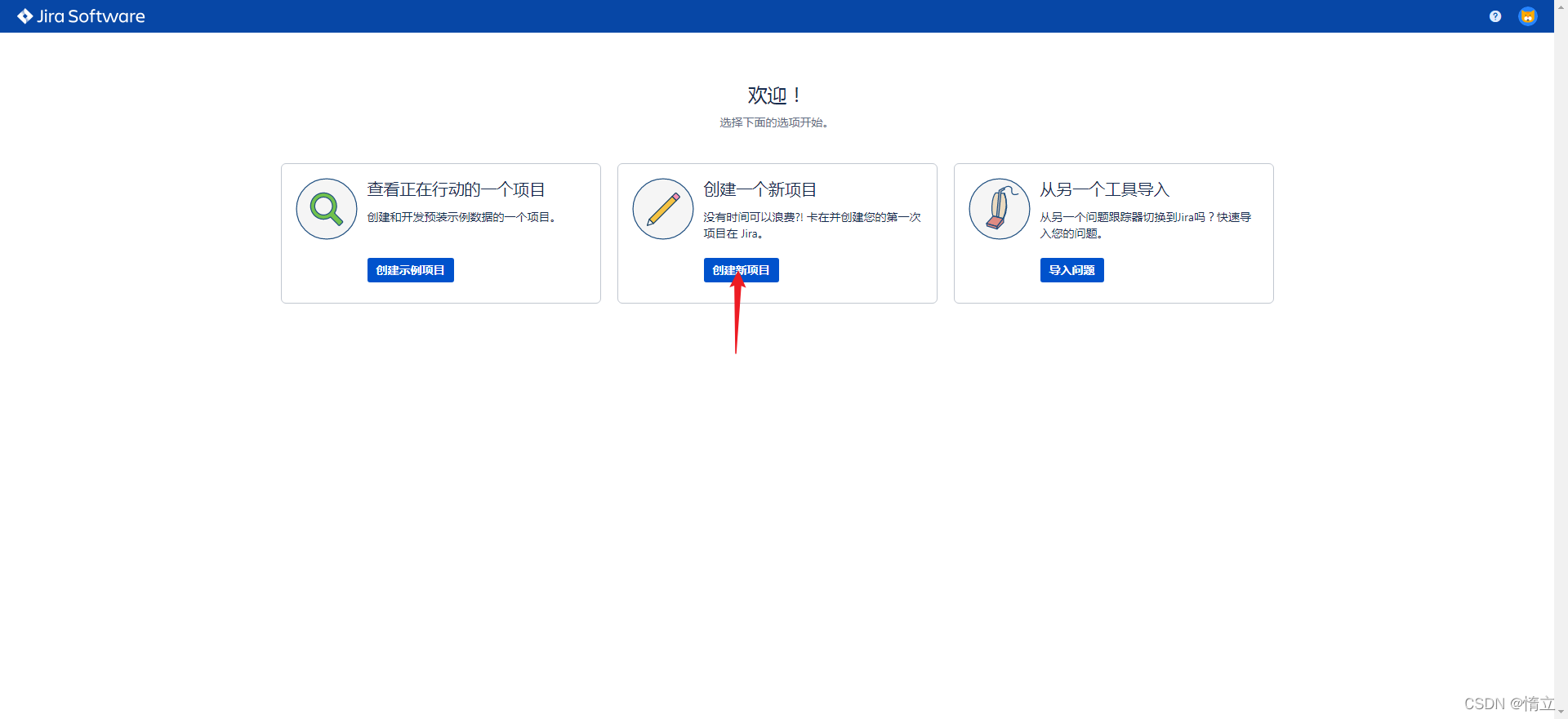

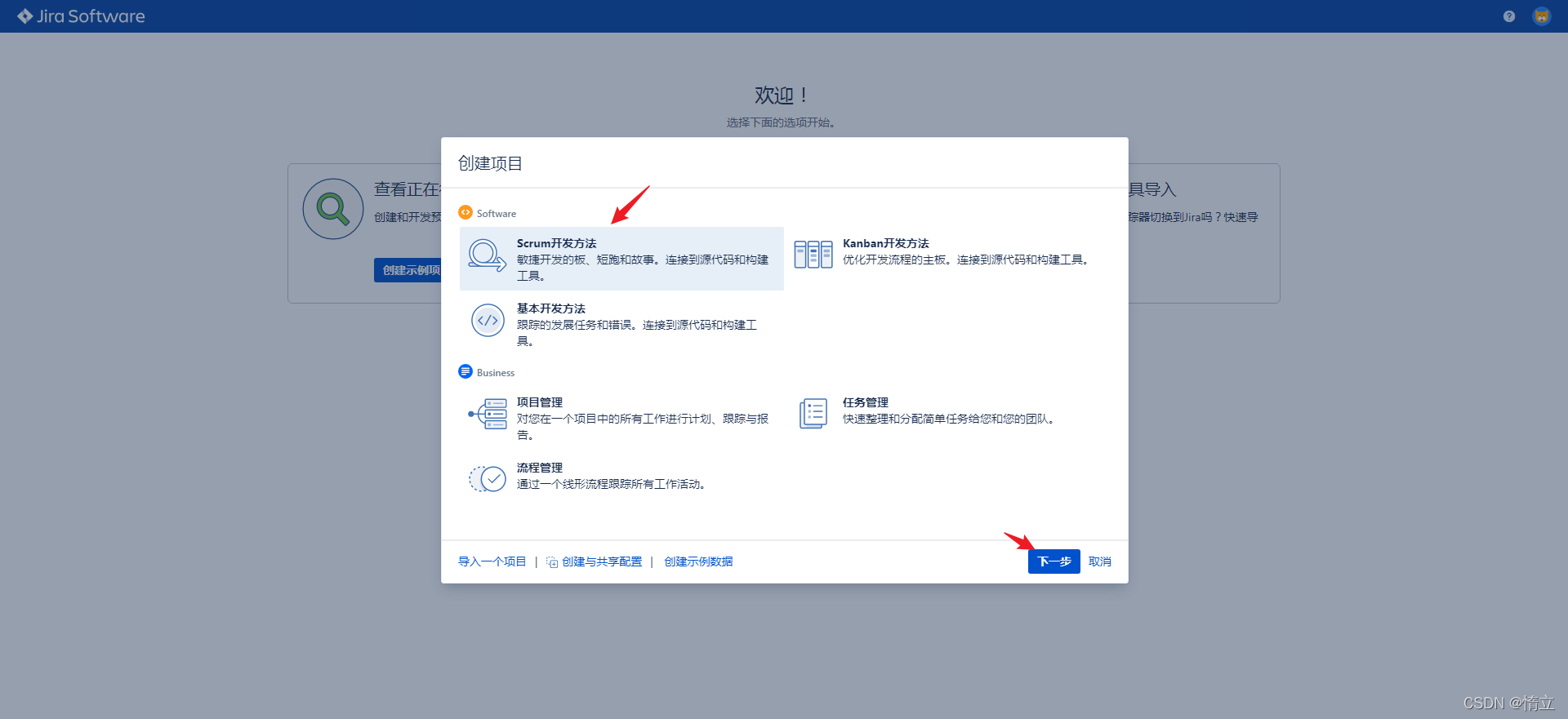

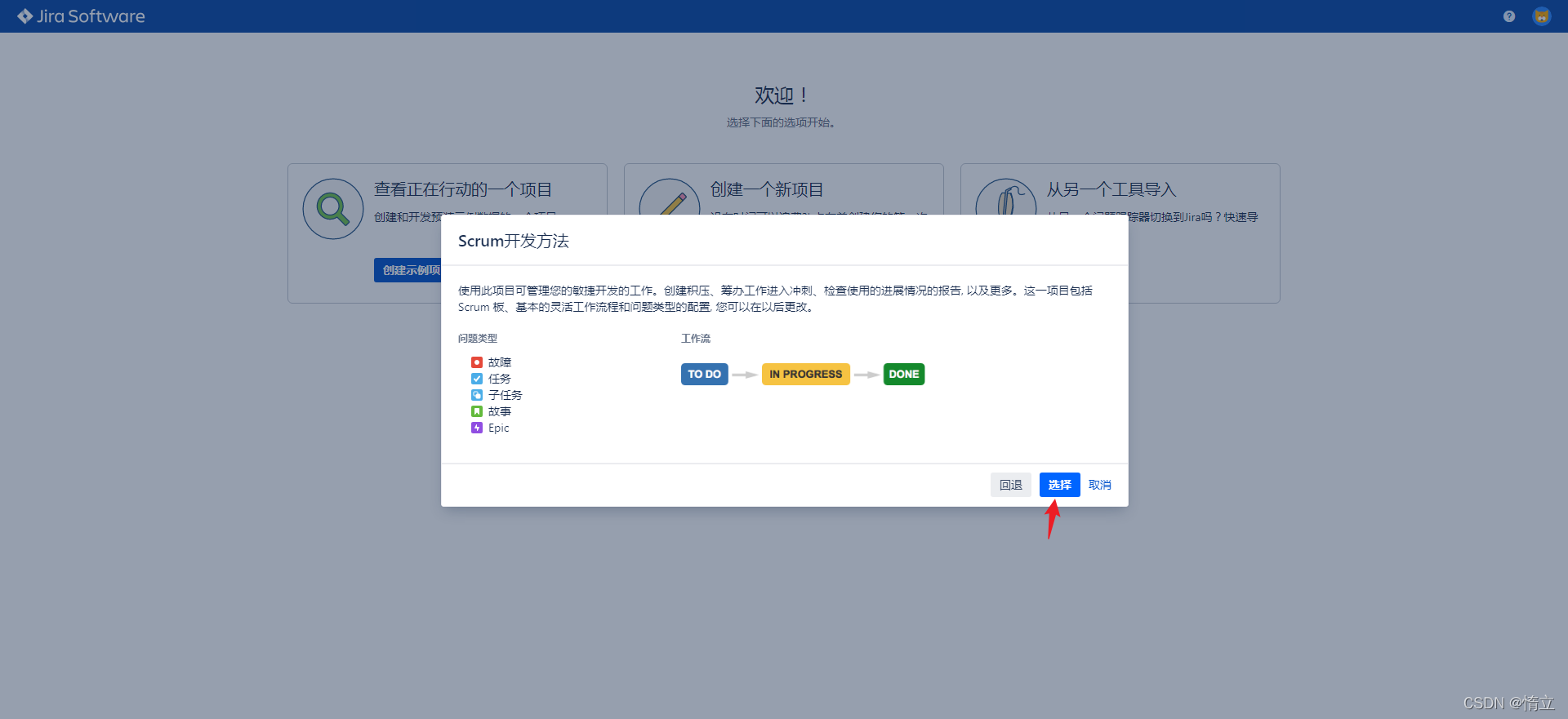

创建一个新项目

至此，基本信息配置完成
后续会发布如何对JIRA进行破解操作

备注：由于每次启动jira都需要连接一个完全空的数据库，因此一旦pod重启，会导致pod重启失败。因此，不建议在k8s中运行，建议二进制或docker部署
