步骤

以go项目为例，python与之对应即可。

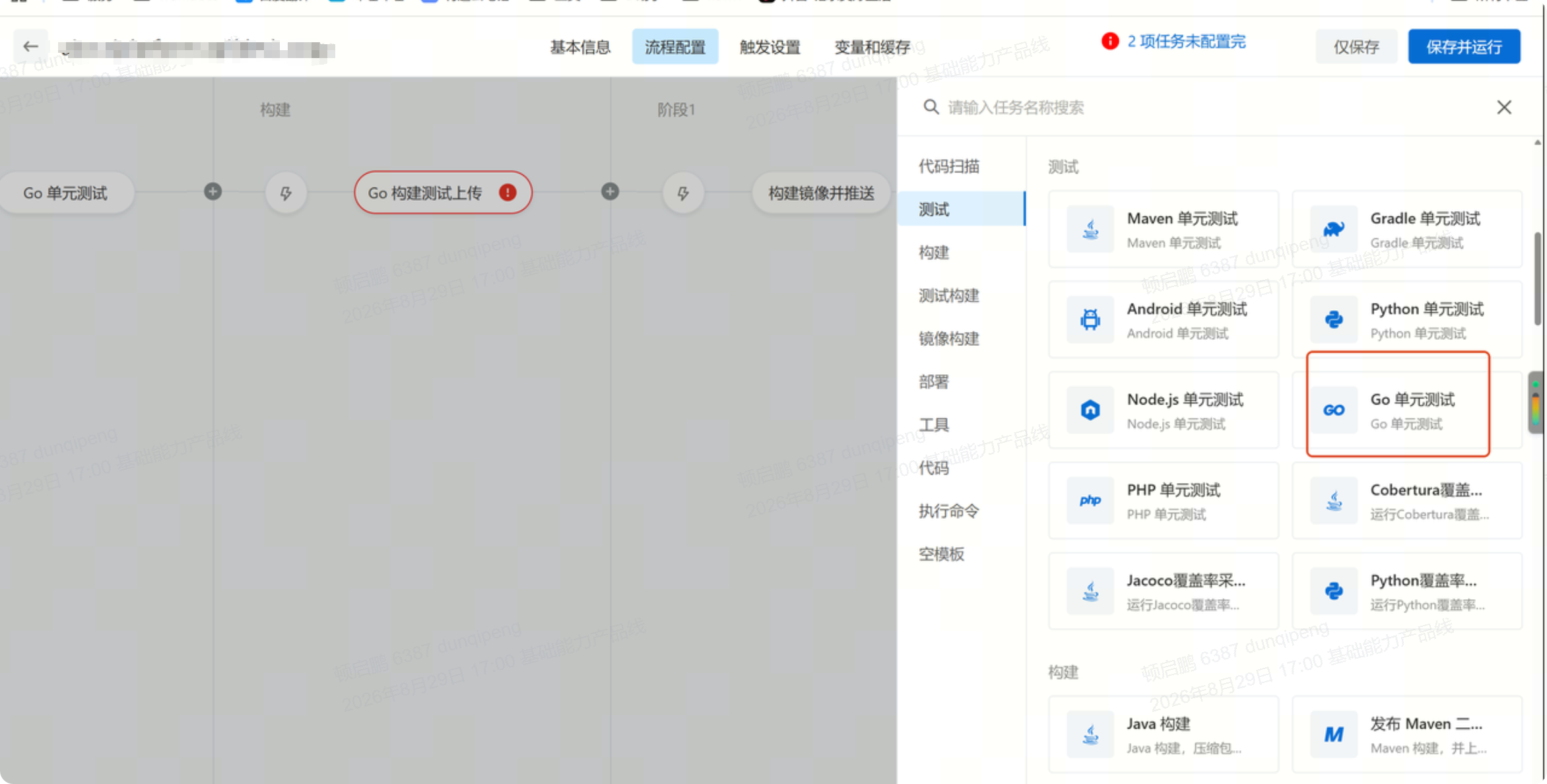

1. 创建单元测试节点

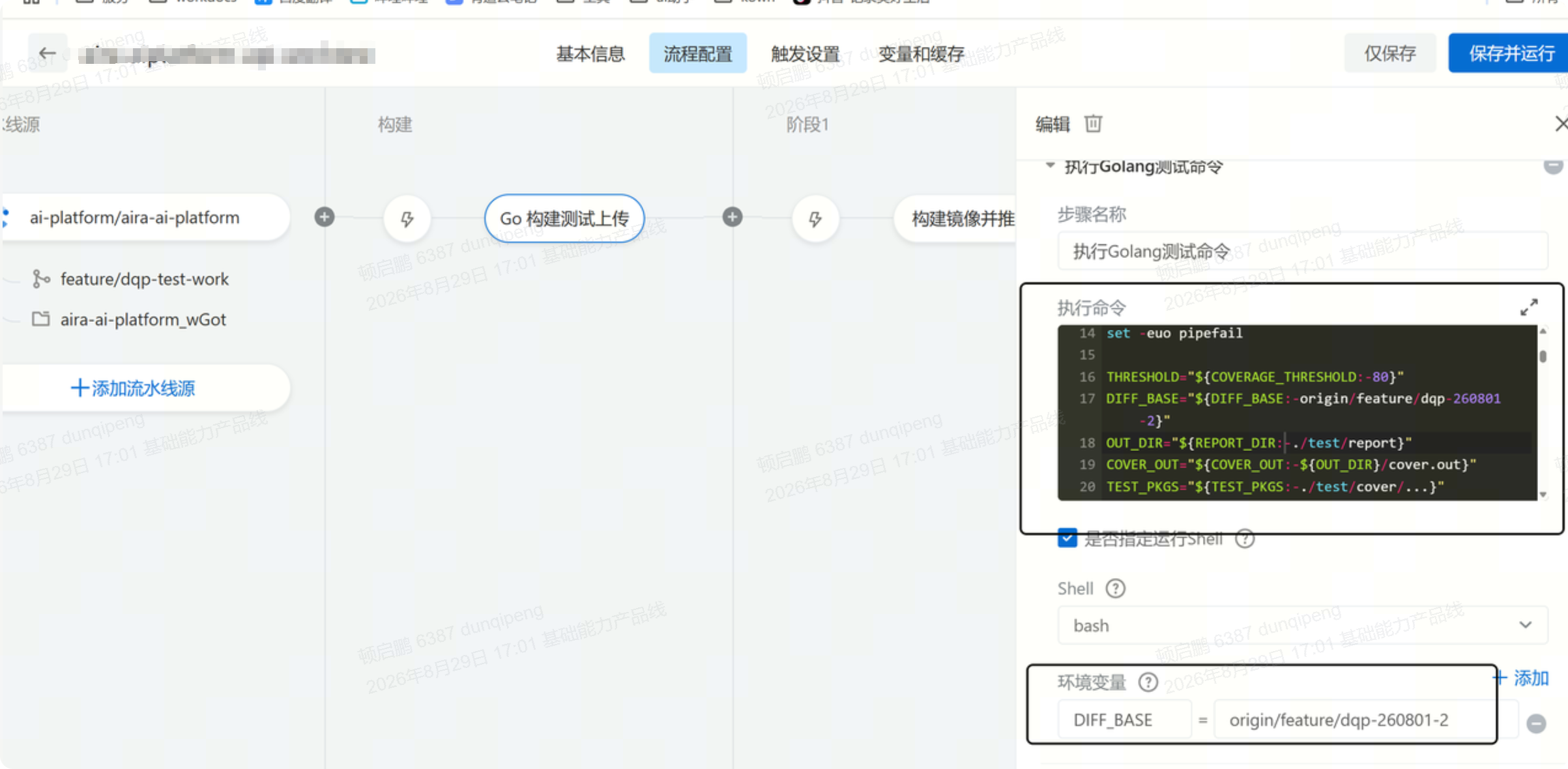

2. 设置脚本与环境变量
   在这里可设置用于单元测试覆盖率的运行shell脚本和shell脚本所需的环境变量。


单元测试shell脚本

go单元测试覆盖率脚本（全量）

#!/usr/bin/env bash
set -eo pipefail
mkdir -p golang-report
go test -v -json -cover   -coverprofile=cover.out ./test/cover/... > ./golang-report/report.jsonl
# 计算总覆盖率并判断是否 >=80%
if [ -f cover.out ]; then
  coverage=$(go tool cover -func=cover.out | awk '/total/ {gsub(/%/,""); print $3}')
  echo "Total coverage: ${coverage}%"
  if (( $(echo "$coverage < 80" | bc -l) )); then
    echo "ERROR: Coverage is below 80%. Pipeline will fail."
    exit 1
  fi
else
  echo "No coverage data generated."
  exit 1
fi

云效默认的构建环境（尤其是 Linux 容器环境）中未预装 bc（Basic Calculator）工具，使用下面的脚本代替

#!/usr/bin/env bash
set -eo pipefail

mkdir -p golang-report
go test -v -json -cover -coverprofile=cover.out ./test/cover/... > ./golang-report/report.jsonl

if [ -f cover.out ]; then
  coverage=$(go tool cover -func=cover.out | awk '/total/ {gsub(/%/,""); print $3}')
  echo "Total coverage: ${coverage}%"

  # 使用 awk 进行浮点比较，避免依赖 bc
  if awk -v cov="$coverage" 'BEGIN { exit (cov >= 80) ? 0 : 1 }'; then
    echo "Coverage meets threshold (>=80%)."
  else
    echo "ERROR: Coverage is below 80%. Pipeline will fail."
    exit 1
  fi
else
  echo "No coverage data generated."
  exit 1
fi

单元测试覆盖率增量脚本

gotest+git+covercheck

原理：go test 生成 cover.out → covercheck 用 git diff 只统计本次新增/修改行的命中率，并与 -min 80 比较 → 脚本再算一遍并打印当前增量覆盖率。
工具：go test/go tool cover（测与全量参考）、git（找变更）、covercheck（增量门禁）、tee（落日志）。

#!/usr/bin/env bash
# =============================================================================
# 云效 Flow：Go 增量覆盖率门禁（工具版，最短）
# 工具：covercheck（只卡变更行覆盖率）
#
# 用法：
#   export DIFF_BASE=origin/master
#   export COVERAGE_THRESHOLD=80
#   bash scripts/yunxiao_coverage_gate_go_tool.sh
#
# 与 yunxiao_coverage_gate.sh（纯 awk 版）互不影响。
# =============================================================================

set -euo pipefail

THRESHOLD="${COVERAGE_THRESHOLD:-80}"
DIFF_BASE="${DIFF_BASE:-origin/feature/dqp-260801-2}"
OUT_DIR="${REPORT_DIR:-./test/report}"
COVER_OUT="${COVER_OUT:-${OUT_DIR}/cover.out}"
# 多个目录之间用空格隔开
COVER_PKGS="${COVER_PKGS:-./test/cover/...}"
TEST_PKGS="${TEST_PKGS:-./test/cover/...}"

mkdir -p "${OUT_DIR}" ./golang-report

echo "[yunxiao] go=$(go version) threshold=${THRESHOLD}% base=${DIFF_BASE}"

# 1) 安装门禁工具（必须装 cmd 子目录，模块根不是 main package）
go install github.com/dr-dobermann/covercheck/cmd/covercheck@latest
export PATH="$(go env GOPATH)/bin:${PATH}"
command -v covercheck >/dev/null 2>&1 || {
  echo "ERROR: covercheck 安装失败，未找到可执行文件"
  exit 2
}

# 2) 确保基线分支可解析（浅克隆时）
if ! git rev-parse --verify "${DIFF_BASE}" >/dev/null 2>&1; then
  BRANCH="${DIFF_BASE#origin/}"
  git fetch --no-tags --depth=2000 origin \
    "+refs/heads/${BRANCH}:refs/remotes/origin/${BRANCH}" || true
  DIFF_BASE="origin/${BRANCH}"
fi

# 3) 跑单测（-json 供云效 UnitTestReport 解析）
# 云效配置：报告类型=Go Test JSON，报告路径=golang-report/report.jsonl
TEST_JSONL=./golang-report/report.jsonl
IFS=',' read -r -a TEST_DIRS <<< "${TEST_PKGS}"
IFS=',' read -r -a COVER_DIRS <<< "${COVER_PKGS}"
echo "单元测试目录: ${TEST_DIRS[@]}"
echo "业务代码目录: ${COVER_DIRS[@]}"
set +e
# shellcheck disable=SC2086
go test -json -count=1 -timeout=15m -covermode=atomic \
  -coverpkg="${COVER_DIRS[@]}" \
  -coverprofile="${COVER_OUT}" "${TEST_DIRS[@]}" \
  > "${TEST_JSONL}" 2>./golang-report/go_test.err.log
TEST_EXIT=$?
set -e

if [[ -s ./golang-report/go_test.err.log ]]; then
  echo "ERROR: go test 失败 (exit=${TEST_EXIT})，详情见 ./golang-report/go_test.err.log,如下:"
  cat ./golang-report/go_test.err.log
  echo "ERROR: go test 失败 (exit=${TEST_EXIT})，详情见 ./golang-report/go_test.err.log, 以上"
fi

if [[ "${TEST_EXIT}" -ne 0 ]]; then
  echo "ERROR: go test 失败 (exit=${TEST_EXIT})，部署已阻断。"
  echo "       详情见 ${TEST_JSONL}"
  exit "${TEST_EXIT}"
fi

echo "[yunxiao] 单元测试 JSON 报告: ${TEST_JSONL} （云效 UnitTestReport 填这个路径）"
echo "[yunxiao] repo total (info): $(go tool cover -func="${COVER_OUT}" | awk '/^total:/{print $3}')"

# 4) 增量覆盖率门禁（日志与单测报告分开，避免覆盖 jsonl）
# - covercheck 低于 -min 时 exit 1，阻断后续部署
REPORT_LOG=./golang-report/diff_coverage_report.log
set +e
covercheck -min "${THRESHOLD}" -base "${DIFF_BASE}" -profiles "${COVER_OUT}" \
  -exclude-paths '_test\.go$,(^|/)vendor/' \
  2>&1 | tee "${REPORT_LOG}"
GATE_EXIT=${PIPESTATUS[0]}
set -e

# 计算并输出当前增量覆盖率（变更可执行行）
MODULE="$(awk '/^module /{print $2; exit}' go.mod)"
DIFF_TMP="${OUT_DIR}/_patch.diff"
CHANGED_TMP="${OUT_DIR}/_changed_lines.txt"
git diff -U0 "${DIFF_BASE}...HEAD" -- "*.go" > "${DIFF_TMP}" 2>/dev/null \
  || git diff -U0 "${DIFF_BASE}" HEAD -- "*.go" > "${DIFF_TMP}" 2>/dev/null \
  || true
awk '
  /^diff --git / {
    file=$4; sub(/^b\//,"",file); skip=0
    if (file ~ /_test\.go$/) skip=1
    if (file ~ /(^|\/)vendor\//) skip=1
    next
  }
  skip { next }
  /^@@ / {
    if (match($0, /\+[0-9]+(,[0-9]+)?/)) {
      chunk=substr($0,RSTART+1,RLENGTH-1)
      split(chunk,a,/,/)
      start=a[1]+0
      count=(a[2]==""?1:a[2]+0)
      if (count<=0) next
      for (n=0;n<count;n++) print file "\t" (start+n)
    }
  }
' "${DIFF_TMP}" > "${CHANGED_TMP}"

PATCH_COV="$(
  awk -v module="${MODULE}" '
    BEGIN { FS="[\t ]+" }
    FNR==NR {
      if (NF<2) next
      f=$1; gsub(/\\/,"/",f); sub(/^\.\//,"",f)
      changed[f,$2+0]=1
      next
    }
    /^mode:/ { next }
    {
      loc=$1; cpos=0
      for (i=length(loc);i>0;i--) if (substr(loc,i,1)==":"){cpos=i;break}
      if (cpos==0) next
      cfile=substr(loc,1,cpos-1)
      gsub(/\\/,"/",cfile)
      pref=module "/"
      if (index(cfile,pref)==1) cfile=substr(cfile,length(pref)+1)
      range=substr(loc,cpos+1); cnt=$3+0
      split(range,r,/[,.]/); sl=r[1]+0; el=r[3]+0
      for (l=sl;l<=el;l++) {
        if (!((cfile,l) in changed)) continue
        key=cfile SUBSEP l
        coverable[key]=1
        if (cnt>0) covered[key]=1
      }
    }
    END {
      total=0; hit=0
      for (k in coverable){ total++; if (k in covered) hit++ }
      if (total==0) print "N/A"
      else printf "%.2f", hit*100.0/total
    }
  ' "${CHANGED_TMP}" "${COVER_OUT}"
)"

echo "[yunxiao] 当前增量单元测试覆盖率: ${PATCH_COV}% （要求 >= ${THRESHOLD}%）"

if [[ "${GATE_EXIT}" -ne 0 ]]; then
  echo "ERROR: 当前增量代码单元测试覆盖率（${PATCH_COV}%）低于要求的 ${THRESHOLD}%，部署已阻断。"
  echo "       详情见 ${REPORT_LOG}"
  exit "${GATE_EXIT}"
fi

echo "OK: 当前增量覆盖率 ${PATCH_COV}% >= ${THRESHOLD}%，允许继续部署。"

说明

1. 在进行增量单元测试时必须找一个基准分支做对比，如shell脚本中的DIFF_BASE，在工作流中可以以环境变量形式设置其值。
2. 必须指定需要测试单元测试模块的路径（包含业务代码和测试代码），如：脚本中的TEST_PKGS，在工作流中可以以环境变量形式设置其值。
3. 必须指定需要测试业务模块的路径（包含业务代码和测试代码），如：脚本中的COVER_PKGS，在工作流中可以以环境变量形式设置其值。
4. 必须指定需要达到的单元测试代码覆盖率的标准，如：脚本中的THRESHOLD，在工作流中可以以环境变量形式设置其值。

Python

原理与go的类似，只是使用的单元测试工具因语言不同而已。

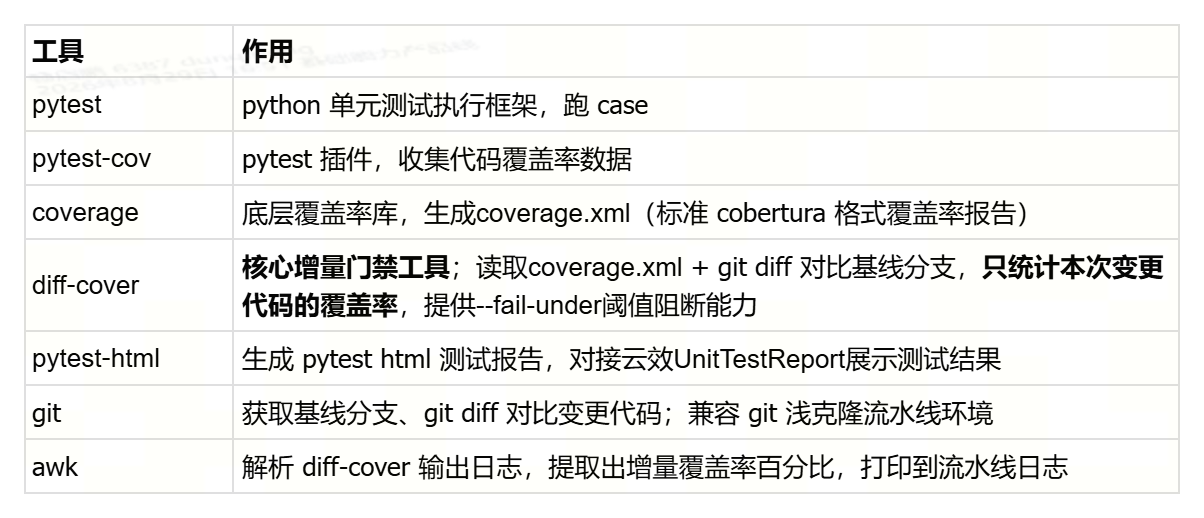

整体流程：环境准备 → pip 安装依赖 → 处理 git 浅克隆 → 执行 pytest 单元测试生成覆盖率 xml → diff‑cover 做增量覆盖率校验 → awk 提取覆盖率数值 → 判断阈值阻断 / 放行流水线

#!/usr/bin/env bash
# =============================================================================
# 云效 Flow：Python 增量覆盖率门禁（工具版）
# 工具：pytest-cov + diff-cover（只卡变更行覆盖率 >= 阈值）
#
# 对齐 yunxiao_coverage_gate_go_tool.sh：
#   - 安装工具 → 跑单测 → 增量门禁 → 打印当前增量覆盖率 → 不达标阻断
#
# 用法：
#   export DIFF_BASE=origin/master
#   export COVERAGE_THRESHOLD=80
#   export COV_SOURCE=src
#   export TEST_PATHS=tests
#   bash scripts/yunxiao_coverage_gate_python_tool.sh
#
# 与 yunxiao_coverage_gate_python.sh（纯 awk 版）互不影响。
# =============================================================================

set -euo pipefail

THRESHOLD="${COVERAGE_THRESHOLD:-80}"
DIFF_BASE="${DIFF_BASE:-origin/feature/dqp-work-test}"
OUT_DIR="${REPORT_DIR:-./test/report}"
COVER_XML="${COVER_XML:-${OUT_DIR}/coverage.xml}"
# ./python-report/diff_coverage_report.log
REPORT_LOG="${REPORT_LOG:-${OUT_DIR}/diff_coverage_report.log}"
# 多个目录之间用,隔开
COV_SOURCE="${COV_SOURCE:-./test/cover}"
# tests
TEST_PATHS="${TEST_PATHS:-./test/cover}"
PYTEST_ARGS="${PYTEST_ARGS:--q}"

if [[ -z "${PYTHON_BIN:-}" ]]; then
  if command -v python3 >/dev/null 2>&1; then
    PYTHON_BIN=python3
  else
    PYTHON_BIN=python
  fi
fi

mkdir -p "${OUT_DIR}" ./python-report


IFS=',' read -r -a TEST_DIRS <<< "${TEST_PATHS}"

echo "[yunxiao] python=$(${PYTHON_BIN} --version 2>&1) threshold=${THRESHOLD}% base=${DIFF_BASE}"
echo "[yunxiao] cov_source=${COV_SOURCE} test_paths=${TEST_DIRS[@]}"

# ---------- 1) 安装门禁工具 ----------
# 说明：不要用 pip -q。静默安装时云效日志会长时间无输出，看起来像“卡住”。
# 云效环境访问 PyPI 可能较慢，默认走阿里云镜像（可用 PIP_INDEX_URL 覆盖）。
PIP_INDEX_URL="${PIP_INDEX_URL:-https://mirrors.aliyun.com/pypi/simple/}"
PIP_TRUSTED_HOST="${PIP_TRUSTED_HOST:-mirrors.aliyun.com}"
echo "[yunxiao] pip installing pytest/pytest-cov/coverage/diff-cover/pytest-html ..."
echo "[yunxiao] pip index: ${PIP_INDEX_URL}"
${PYTHON_BIN} -m pip install \
  --disable-pip-version-check \
  -i "${PIP_INDEX_URL}" \
  --trusted-host "${PIP_TRUSTED_HOST}" \
  pytest pytest-cov coverage diff-cover pytest-html
echo "[yunxiao] pip install done."
if ! ${PYTHON_BIN} -c 'import diff_cover' >/dev/null 2>&1; then
  echo "ERROR: diff-cover 安装失败"
  exit 2
fi
# 使用 python -m 调用，避免云效 PATH 找不到 scripts 目录
DIFF_COVER=(${PYTHON_BIN} -m diff_cover.diff_cover_tool)

# ---------- 2) 确保基线分支可解析（浅克隆时） ----------
if ! git rev-parse --verify "${DIFF_BASE}" >/dev/null 2>&1; then
  BRANCH="${DIFF_BASE#origin/}"
  git fetch --no-tags --depth=200 origin \
    "+refs/heads/${BRANCH}:refs/remotes/origin/${BRANCH}" || true
  DIFF_BASE="origin/${BRANCH}"
fi
echo "[yunxiao] using DIFF_BASE=${DIFF_BASE}"

# ---------- 3) 组装 --cov ----------
COV_ARGS=()
IFS=',' read -r -a _ARR <<< "${COV_SOURCE}"
for s in "${_ARR[@]}"; do
  s="$(echo "${s}" | sed 's/^[[:space:]]*//;s/[[:space:]]*$//')"
  [[ -n "${s}" ]] && COV_ARGS+=(--cov="${s}")
done
[[ ${#COV_ARGS[@]} -eq 0 ]] && COV_ARGS=(--cov=.)


# ---------- 4) 跑单元测试 ----------
# - coverage html  → ${OUT_DIR}/htmlcov/index.html （覆盖率浏览，不是云效 UnitTestReport）
# - pytest-html    → ${OUT_DIR}/pytest_report.html （云效 UnitTestReport / Python-Pytest 用这个）
PYTEST_HTML="${OUT_DIR}/pytest_report.html"
set +e
# shellcheck disable=SC2086
${PYTHON_BIN} -m pytest "${TEST_DIRS[@]}" \
  "${COV_ARGS[@]}" \
  --cov-report="term" \
  --cov-report="xml:${COVER_XML}" \
  --cov-report="html:${OUT_DIR}/htmlcov" \
  --html="${PYTEST_HTML}" \
  --self-contained-html \
  ${PYTEST_ARGS} \
  2>&1 | tee ./python-report/pytest.log
TEST_EXIT=${PIPESTATUS[0]}
set -e

if [[ "${TEST_EXIT}" -ne 0 ]]; then
  echo "ERROR: pytest 失败 (exit=${TEST_EXIT})，部署已阻断。"
  exit "${TEST_EXIT}"
fi

if [[ ! -f "${COVER_XML}" ]]; then
  echo "ERROR: 未生成覆盖率文件 ${COVER_XML}"
  exit 2
fi

echo "[yunxiao] 云效 UnitTestReport(reportPath) 请填: ${PYTEST_HTML}"
echo "[yunxiao] 覆盖率 HTML（仅浏览）: ${OUT_DIR}/htmlcov/index.html"

# ---------- 5) diff-cover：只卡本次变更行覆盖率 ----------
# --fail-under：低于阈值 exit 1
# --compare-branch：相对基线做 diff
# 注意：--exclude 后跟多个模式时不要写 --exclude=xxx，否则只有第一个生效，其余会被当成非法参数
set +e
"${DIFF_COVER[@]}" "${COVER_XML}" \
  --compare-branch="${DIFF_BASE}" \
  --fail-under="${THRESHOLD}" \
  --exclude "*/tests/*" "*/test_*.py" "*_test.py" "*/conftest.py" \
  2>&1 | tee "${REPORT_LOG}"
GATE_EXIT=${PIPESTATUS[0]}
set -e

# ---------- 6) 解析并输出当前增量覆盖率 ----------
# diff-cover 新旧格式兼容：
#   新：Coverage: 100%（Total: 58 lines 是行数，不是百分比）
#   旧：Total: 85% / Diff Coverage: 85%
PATCH_COV="$(
  awk '
    {
      # 优先匹配新版汇总行 Coverage: 100%
      if (match($0, /^[[:space:]]*Coverage:[[:space:]]*[0-9]+(\.[0-9]+)?%/)) {
        s = substr($0, RSTART, RLENGTH)
        if (match(s, /[0-9]+(\.[0-9]+)?/)) last = substr(s, RSTART, RLENGTH)
      # 兼容旧版 Total: 85% / Diff Coverage: 85%（排除 Total: 58 lines）
      } else if (match($0, /(Total|Diff Coverage)[: ]+[0-9]+(\.[0-9]+)?%/)) {
        s = substr($0, RSTART, RLENGTH)
        if (match(s, /[0-9]+(\.[0-9]+)?/)) last = substr(s, RSTART, RLENGTH)
      } else if (match($0, /[0-9]+(\.[0-9]+)?%.*covered/)) {
        s = substr($0, RSTART, RLENGTH)
        if (match(s, /[0-9]+(\.[0-9]+)?/)) last = substr(s, RSTART, RLENGTH)
      }
    }
    END { if (last != "") print last; else print "N/A" }
  ' "${REPORT_LOG}"
)"

echo "[yunxiao] 当前增量单元测试覆盖率: ${PATCH_COV}% （要求 >= ${THRESHOLD}%）"

if [[ "${GATE_EXIT}" -ne 0 ]]; then
  echo "ERROR: 当前增量代码单元测试覆盖率（${PATCH_COV}%）低于要求的 ${THRESHOLD}%，部署已阻断。"
  echo "       详情见 ${REPORT_LOG}"
  exit "${GATE_EXIT}"
fi

echo "OK: 当前增量覆盖率 ${PATCH_COV}% >= ${THRESHOLD}%，允许继续部署。"

说明

可通过环境变量传入：
DIFF_BASE：对比的基线分支，比如origin/master
COVERAGE_THRESHOLD：增量覆盖率阈值，默认 80
COV_SOURCE：要统计覆盖率业务源码目录，支持英文逗号,分割多目录
TEST_PATHS：pytest 测试用例目录,支持英文逗号,分割多目录

官网参考

https://help.aliyun.com/zh/yunxiao/user-guide/scenario-example-developing-sonarqube-scanning-steps-with-redlines
