vl6180距离传感器的idf代码

m0_57870458

72人浏览 · 2026-01-19 11:35:29

m0_57870458 · 2026-01-19 11:35:29 发布

vl6180是一款激光距离传感器，stm32、arduino版的代码资料在网上一直都很丰富，但是基于esp_idf的代码却几乎没有，为了将vl6180移植至idf，我只能自己修改源码，经过测试，已确定移植成功，用的是新版的i2c_master驱动，现将代码分享出来，有需要的自取。

下载链接：https://gitee.com/Lelin_star/vl6180_idf

源文件Adafruit_VL6180X.c

//Adafruit_VL6180X.c
#include "Adafruit_VL6180X.h"
#include "driver/i2c_master.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_timer.h"
#include "esp_err.h"
#include "esp_log.h"
#include "esp_check.h"
//2025.1.16测试成功
// 内部函数声明
static void load_settings(vl6180x_dev_t* dev);
static uint16_t read16(vl6180x_dev_t* dev, uint16_t register_address);
static uint8_t read8(vl6180x_dev_t* dev, uint16_t register_address);
static void write16(vl6180x_dev_t* dev, uint16_t register_address, uint16_t data);
static void write8(vl6180x_dev_t* dev, uint16_t register_address, uint8_t data);

bool vl6180x_init(vl6180x_dev_t* dev, uint8_t i2c_addr) {
    if (dev == NULL) {
        ESP_LOGE("VL6180X", "Device handle is NULL");
        return false;
    }

    // 初始化设备结构体
    dev->i2c_addr = i2c_addr;
    dev->bus_handle = NULL;
    dev->dev_handle = NULL;
    dev->initialized = false;

    // 初始化I2C主总线
    i2c_master_bus_config_t bus_config = {
        .i2c_port = I2C_NUM_1,
        .sda_io_num = CONFIG_SDA_GPIO,
        .scl_io_num = CONFIG_SCL_GPIO,
        .clk_source = I2C_CLK_SRC_DEFAULT,
        .glitch_ignore_cnt = 7,
        .flags.enable_internal_pullup = true,
    };

    esp_err_t ret = i2c_new_master_bus(&bus_config, &dev->bus_handle);
    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "I2C Bus Init Failed: %s", esp_err_to_name(ret));
        return false;
    }

    // 添加设备到总线
    i2c_device_config_t dev_config = {
        .dev_addr_length = I2C_ADDR_BIT_LEN_7,
        .device_address = dev->i2c_addr,  // 修正：使用正确的成员名
        .scl_speed_hz = 100000,
    };

    ret = i2c_master_bus_add_device(dev->bus_handle, &dev_config, &dev->dev_handle);
    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "I2C Device Add Failed: %s", esp_err_to_name(ret));
        i2c_del_master_bus(dev->bus_handle);
        dev->bus_handle = NULL;
        return false;
    }

    // 检查设备标识符
    if (read8(dev, VL6180X_REG_IDENTIFICATION_MODEL_ID) != 0xB4) {
        ESP_LOGE("VL6180X", "Model ID Mismatch");
        vl6180x_cleanup(dev);
        return false;
    }

    // 如果是新设备，加载设置
    if (read8(dev, VL6180X_REG_SYSTEM_FRESH_OUT_OF_RESET)&0x01) {
        load_settings(dev);
        ESP_LOGI("VL6180X", "加载设置");
        write8(dev, VL6180X_REG_SYSTEM_FRESH_OUT_OF_RESET, 0x00);
    }

    dev->initialized = true;
    ESP_LOGI("VL6180X", "VL6180X initialized successfully at address 0x%02X", dev->i2c_addr);
    return true;
}

void vl6180x_cleanup(vl6180x_dev_t* dev) {
    if (dev == NULL) return;

    if (dev->dev_handle != NULL) {
        i2c_master_bus_rm_device(dev->dev_handle);
        dev->dev_handle = NULL;
    }

    if (dev->bus_handle != NULL) {
        i2c_del_master_bus(dev->bus_handle);
        dev->bus_handle = NULL;
    }

    dev->initialized = false;
    dev->i2c_addr = 0;
}

// 加载设备设置（与原始C++版本完全一致）
static void load_settings(vl6180x_dev_t* dev) {
    // 私有设置
    write8(dev, 0x0207, 0x01);
    write8(dev, 0x0208, 0x01);
    write8(dev, 0x0096, 0x00);
    write8(dev, 0x0097, 0xfd);
    write8(dev, 0x00e3, 0x00);
    write8(dev, 0x00e4, 0x04);
    write8(dev, 0x00e5, 0x02);
    write8(dev, 0x00e6, 0x01);
    write8(dev, 0x00e7, 0x03);
    write8(dev, 0x00f5, 0x02);
    write8(dev, 0x00d9, 0x05);
    write8(dev, 0x00db, 0xce);
    write8(dev, 0x00dc, 0x03);
    write8(dev, 0x00dd, 0xf8);
    write8(dev, 0x009f, 0x00);
    write8(dev, 0x00a3, 0x3c);
    write8(dev, 0x00b7, 0x00);
    write8(dev, 0x00bb, 0x3c);
    write8(dev, 0x00b2, 0x09);
    write8(dev, 0x00ca, 0x09);
    write8(dev, 0x0198, 0x01);
    write8(dev, 0x01b0, 0x17);
    write8(dev, 0x01ad, 0x00);
    write8(dev, 0x00ff, 0x05);
    write8(dev, 0x0100, 0x05);
    write8(dev, 0x0199, 0x05);
    write8(dev, 0x01a6, 0x1b);
    write8(dev, 0x01ac, 0x3e);
    write8(dev, 0x01a7, 0x1f);
    write8(dev, 0x0030, 0x00);

    // 推荐公共寄存器
    write8(dev, 0x0011, 0x10);
    write8(dev, 0x010a, 0x30);
    write8(dev, 0x003f, 0x46);
    write8(dev, 0x0031, 0xFF);
    write8(dev, 0x0041, 0x63);
    write8(dev, 0x002e, 0x01);

    // 可选公共寄存器
    write8(dev, SYSRANGE__INTERMEASUREMENT_PERIOD, 0x09);
    write8(dev, 0x003e, 0x31);
    write8(dev, 0x0014, 0x24);
}

uint8_t vl6180x_read_range(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) {
        ESP_LOGE("VL6180X", "Device not initialized");
        return 0;
    }

    // 等待设备就绪
    // ESP_LOGE("VL6180X", "等待设备就绪");
    while ((read8(dev, VL6180X_REG_RESULT_RANGE_STATUS) & 0x01) == 0) {
        vTaskDelay(pdMS_TO_TICKS(1));
    }
// ESP_LOGE("VL6180X", "开始距离测量");
    // 开始距离测量
    write8(dev, VL6180X_REG_SYSRANGE_START, 0x01);
// ESP_LOGE("VL6180X", "等待测量完成");
    // 等待测量完成
    while (!(read8(dev, VL6180X_REG_RESULT_INTERRUPT_STATUS_GPIO) & 0x04)) {
        // ESP_LOGE("VL6180X", "等待测量完成");
        vTaskDelay(pdMS_TO_TICKS(100));
    }
// ESP_LOGE("VL6180X", "读取距离值");
    // 读取距离值
    uint8_t range = read8(dev, VL6180X_REG_RESULT_RANGE_VAL);
// ESP_LOGE("VL6180X", "清除中断");
    // 清除中断
    write8(dev, VL6180X_REG_SYSTEM_INTERRUPT_CLEAR, 0x07);

    return range;
}

uint8_t vl6180x_get_address(vl6180x_dev_t* dev) {
    return (dev != NULL) ? dev->i2c_addr : 0;
}

// 读取距离测量状态
uint8_t vl6180x_read_range_status(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) {
        return VL6180X_ERROR_SYSERR_1;
    }
    return (read8(dev, VL6180X_REG_RESULT_RANGE_STATUS) >> 4);
}

// 开始单次距离测量
bool vl6180x_start_range(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) return false;

    // 等待设备就绪
    while ((read8(dev, VL6180X_REG_RESULT_RANGE_STATUS) & 0x01) == 0) {
        vTaskDelay(pdMS_TO_TICKS(1));
    }

    // 开始测量
    write8(dev, VL6180X_REG_SYSRANGE_START, 0x01);
    return true;
}

// 检查测量是否完成
bool vl6180x_is_range_complete(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) return false;
    return (read8(dev, VL6180X_REG_RESULT_INTERRUPT_STATUS_GPIO) & 0x04) != 0;
}

// 等待测量完成
bool vl6180x_wait_range_complete(vl6180x_dev_t* dev) {
  while (!(read8(dev,VL6180X_REG_RESULT_INTERRUPT_STATUS_GPIO) & 0x04))
    ;

  return true;
}

// 读取距离测量结果
uint8_t vl6180x_read_range_result(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) return 0;

    if (!vl6180x_wait_range_complete(dev)) {
        ESP_LOGE("VL6180X", "Range measurement timeout");
        return 0;
    }

    // 读取距离值
    uint8_t range = read8(dev, VL6180X_REG_RESULT_RANGE_VAL);

    // 清除中断
    write8(dev, VL6180X_REG_SYSTEM_INTERRUPT_CLEAR, 0x07);

    return range;
}

// 启动连续测量模式 [1,5](@ref)
void vl6180x_start_range_continuous(vl6180x_dev_t* dev, uint16_t period_ms) {
    if (dev == NULL || !dev->initialized) return;

    // 设置测量间隔
    write8(dev, SYSRANGE__INTERMEASUREMENT_PERIOD, (uint8_t)(period_ms / 10));

    // 启动连续测量模式
    write8(dev, VL6180X_REG_SYSRANGE_START, 0x03); // 连续模式
}

// 停止连续测量
void vl6180x_stop_range_continuous(vl6180x_dev_t* dev) {
    if (dev == NULL || !dev->initialized) return;

    // 停止测量
    write8(dev, VL6180X_REG_SYSRANGE_START, 0x02); // 停止命令
    vTaskDelay(pdMS_TO_TICKS(10));


}

// 读取光照强度（LUX） [3,7](@ref)
float vl6180x_read_lux(vl6180x_dev_t* dev, uint8_t gain) {
    if (dev == NULL || !dev->initialized) return -1.0f;

    // 设置增益
    if (gain > 7) gain = VL6180X_ALS_GAIN_1;
    write8(dev, VL6180X_REG_SYSALS_ANALOGUE_GAIN, 0x40 | gain);

    // 开始光照测量
    write8(dev, VL6180X_REG_SYSALS_START, 0x01);

    // 等待测量完成
    uint16_t timeout = 0;
    while ((read8(dev, VL6180X_REG_RESULT_INTERRUPT_STATUS_GPIO) & 0x20) == 0) {
        vTaskDelay(pdMS_TO_TICKS(1));
        if (timeout++ > 1000) {
            ESP_LOGE("VL6180X", "ALS measurement timeout");
            return -1.0f;
        }
    }

    // 读取光照值
    uint16_t als_value = read16(dev, VL6180X_REG_RESULT_ALS_VAL);

    // 清除中断
    write8(dev, VL6180X_REG_SYSTEM_INTERRUPT_CLEAR, 0x07);

    // 根据增益计算LUX值 [3](@ref)
    float gain_values[] = {20.0f, 10.0f, 5.0f, 2.5f, 1.67f, 1.25f, 1.0f, 40.0f};
    float actual_gain = gain_values[gain];

    // 积分时间默认为100ms
    float integration_time = 100.0f;
    float lux = (0.32f * als_value * actual_gain) / integration_time;

    return lux;
}

// 设置距离偏移量 [2,5](@ref)
void vl6180x_set_offset(vl6180x_dev_t* dev, uint8_t offset) {
    if (dev == NULL || !dev->initialized) return;
    write8(dev, VL6180X_REG_SYSRANGE_PART_TO_PART_RANGE_OFFSET, offset);
}

// 读取设备ID信息
void vl6180x_get_id(vl6180x_dev_t* dev, uint8_t* id_buf) {
    if (dev == NULL || id_buf == NULL) return;

  id_buf[0] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 0);
  id_buf[1] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 1);
  id_buf[2] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 2);
  id_buf[3] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 3);
  id_buf[4] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 4);
  id_buf[6] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 6);
  id_buf[7] = read8(dev,VL6180X_REG_IDENTIFICATION_MODEL_ID + 7);
}
// I2C底层读写函数
static uint16_t read16(vl6180x_dev_t* dev, uint16_t register_address) {
    if (dev == NULL || !dev->initialized) return 0xFFFF;

    uint8_t read_buffer[2] = {0};
    uint8_t reg_addr_buffer[2] = {
        (uint8_t)(register_address >> 8),
        (uint8_t)(register_address & 0xFF)
    };

    esp_err_t ret = i2c_master_transmit_receive(dev->dev_handle,
                                                reg_addr_buffer, 2,
                                                read_buffer, 2,
                                                pdMS_TO_TICKS(1000));
    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "Read16 failed at reg 0x%04X: %s",
                 register_address, esp_err_to_name(ret));
        return 0xFFFF;
    }

    return (uint16_t)((read_buffer[0] << 8) | read_buffer[1]);
}

static uint8_t read8(vl6180x_dev_t* dev, uint16_t register_address) {
    if (dev == NULL || dev->dev_handle == NULL) {
        ESP_LOGE("VL6180X", "Invalid device handle");
        return 0;
    }

    esp_err_t ret;
    uint8_t data_byte = 0;

    // 将16位寄存器地址拆分为高8位和低8位
    uint8_t reg_addr_buffer[2] = {
        (uint8_t)(register_address >> 8),   // 寄存器地址高字节
        (uint8_t)(register_address & 0xFF)  // 寄存器地址低字节
    };

    // 使用新版I2C主驱动的复合传输函数
    ret = i2c_master_transmit_receive(dev->dev_handle,
                                    reg_addr_buffer, 2,   // 写入寄存器地址
                                    &data_byte, 1,       // 读取1字节数据
                                    pdMS_TO_TICKS(1000)); // 超时时间

    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "Read8 failed at reg 0x%04X: %s", register_address, esp_err_to_name(ret));
        return 0;
    }
//  printf("data_byte: 0x%02X\n", data_byte); // 调试时使用，正常后注释掉
    return data_byte;
}

static void write16(vl6180x_dev_t* dev, uint16_t register_address, uint16_t data) {
    if (dev == NULL || !dev->initialized) return;

    uint8_t write_buffer[4] = {
        (uint8_t)(register_address >> 8),
        (uint8_t)(register_address & 0xFF),
        (uint8_t)(data >> 8),
        (uint8_t)(data & 0xFF)
    };

    esp_err_t ret = i2c_master_transmit(dev->dev_handle, write_buffer, 4, pdMS_TO_TICKS(1000));
    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "Write16 failed at reg 0x%04X: %s",
                 register_address, esp_err_to_name(ret));
    }
}

/**
 * @brief 向VL6180X寄存器写入一个字节，并验证是否成功
 * @param dev 设备句柄
 * @param register_address 16位寄存器地址
 * @param data 要写入的数据
 * @return esp_err_t ESP_OK表示写入并验证成功，否则失败
 */
static void write8(vl6180x_dev_t* dev, uint16_t register_address, uint8_t data) {
    if (dev == NULL || !dev->initialized) {
        ESP_LOGE("VL6180X", "Device not initialized or NULL");

    }

    uint8_t write_buffer[3] = {
        (uint8_t)(register_address >> 8),   // 寄存器地址高字节
        (uint8_t)(register_address & 0xFF), // 寄存器地址低字节
        data                                // 要写入的数据
    };

    // 1. 执行写入操作
    esp_err_t ret = i2c_master_transmit(dev->dev_handle, write_buffer, 3, pdMS_TO_TICKS(1000));
    if (ret != ESP_OK) {
        ESP_LOGE("VL6180X", "I2C transmit failed at reg 0x%04X: %s", register_address, esp_err_to_name(ret));

    }

    // 短暂延时，确保设备完成写入操作[5](@ref)
    vTaskDelay(pdMS_TO_TICKS(1));

    // 2. 立即读取刚写入的寄存器值
    uint8_t read_back = read8(dev, register_address); // 假设您有对应的read8函数

    // 3. 比对写入值和读取值
    if (read_back != data) {
        // ESP_LOGE("VL6180X", "Verify FAILED at reg 0x%04X: wrote 0x%02X, read 0x%02X",
        //          register_address, data, read_back);
        vTaskDelay(pdMS_TO_TICKS(10));

    }

    ESP_LOGD("VL6180X", "Successfully wrote 0x%02X to register 0x%04X", data, register_address);

}

头文件Adafruit_VL6180X.h

//Adafruit_VL6180X.h
#ifndef _ADAFRUIT_VL6180X_H
#define _ADAFRUIT_VL6180X_H

#ifdef __cplusplus
extern "C" {
#endif

#include "driver/i2c_master.h"
#include "esp_err.h"
#include "esp_log.h"
#include <stdbool.h>
#include <stdint.h>

// 引脚配置
#ifndef CONFIG_SDA_GPIO
#define CONFIG_SDA_GPIO GPIO_NUM_39
#endif
#ifndef CONFIG_SCL_GPIO
#define CONFIG_SCL_GPIO GPIO_NUM_38
#endif

// 设备常量
#define VL6180X_DEFAULT_I2C_ADDR 0x29

// 寄存器地址
#define VL6180X_REG_IDENTIFICATION_MODEL_ID 0x000
#define VL6180X_REG_SYSTEM_INTERRUPT_CONFIG 0x014
#define VL6180X_REG_SYSTEM_INTERRUPT_CLEAR 0x015
#define VL6180X_REG_SYSTEM_FRESH_OUT_OF_RESET 0x016
#define VL6180X_REG_SYSRANGE_START 0x018
#define VL6180X_REG_SYSRANGE_PART_TO_PART_RANGE_OFFSET 0x024
#define VL6180X_REG_SYSALS_START 0x038
#define VL6180X_REG_SYSALS_ANALOGUE_GAIN 0x03F
#define VL6180X_REG_SYSALS_INTEGRATION_PERIOD_HI 0x040
#define VL6180X_REG_SYSALS_INTEGRATION_PERIOD_LO 0x041
#define VL6180X_REG_RESULT_RANGE_STATUS 0x04d
#define VL6180X_REG_RESULT_INTERRUPT_STATUS_GPIO 0x04f
#define VL6180X_REG_RESULT_ALS_VAL 0x050
#define VL6180X_REG_RESULT_RANGE_VAL 0x062
#define VL6180X_REG_SLAVE_DEVICE_ADDRESS 0x212
#define SYSRANGE__INTERMEASUREMENT_PERIOD 0x001b

// ALS增益设置
#define VL6180X_ALS_GAIN_1 0x06
#define VL6180X_ALS_GAIN_1_25 0x05
#define VL6180X_ALS_GAIN_1_67 0x04
#define VL6180X_ALS_GAIN_2_5 0x03
#define VL6180X_ALS_GAIN_5 0x02
#define VL6180X_ALS_GAIN_10 0x01
#define VL6180X_ALS_GAIN_20 0x00
#define VL6180X_ALS_GAIN_40 0x07

// 错误代码
#define VL6180X_ERROR_NONE 0
#define VL6180X_ERROR_SYSERR_1 1
#define VL6180X_ERROR_SYSERR_5 5
#define VL6180X_ERROR_ECEFAIL 6
#define VL6180X_ERROR_NOCONVERGE 7
#define VL6180X_ERROR_RANGEIGNORE 8
#define VL6180X_ERROR_SNR 11
#define VL6180X_ERROR_RAWUFLOW 12
#define VL6180X_ERROR_RAWOFLOW 13
#define VL6180X_ERROR_RANGEUFLOW 14
#define VL6180X_ERROR_RANGEOFLOW 15

// 设备句柄结构体
typedef struct {
    uint8_t i2c_addr;
    i2c_master_bus_handle_t bus_handle;
    i2c_master_dev_handle_t dev_handle;
    bool initialized;
} vl6180x_dev_t;

// 初始化函数
bool vl6180x_init(vl6180x_dev_t* dev, uint8_t i2c_addr);
void vl6180x_cleanup(vl6180x_dev_t* dev);

// 设备配置函数
bool vl6180x_set_address(vl6180x_dev_t* dev, uint8_t new_addr);
uint8_t vl6180x_get_address(vl6180x_dev_t* dev);

// 距离测量函数
uint8_t vl6180x_read_range(vl6180x_dev_t* dev);//从这往下都没定义
uint8_t vl6180x_read_range_status(vl6180x_dev_t* dev);
bool vl6180x_start_range(vl6180x_dev_t* dev);
bool vl6180x_is_range_complete(vl6180x_dev_t* dev);
bool vl6180x_wait_range_complete(vl6180x_dev_t* dev);
uint8_t vl6180x_read_range_result(vl6180x_dev_t* dev);

// 连续测量模式
void vl6180x_start_range_continuous(vl6180x_dev_t* dev, uint16_t period_ms);
void vl6180x_stop_range_continuous(vl6180x_dev_t* dev);

// 光照测量函数
float vl6180x_read_lux(vl6180x_dev_t* dev, uint8_t gain);

// 设备配置函数
void vl6180x_set_offset(vl6180x_dev_t* dev, uint8_t offset);
void vl6180x_get_id(vl6180x_dev_t* dev, uint8_t* id_buf);
uint8_t vl6180x_read_range_enhanced(vl6180x_dev_t* dev);

#ifdef __cplusplus
}
#endif

#endif

主程序main.c

//main.c
#include <stdio.h>
#include "esp_err.h"
#include "esp_log.h"
#include "esp_check.h"
#include "nvs_flash.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_timer.h"
#include "Adafruit_VL6180X.h"
void app_main(void)
{
   vl6180x_dev_t sensor;
    bool n=0;
    if (vl6180x_init(&sensor, VL6180X_DEFAULT_I2C_ADDR)) {
        printf("VL6180X initialized successfully\n");
        n=1;
        printf("Distance: %d mm\n", n);
    }


    while(1) {


        if(n!=0){
        uint8_t distance = vl6180x_read_range(&sensor);// 读取距离
        uint8_t status = vl6180x_read_range_status(&sensor);
        // status == VL6180X_ERROR_NONE
        if (status == VL6180X_ERROR_NONE) {
            // uint8_t distance = vl6180x_read_range(&sensor);
            printf("Distance: %d mm\n", distance);
        }
        // 清理资源
        // vl6180x_cleanup(&sensor);
}
        vTaskDelay(pdMS_TO_TICKS(10));          // 延时10ms
        // printf("Diaaaaaa");
    }

}

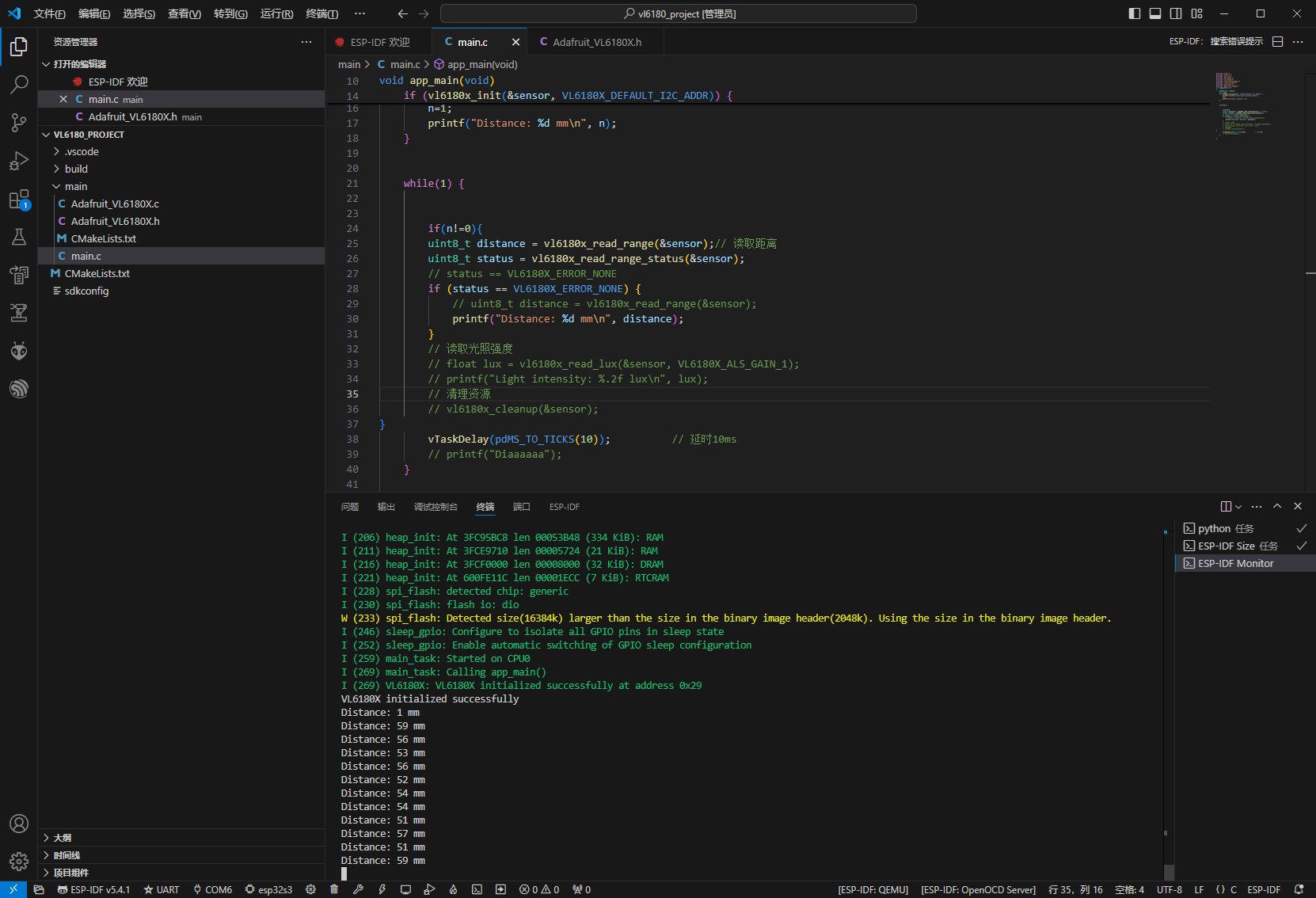

效果图

天工造物局

北京人形旗下天工造物具身智能开源社区，聚焦具身天工与慧思开物两大平台

更多推荐

deck.gl TripsLayer 出租车轨迹动画示例实战：从示例运行到着色器原理

TripsLayer 是 deck.gl 中用于渲染**随时间流动的轨迹动画**（如出租车行程、物流路径、迁徙路线）的核心图层。本文以仓库中的最小独立示例 [examples/website/trips](https://link.gitcode.com/i/1442af8f442f4cff39ff546e050fceb5) 为骨架，带你完成从安装依赖、启动应用、理解曼哈顿出租车数据格式，到深入

天工造物局

Foundry Anvil 中 eth_simulateV1 的 Blob 交易与 Blob Gas 字段规范化：原理、实现与测试验证

本篇技术指南以 [anvil-simulate-blob-transactions.md](https://link.gitcode.com/i/3d2ebe227262de169335eb290af80da8) 这条 changelog 条目为起点，深入剖析 Foundry Anvil 对 `eth_simulateV1` RPC 返回结果中 blob（EIP-4844）交易与 blob gas

天工造物局

LMCache CLI 实战：用 `lmcache kvcache clear` 管理运行中服务的 KV Cache 状态

本文是一份针对 LMCache 官方 CLI 命令 `lmcache kvcache` 的完整技术指南。该命令用于在**运行中的 LMCache 服务（MP HTTP server）**上管理 KV cache 状态，当前提供 `clear` 子命令，用于清空 L1（CPU 内存）层中缓存的全部 KV 数据。读完本文，你将掌握该命令的完整参数体系、退出码语义、终端/JSON/静默三种输出模式，并能
