docker和docker-compose安装不再赘述
在安装gitlab之前需要确认安装的版本，选择stable稳定版
docker pull gitlab/gitlab-ce:14.9.3-ce.0
新部署建议安装新版本，通过https://about.gitlab.com/releases/categories/releases/
查找，小版本越大越稳定

docker-compose.yml

web:
  image: 'gitlab/gitlab-ce:14.9.3-ce.0'
  restart: always
  tty: true
  hostname: 'gitlab'
  ports:
    - '80:80'
    - '2222:22'
  environment:
    TZ: "Asia/Shanghai"
    GITLAB_OMNIBUS_CONFIG: |
      external_url "http://172.24.224.20:8000"
      postgresql['shared_buffers'] = "256MB"
      sidekiq['concurrency'] = 4
      prometheus_monitoring['enable'] = false
      gitlab_rails['gitlab_shell_ssh_port'] = 2222
  volumes:
    - '/data/gitlab/config:/etc/gitlab'
    - '/data/gitlab/logs:/var/log/gitlab'
    - '/data/gitlab/data:/var/opt/gitlab'

配置说明
hostname 容器主机名
ports：容器的80映射到宿主机80，容器的22映射到宿主机的2222
gitlab_rails[‘gitlab_shell_ssh_port’] 代码拉取端口2222，ssh拉取代码显示的端口，具体端口还得看我们容器映射到宿主机的端口
volumes 将配置文件 日志 数据映射到宿主机木楼

gitlab.rb

# gitlab中显示的访问地址，重要的地方
external_url 'http://gitlab.xx.com'
# gitlab中显示的代码ssh拉取地址，重要的地方
gitlab_rails['gitlab_ssh_host'] = 'gitlab.xx.com'
# gitlab配置
gitlab_rails['ldap_enabled'] = true
gitlab_rails['ldap_servers'] = YAML.load <<-'EOS'
  main: # 'main' is the GitLab 'provider ID' of this LDAP server
    label: 'LDAP'
    host: '172.24.30.89'
    port: 389
    uid: 'uid'
    bind_dn: 'cn=admin,dc=xx,dc=com'
    password: 'PASSWORD'
    encryption: 'plain' # "start_tls" or "simple_tls" or "plain"
    verify_certificates: false
    active_directory: true
    allow_username_or_email_login: false
    lowercase_usernames: false
    block_auto_created_users: false
    base: 'dc=xx,dc=com'
    user_filter: 'privilege=gitlab'
    ## EE only
    group_base: ''
    admin_group: ''
    sync_ssh_keys: false
EOS

# 生效配置 会重启服务
gitlab-ctl reconfigure
# 检查ldap 默认返回100条记录
gitlab-rake gitlab:ldap:check
# 更改返回条数
rake gitlab:ldap:check[50]

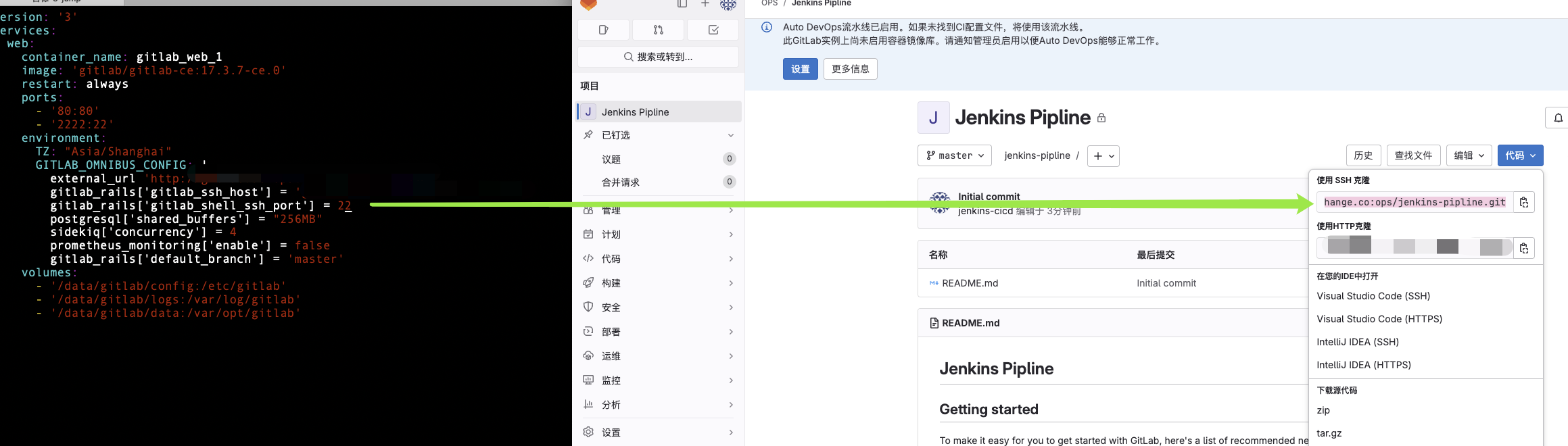

修改ssh拉取时显示的端口

nginx反向代理gitlab

alb、nginx都可以配置，另外域名挂靠在cloudflare可以申请源服务器证书

root@newvpn-16-12:vhosts# cat gitlab.conf
server {
    listen 80;
    server_name gitlab.xx.com;
    server_tokens off;
    client_max_body_size 5000m;

    location / {
        proxy_pass http://172.24.224.20:8000;
        proxy_buffering off;
        proxy_request_buffering off;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $http_connection;

        proxy_ignore_client_abort on;
        proxy_connect_timeout 600;
        proxy_send_timeout 600;
        proxy_read_timeout 600;
        send_timeout 6000;
    }
}

配置gitlab备份

按照之前的部署方式，gitlab.rb映射在宿主机的/data/gitlab/config/gitlab.rb
打开的都是默认配置，主要为了配置三天的备份保留时间，以秒为单位

 605 gitlab_rails['backup_path'] = "/var/opt/gitlab/backups"
 606 # gitlab_rails['backup_gitaly_backup_path'] = "/opt/gitlab/embedded/bin/gitaly-backup"
 607 ###! Docs: https://docs.gitlab.com/ee/raketasks/backup_restore.html#backup-archive-permissions
 608 gitlab_rails['backup_archive_permissions'] = 0644
 609 # gitlab_rails['backup_pg_schema'] = 'public'
 610 ###! The duration in seconds to keep backups before they are allowed to be deleted
 611 gitlab_rails['backup_keep_time'] = 259200

最后reconfig让配置生效
docker exec gitlab_web_1 gitlab-ctl reconfigure
备份脚本

#!/bin/bash
TIME=`date +%F`
BACKUP_LOG="/data/gitlab/backup_info/backup_info_${TIME}"
BACKUP_RESULT_FILE="/data/gitlab/backup_info/backup_results"
docker exec  gitlab_web_1 gitlab-rake gitlab:backup:create 2>&1 >${BACKUP_LOG}
BACKUP_FILE=`ls  -lrth /data/gitlab/data/backups/*.tar|awk 'END{print $9}'`
if [ $? -eq 0 ];then
    echo "${TIME} backup succeed --------${BACKUP_FILE}" >>${BACKUP_RESULT_FILE}
else
    echo "${TIME} backup failed -------${BACKUP_FILE}" >>${BACKUP_RESULT_FILE}
fi

定时任务

20 15 * * * sh /data/gitlab/gitlab_backup.sh > /dev/null 2>&1

16.x gitlab变化

需要进入容器中重置root密码
日中中给出如下url
https://docs.gitlab.com/ee/security/reset_user_password.html?tab=Linux+package+%28Omnibus%29
gitlab-rake "gitlab:password:reset[root]"

修改默认语言

gitlab一键脚本

不包含ldap配置

• 指定域名进行部署
• docker-compose里指定项目http地址和ssh项目拉取地址
• 添加备份脚本
• 添加备份删除脚本

#!/bin/bash

# Check if domain parameter is provided
if [ $# -eq 0 ]; then
    echo "Error: Domain parameter is required"
    echo "Usage: $0 <domain>"
    echo "Example: $0 baga.life"
    echo "Result will be: gitlab.devops.baga.life"
    exit 1
fi

# Configuration variables
DOMAIN="gitlab.devops.$1"
GITLAB_VERSION="17.3.7-ce.0"
CONTAINER_NAME="gitlab_web"

echo "Setting up GitLab with domain: $DOMAIN"
echo "Container name will be: ${CONTAINER_NAME}_1"

# Create necessary directories
mkdir -p /data/gitlab/{config,data,logs,backup_info}

# Create docker-compose.yml
cat << EOF > /data/gitlab/docker-compose.yml
version: '3'
services:
  web:
    container_name: ${CONTAINER_NAME}_1
    image: 'gitlab/gitlab-ce:${GITLAB_VERSION}'
    restart: always
    ports:
      - '80:80'
      - '2222:22'
    environment:
      TZ: "Asia/Shanghai"
      GITLAB_OMNIBUS_CONFIG: |
        external_url 'https://${DOMAIN}'
        gitlab_rails['gitlab_ssh_host'] = '${DOMAIN}'
        gitlab_rails['gitlab_shell_ssh_port'] = 2222
        postgresql['shared_buffers'] = "256MB"
        sidekiq['concurrency'] = 4
        prometheus_monitoring['enable'] = false
    volumes:
      - '/data/gitlab/config:/etc/gitlab'
      - '/data/gitlab/logs:/var/log/gitlab'
      - '/data/gitlab/data:/var/opt/gitlab'
EOF

# Create backup script
cat << EOF > /data/gitlab/backup.sh
#!/bin/bash
TIME=\$(date +%F)
BACKUP_LOG="/data/gitlab/backup_info/backup_info_\${TIME}"
BACKUP_RESULT_FILE="/data/gitlab/backup_info/backup_results"

docker exec ${CONTAINER_NAME}_1 gitlab-rake gitlab:backup:create 2>&1 >\${BACKUP_LOG}
BACKUP_FILE=\$(ls -lrth /data/gitlab/data/backups/*.tar | awk 'END{print \$9}')

if [ \$? -eq 0 ]; then
    echo "\${TIME} backup succeed --------\${BACKUP_FILE}" >>\${BACKUP_RESULT_FILE}
else
    echo "\${TIME} backup failed -------\${BACKUP_FILE}" >>\${BACKUP_RESULT_FILE}
fi
EOF

# Create cleanup script
cat << EOF > /data/gitlab/cleanup_backups.sh
#!/bin/bash

# Keep last 7 days of backups
BACKUP_DIR="/data/gitlab/data/backups"
DAYS_TO_KEEP=7

find \${BACKUP_DIR} -name "*.tar" -type f -mtime +\${DAYS_TO_KEEP} -delete

# Log cleanup
echo "Cleaned up backups older than \${DAYS_TO_KEEP} days on \$(date)" >> /data/gitlab/backup_info/cleanup_log
EOF

# Make scripts executable
chmod +x /data/gitlab/backup.sh
chmod +x /data/gitlab/cleanup_backups.sh

# Setup cron jobs for automated backup and cleanup at 23:00
(crontab -l 2>/dev/null; echo "0 23 * * * /data/gitlab/backup.sh") | crontab -
(crontab -l 2>/dev/null; echo "30 23 * * * /data/gitlab/cleanup_backups.sh") | crontab -

# Start GitLab
cd /data/gitlab
docker-compose up -d

echo "GitLab setup complete. Please wait a few minutes for all services to start."
echo "You can access GitLab at http://${DOMAIN}"
