Spring添加注解Mybatis，报元素类型"configuration"的内容匹配问题及Error creating bean with name ‘sqlSessionFactory’ defined in class path resource解决办法收录(附配置文件)

1. 报错日志

org.springframework.beans.factory.BeanCreationException:
Error creating bean with name 'sqlSessionFactory' defined in class path resource [spring-dao.xml]: Invocation of init method failed;
nested exception is org.apache.ibatis.builder.
BuilderException: Error creating document instance.
Cause: org.xml.sax.SAXParseException; lineNumber: 16; columnNumber: 17;
元素类型为 "configuration" 的内容必须匹配 "(properties?,settings?,typeAliases?,typeHandlers?,objectFactory?,objectWrapperFactory?,reflectorFactory?,plugins?,environments?,databaseIdProvider?,mappers?)"。

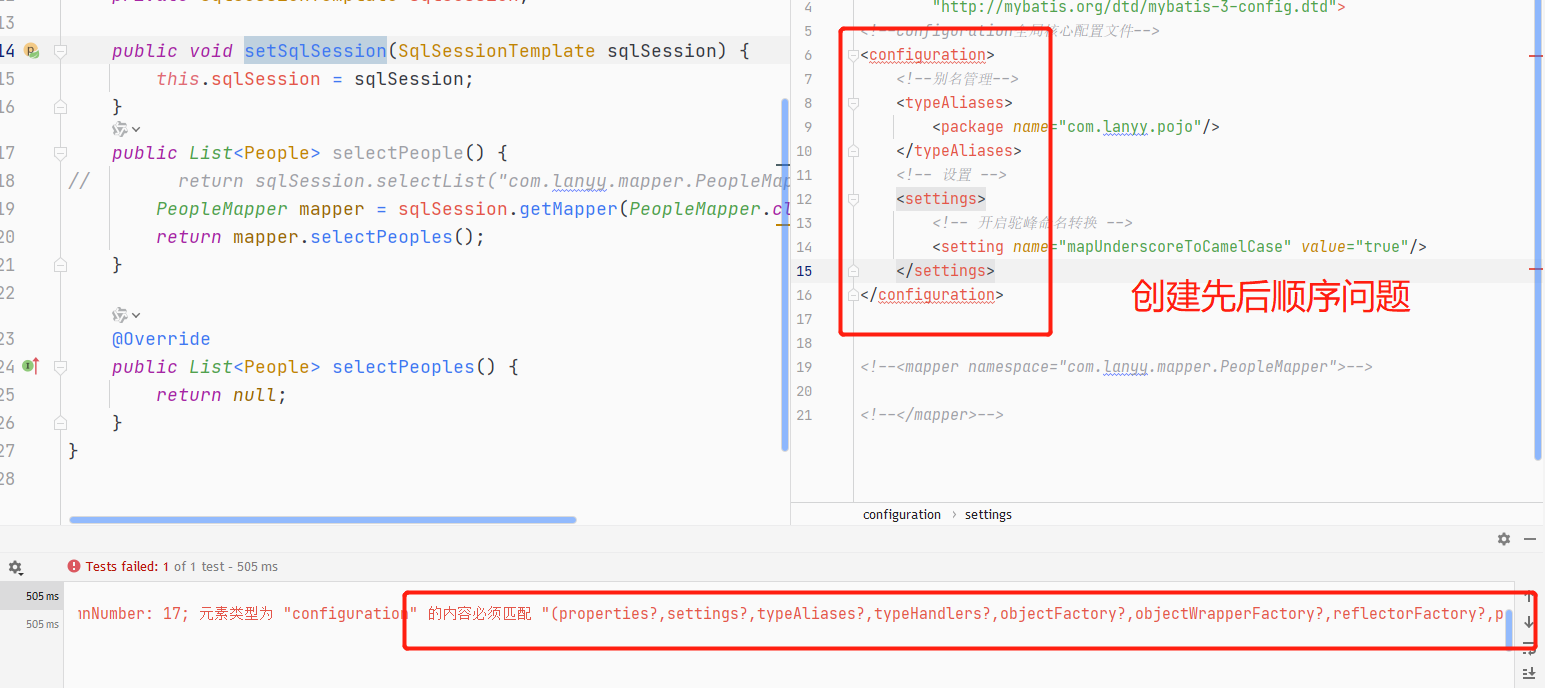

2. 问题排查

3. 问题解决

spring-dao.xml 注解 文件配置收录

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">
<!--DataSource：使用Spring的数据源替换Mybatis的配置 c3p0 dbcp druid
    这里使用spring提供的jdbc
-->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<!--        <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=flase&amp;useUnicode=true&amp;characterEncoding=utf8&amp;serverTimezone=GMT%2B8"/>-->
        <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&amp;useUnicode=true&amp;characterEncoding=utf8"/>

        <property name="username" value="root"/>
        <property name="password" value="root"/>
    </bean>
<!--  sqlSessionFactory：Spring对Mybatis的整合！  -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--   绑定mybatis-cfg.xml配置文件  -->
        <property name="configLocation" value="classpath:mybatis-cfg.xml"/>
<!-- <property name="mapperLocations" value="classpath:com/lanyy/mapper/PeopleMapper.xml"/>-->
        <property name="mapperLocations" value="classpath:com/lanyy/mapper/*.xml"/>
    </bean>
<!--  SqlSessionTemplate：Spring和Mybatis整合的代理对象  -->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
        <!--  只能使用构造器注入sqlSessionFactory ,因为他没有set方法 -->
        <constructor-arg index="0" ref="sqlSessionFactory"/>
    </bean>
<!--映射器-->
    <bean id="PeopleMapper" class="com.lanyy.mapper.PeopleMapperImpl">
        <property name="sqlSession" ref="sqlSession"/>
    </bean>
</beans>

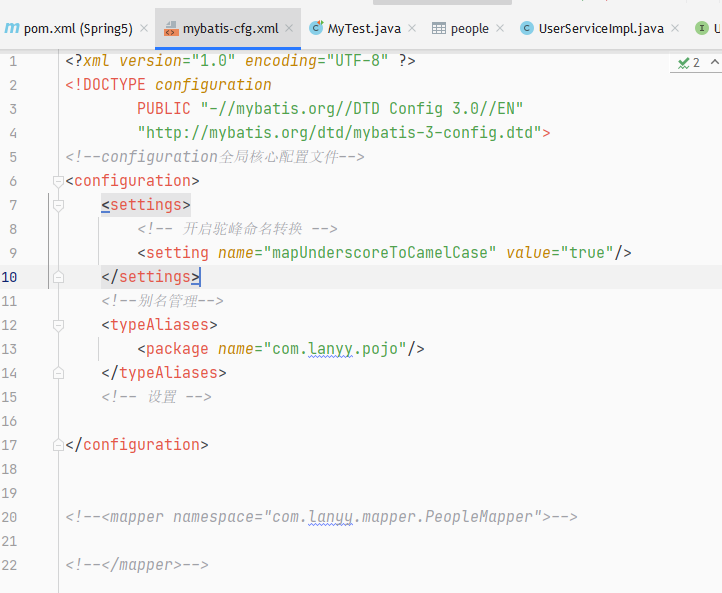

调整顺序

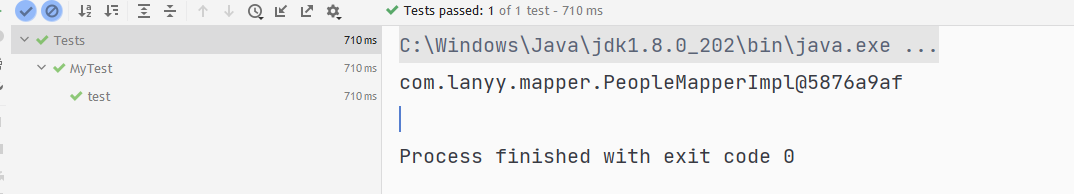

再次执行

了解更多知识请戳下：

@Author:懒羊羊
