一.创建骨架

     在OpenBrf中导入新骨架skel_new.

     通过在module_skins.py添加新物种(巨人/怪兽),第14个参数填写骨架名称.

  #第十四个参数为新骨架
  ("man", 0,
    "man_body", "man_calf_l", "m_handL",
    "male_head", man_face_keys,
    ["man_hair_s","man_hair_m","man_hair_n","man_hair_o", "man_hair_y10", "man_hair_y12","man_hair_p","man_hair_r","man_hair_q","man_hair_v","man_hair_t","man_hair_y6","man_hair_y3","man_hair_y7","man_hair_y9","man_hair_y11","man_hair_u","man_hair_y","man_hair_y2","man_hair_y4"], #man_hair_meshes ,"man_hair_y5","man_hair_y8",
    ["beard_e","beard_d","beard_k","beard_l","beard_i","beard_j","beard_z","beard_m","beard_n","beard_y","beard_p","beard_o",   "beard_v", "beard_f", "beard_b", "beard_c","beard_t","beard_u","beard_r","beard_s","beard_a","beard_h","beard_g",], #beard meshes ,"beard_q"
    ["hair_blonde", "hair_red", "hair_brunette", "hair_black", "hair_white"], #hair textures
    ["beard_blonde","beard_red","beard_brunette","beard_black","beard_white"], #beard_materials
    [("manface_young_2",0xffcbe0e0,["hair_blonde"],[0xffffffff, 0xffb04717, 0xff502a19]),
     ("manface_midage",0xffdfefe1,["hair_blonde"],[0xffffffff, 0xffb04717, 0xff632e18, 0xff502a19, 0xff19100c]),
     ("manface_young",0xffd0e0e0,["hair_blonde"],[0xff83301a, 0xff502a19, 0xff19100c, 0xff0c0d19]),
#     ("manface_old",0xffd0d0d0,["hair_white","hair_brunette","hair_red","hair_blonde"],[0xffffcded, 0xffbbcded, 0xff99eebb]),
     ("manface_young_3",0xffdceded,["hair_blonde"],[0xff2f180e, 0xff171313, 0xff007080c]),
     ("manface_7",0xffc0c8c8,["hair_blonde"],[0xff171313, 0xff007080c]),
     ("manface_midage_2",0xfde4c8d8,["hair_blonde"],[0xff502a19, 0xff19100c, 0xff0c0d19]),
     ("manface_rugged",0xffb0aab5,["hair_blonde"],[0xff171313, 0xff007080c]),
#     ("manface_young_4",0xffe0e8e8,["hair_blonde"],[0xff2f180e, 0xff171313, 0xff007080c]),
     ("manface_african",0xff807c8a,["hair_blonde"],[0xff120808, 0xff007080c]),
#     ("manface_old_2",0xffd5d5c5,["hair_white"],[0xffffcded, 0xffbbcded, 0xff99eebb]),
     ], #man_face_textures,
    [(voice_die,"snd_man_die"),(voice_hit,"snd_man_hit"),(voice_grunt,"snd_man_grunt"),(voice_grunt_long,"snd_man_grunt_long"),(voice_yell,"snd_man_yell"),(voice_stun,"snd_man_stun"),(voice_victory,"snd_man_victory")], #voice sounds
    "skel_human", 1.0,

二.绑定骨骼

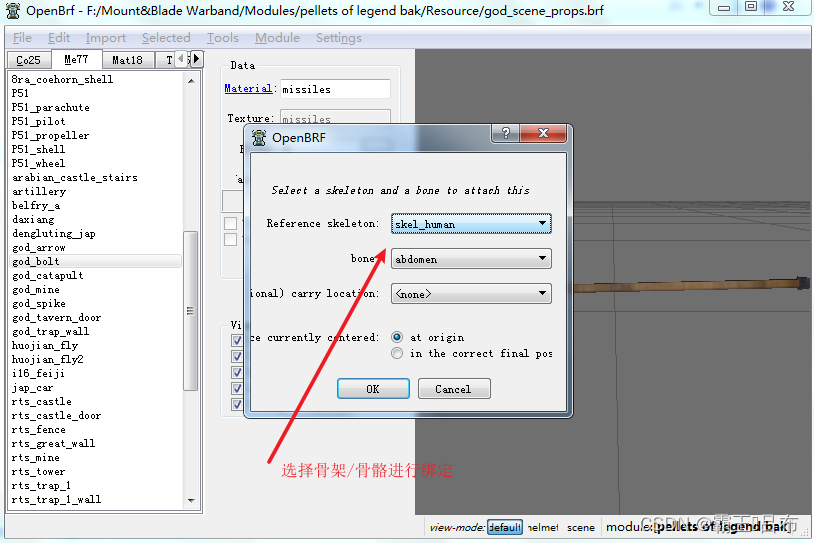

    OpenBrf导入绑定骨骼的静态模型,或直接选中未被绑定的模型,seleted->mount on one bone

三.创建骨骼动画

     骨骼动画 = 动作1 + 动作2 + 动作3

     module_animations.py创建自定义动画

####################################################################################################################
# There are two animation arrays (one for human and one for horse). Each animation in these arrays contains the following fields:
# 1) Animation id (string): used for referencing animations in other files. The prefix anim_ is automatically added before each animation-id
# 2) Animation flags: could be anything beginning with acf_ defined in header_animations.py
# 3) Animation master flags: could be anything beginning with amf_ defined in header_animations.py
# 4) Animation sequences (list).
# 4.1) Duration of the sequence. Basically the speed of the animation, the higher the number, the slower the animation will progress.
# 4.2) Name of the animation resource.
# 4.3) Beginning frame of the sequence within the animation resource.
# 4.4) Ending frame of the sequence within the animation resource.
# 4.5) Sequence flags: could be anything beginning with arf_ defined in header_animations.py
# 4.6) Sound Timing (float): Optional. Used to play sounds in animations with arf_make_walk_sound and arf_make_custom_sound.
#        Can be used in conjunction with pack2f or pack4f to make the animation play the sound multiple times.
#        Timing assumed to be percentages ofanimation completion. For example a timing of 0.0 will play at the start while 1.0 will play at the end.
# 4.7) Offset Position (float, float, float): Optional. Used to move the animating agent's position at the end of the animation. Requires acf_displace_position flag.
# 4.8) Ragdoll Delay (float). Optional. Time, in seconds, for death animations to switch to ragdoll physics. Note, setting this for longer than 2.0 will cause the animation to hang instead of transitioning as the engine only tracks "dead" agents for this long before freezing them to free up resources.


#循环动画
amf_cyclic

amf_client_prediction

#调用agent_set_animation可触发动画
amf_play


#锁定摄像机
acf_lock_camera

#动作执行完毕后会位置发生变化
acf_displace_position

#人物或马匹动画混合播放,例如马上挥砍和视角四向有关
arf_blend_in_x

 ["god_horse_man_sit_down", acf_enforce_lowerbody,
   amf_priority_die|amf_play|amf_client_prediction|amf_use_cycle_period,
   [10, "anim_human_02", 50, 69, arf_cyclic],
 ],

 acf_enforce_lowerbody 引擎控制骨骼动画执行时下半身骨骼不受影响
 amf_play 可以通过脚本调用该动画
 arf_cyclic 动画是循环播放的

四.播放动画时获取人物位置

#获取骨骼所在本地坐标系/世界坐标系坐标, 动画播放时人物骨骼位置和人物position不同步
agent_get_bone_position  = 2076  # (agent_get_bone_position, <position_no>, <agent_no>, <bone_no>, [<local_or_global>]),

五.blender中编辑自己的动画

    <1.Blender下载SMD插件

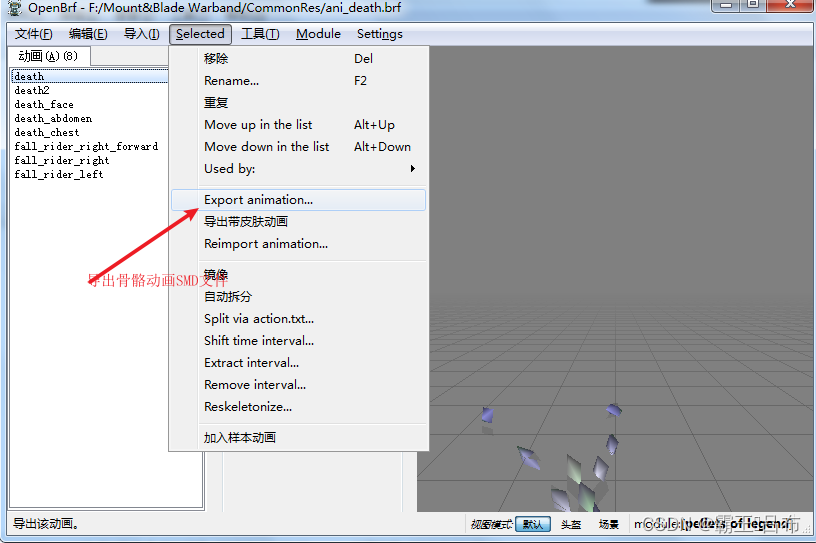

Blender导出SMD文件格式_blender怎么打开smd-CSDN博客文章浏览阅读221次。SMD文件:为描述场景的格式文件 = light(光照) + Camera(视角) + 静态数据 + + animation(顶点动画/骨骼动画)。顶点1:父骨骼ID + 顶点坐标 + 法向向量 + UV + 连接骨骼数 + 骨骼ID + 权重。顶点2:父骨骼ID + 顶点坐标 + 法向向量 + UV + 连接骨骼数 + 骨骼ID + 权重。顶点3:父骨骼ID + 顶点坐标 + 法向向量 + UV + 连接骨骼数 + 骨骼ID + 权重。<2.nodes:骨骼信息,骨骼ID + 骨骼名称 + 父骨骼ID。_blender怎么打开smdhttps://blog.csdn.net/qq_35829452/article/details/133995304    <2.OpenBrf导出SMD骨骼动画

    <3.Blender导入SMD文件进行骨骼动画编辑

Blender立方体骨骼动画创建_哔哩哔哩_bilibili1.为模型创建顶点组2.创建骨架,新增骨骼3.创建模型修改器,顶点组和骨骼关联4.姿态模式下创建动画,插入关键帧, 视频播放量 114、弹幕量 0、点赞数 0、投硬币枚数 0、收藏人数 1、转发人数 0, 视频作者 霸王奉先, 作者简介 csdn:blog.csdn.net/qq_35829452project:gitcode.net/users/qq_35829452，相关视频：Blender对称镜像操作，Blender正反面法向向量修改，骑砍1战团mod开发-OpenBrf使用方法，骑砍1战团mod开发环境搭建，骑砍1战团mod开发-蛮王语音，骑砍1战团mod开发-导入语音包，骑砍1战团mod开发-顶点动画制作方法，骑砍1战团mod开发-大地图制作方法，机 械 骨 骼 哪 家 强 ？，【3D建模】28岁建模师劝诫大家，建模没必要的苦不要吃，因为...https://www.bilibili.com/video/BV12w411T7i2
