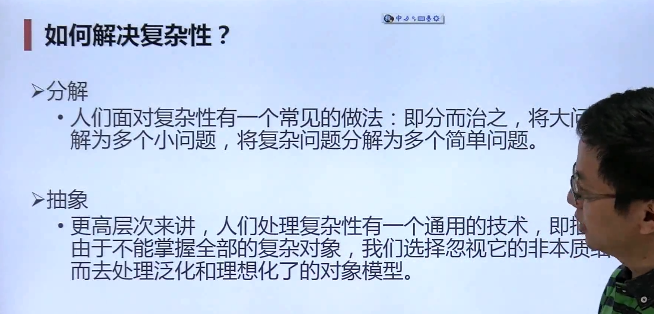

问题:什么时候用分解,抽象

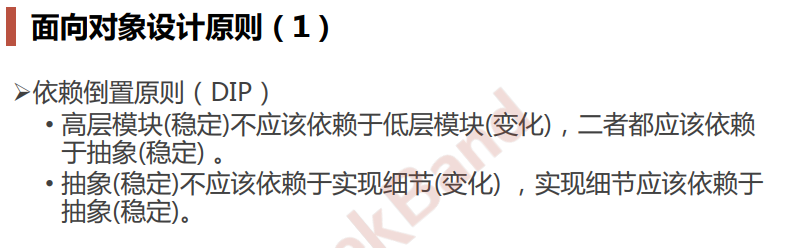

Mainform(稳定)依赖于抽象shape,实现细节Line和rect依赖于抽象shape

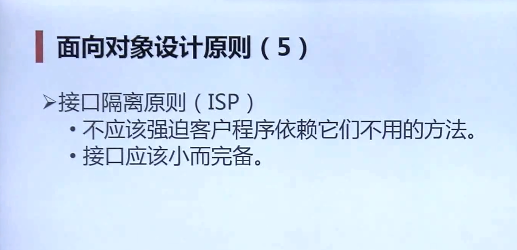

接口声明private,public容易使得客户程序比较依赖这个接口,接口以改变,程序就需要改动,不稳定

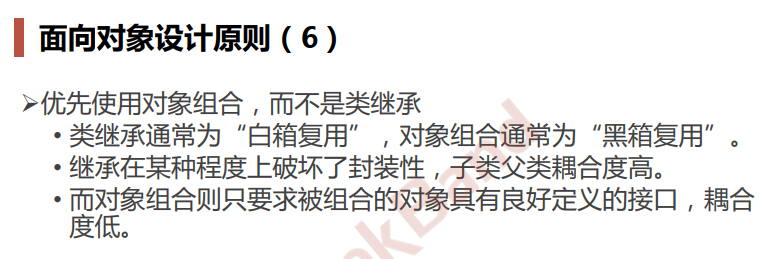

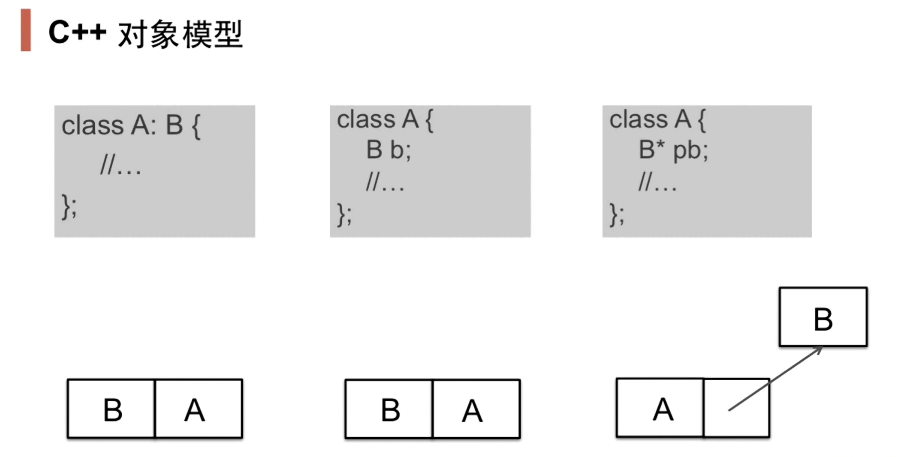

对象组合:类A中声明一个类B的对象或指针

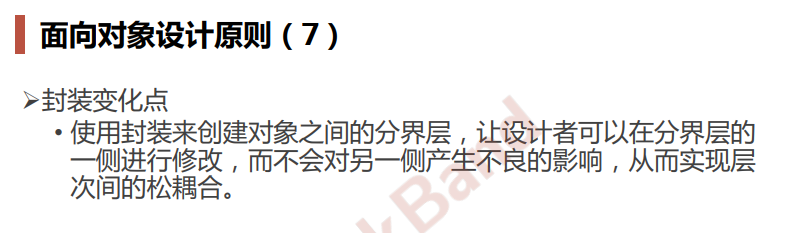

一侧变化,一侧稳定
…

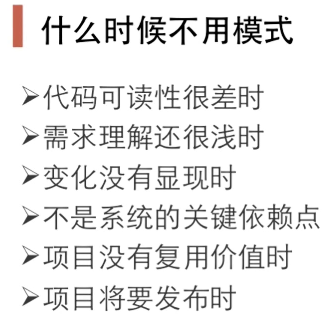

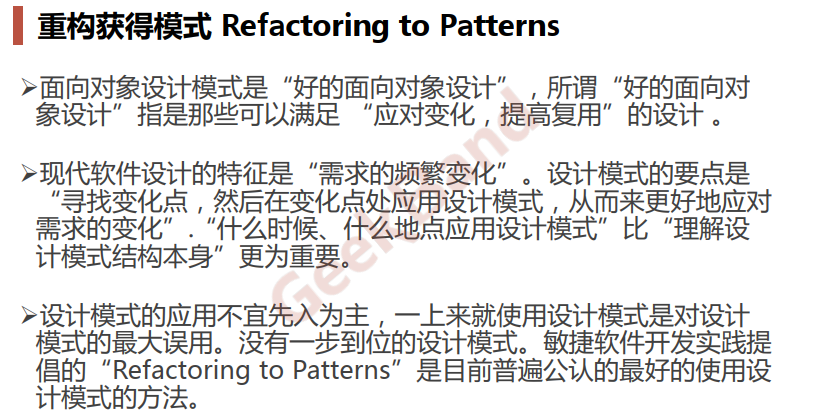

不是盲目的用设计模式,在需求发生变化的地方应用

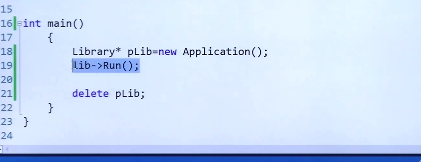

Library* pLib=new Application();pLib是多态指针(声明类型为父类,实现类型为子类)
	    pLib->Run();

虚函数的动态绑定规则


调用关系发生变化

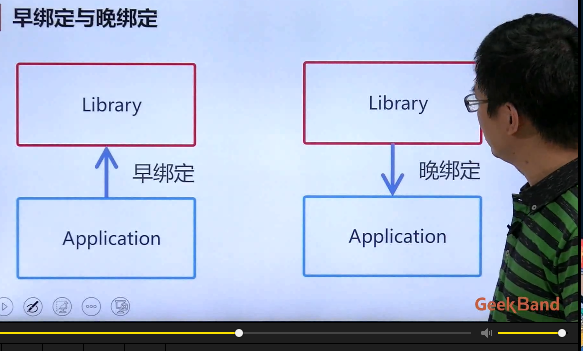

晚绑定:一个早生成的东西调用晚生成的东西

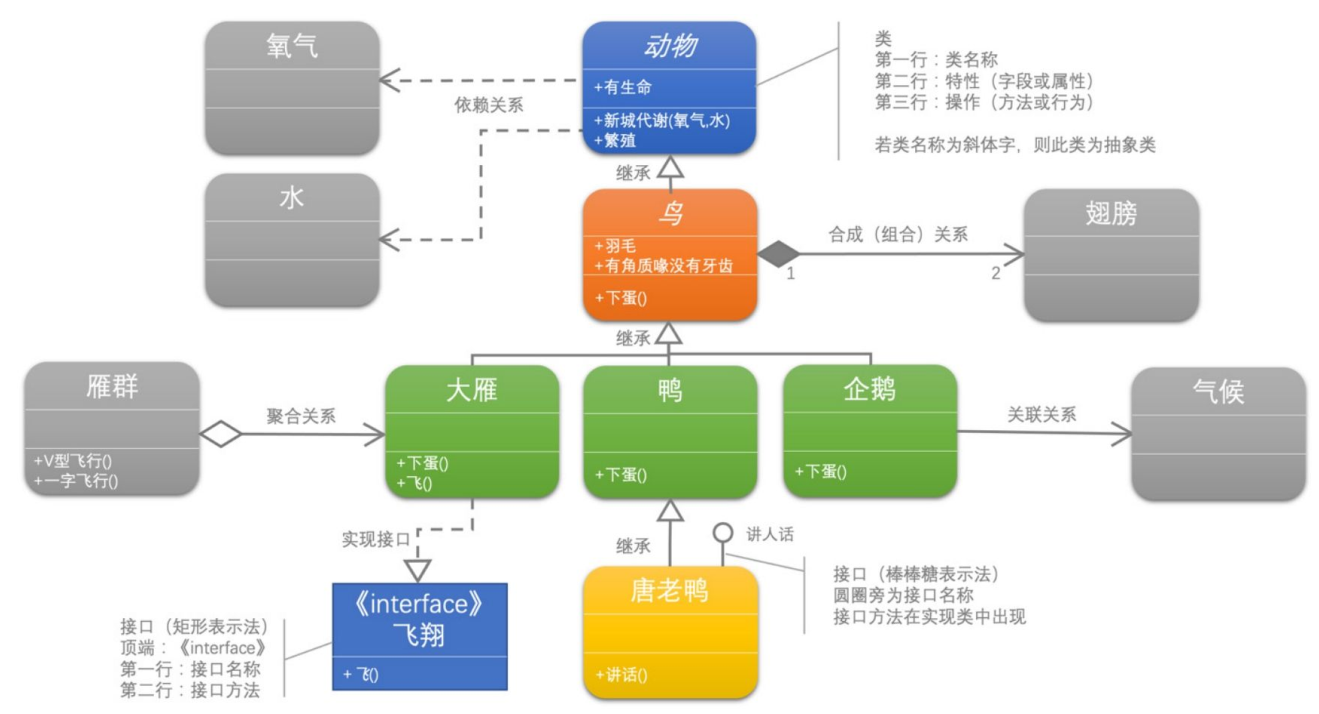

UML图

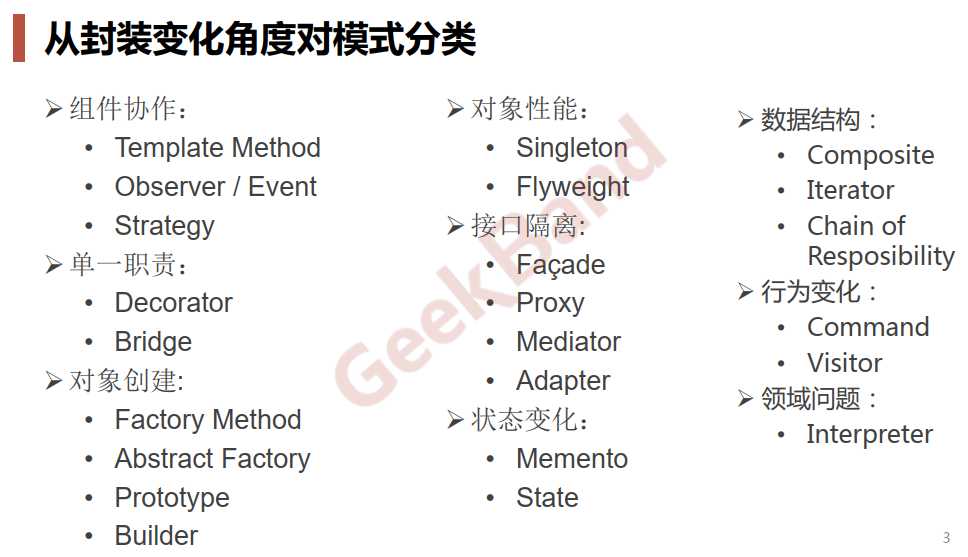

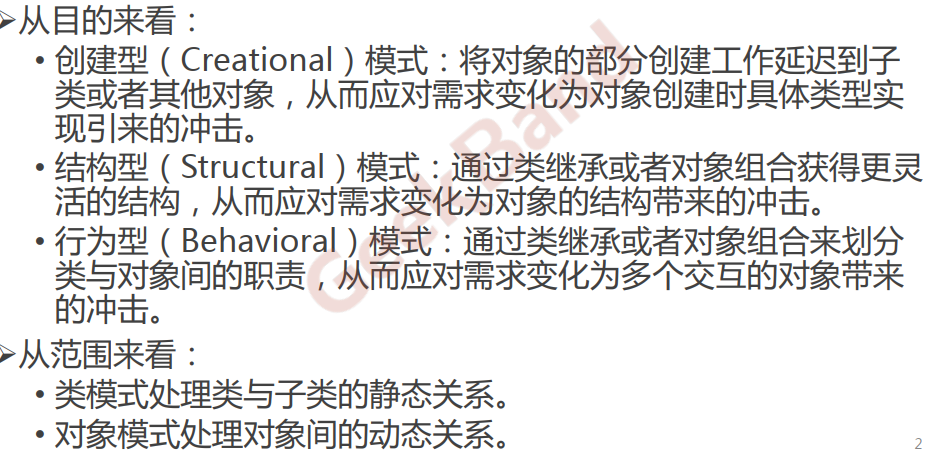

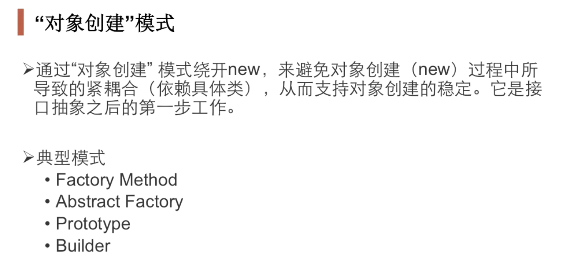

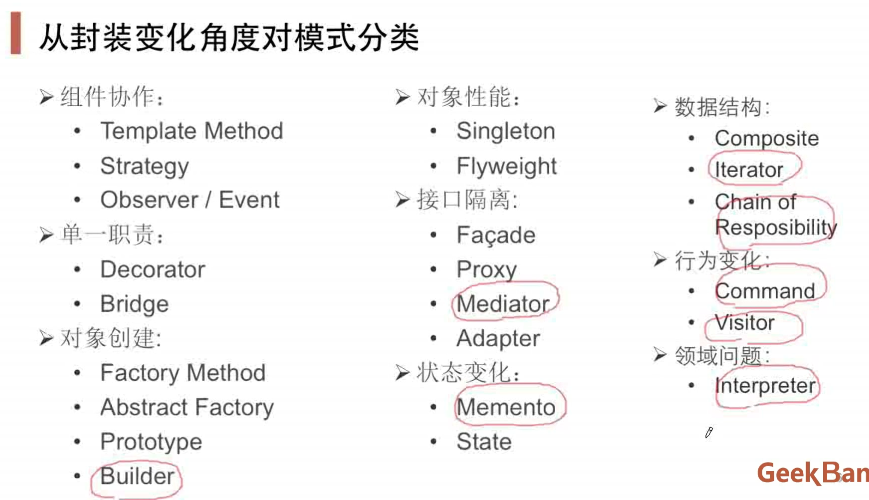

** 创建型模式的目的就是封装创建对象的变化；结构型模式封装的是对象之间的组合关系；行为型模式封装的是对象的行为变化。**

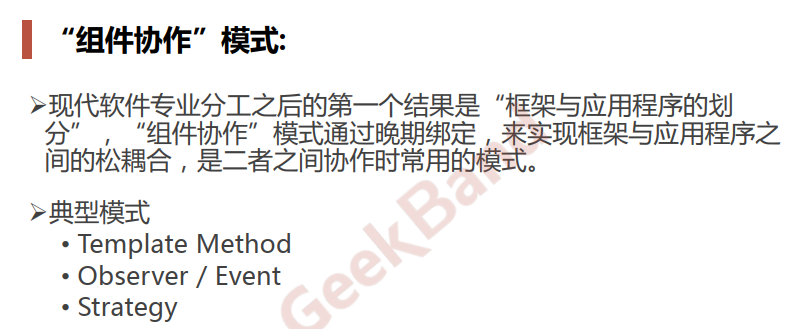

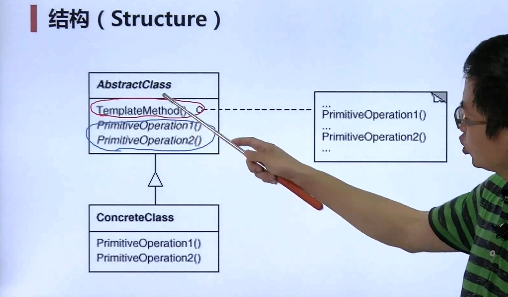

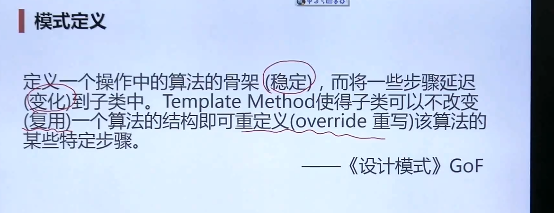

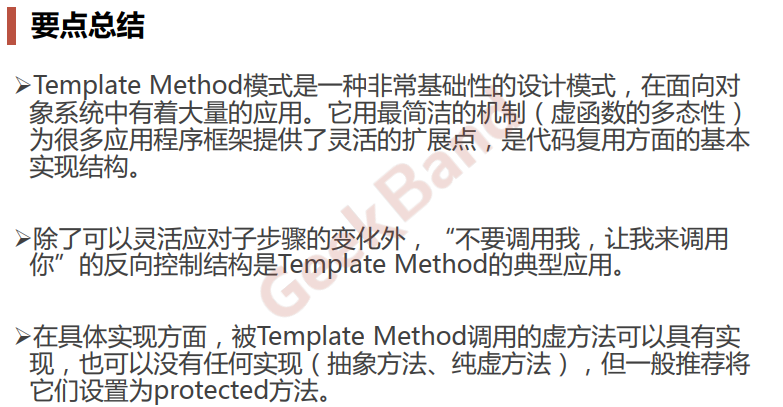

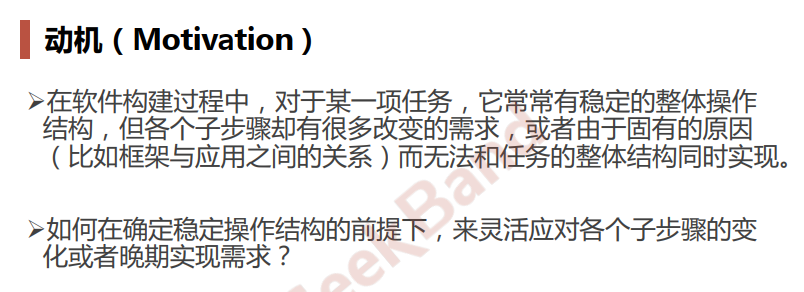

模板方法模式

延迟到子类:定义一个虚函数,然后子类实现虚函数,或者子类重写;

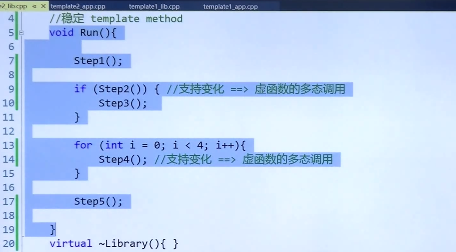

Run是一个模板稳定的代码写成非虚函数,变化的代码写成虚函数或者纯虚函数;

模板方法实现的要求就是,必须要有一个稳定的骨架,其中有变化

何谓扩展:继承+多态,继承+虚函数,虚函数的晚绑定机制

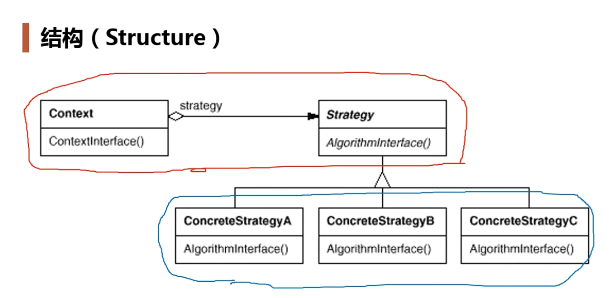

策略模式

复用性:编译为二进制代码的复用

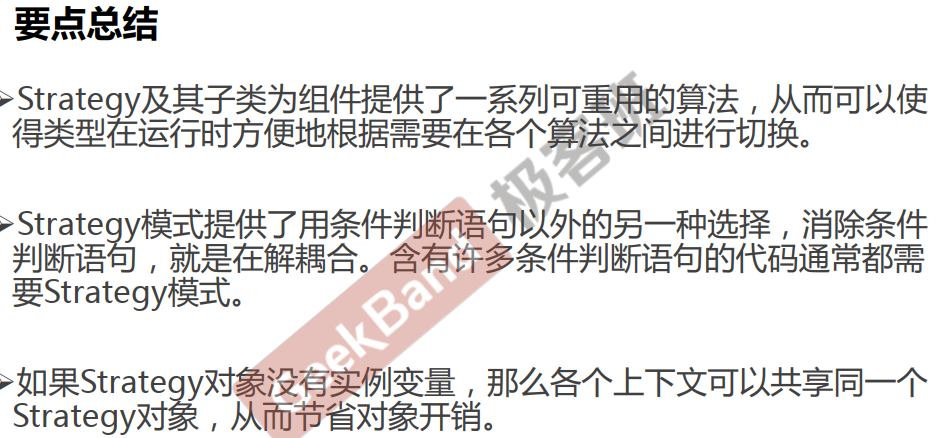

**总结: **使用if else/switch语句的情况下可以使用策略模式,除非是性别这种,为了扩展对应变化

class TaxStrategy{
public:
    virtual double Calculate(const Context& context)=0;
    virtual ~TaxStrategy(){}
};


class CNTax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};

class USTax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};

class DETax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};



//扩展
//*********************************
class FRTax : public TaxStrategy{
public:
	virtual double Calculate(const Context& context){
		//.........
	}
};


class SalesOrder{
private:
    TaxStrategy* strategy;//多态指针

public:
    SalesOrder(StrategyFactory* strategyFactory){
        this->strategy = strategyFactory->NewStrategy();
    }
    ~SalesOrder(){
        delete this->strategy;
    }

    public double CalculateTax(){
        //...
        Context context();

        double val =
            strategy->Calculate(context);
		//多态调用,依赖于SalesOrder构造函数中返回
		的strategy对象是那个国家的税法
        //...
    }

};

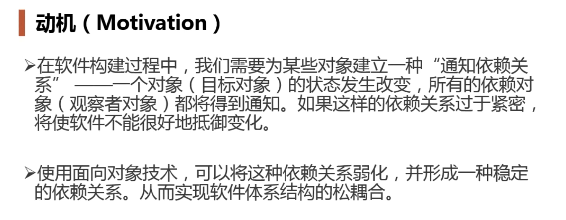

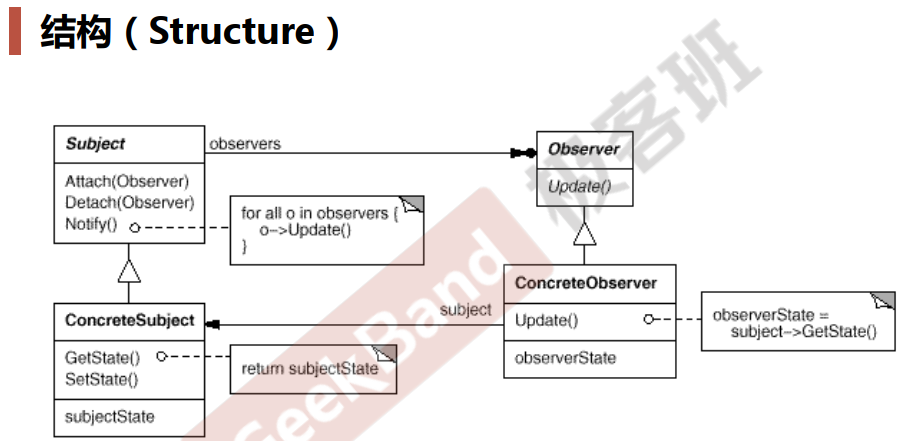

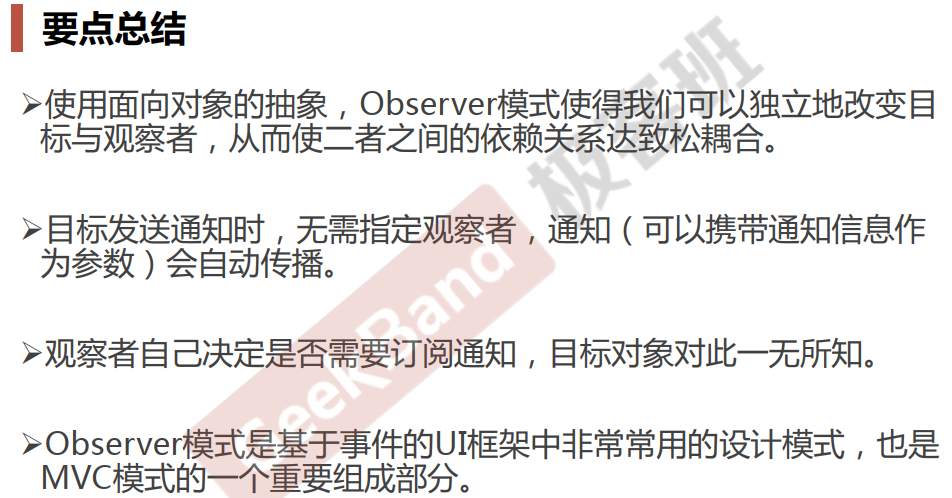

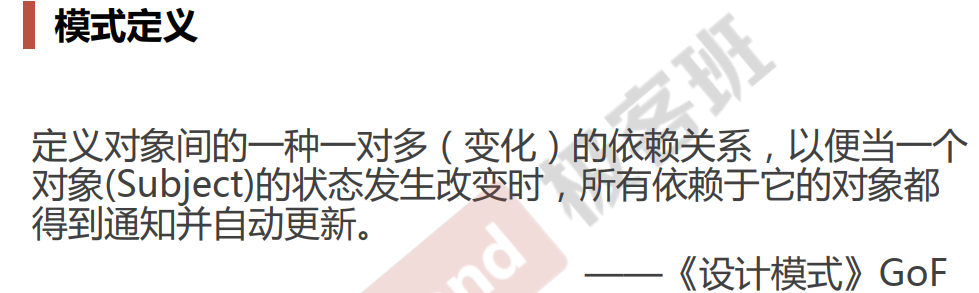

观察者模式

文件分割器,观察者为进度条,订阅文件分割的进度变化

//多继承推荐方式,继承一个类,后面继承自抽象接口
class MainForm : public Form, public IProgress
{
	TextBox* txtFilePath;
	TextBox* txtFileNumber;

	ProgressBar* progressBar;

public:
	void Button1_Click(){

		string filePath = txtFilePath->getText();
		int number = atoi(txtFileNumber->getText().c_str());

		ConsoleNotifier cn;//控制台观察者

		FileSplitter splitter(filePath, number);

		splitter.addIProgress(this); //订阅通知,将控制台观察者添加到观察者集合
		splitter.addIProgress(&cn)； //订阅通知

		splitter.split();

		splitter.removeIProgress(this);

	}

	virtual void DoProgress(float value){
		progressBar->setValue(value);
	}
};


class ConsoleNotifier : public IProgress {
public:
	virtual void DoProgress(float value){
		cout << ".";
	}
};

//抽象的进度表现方式,可以为饼状图,条形图等显示,方便扩展
class IProgress{
public:
	virtual void DoProgress(float value)=0;
	virtual ~IProgress(){}
};


class FileSplitter
{
	string m_filePath;
	int m_fileNumber;

// 抽象通知机制，支持多个观察者
List<IProgress*>  m_iprogressList;

public:
	FileSplitter(const string& filePath, int fileNumber) :
		m_filePath(filePath),
		m_fileNumber(fileNumber){

	}


	void split(){

		//1.读取大文件

		//2.分批次向小文件中写入
		for (int i = 0; i < m_fileNumber; i++){
			//...

			float progressValue = m_fileNumber;
			progressValue = (i + 1) / progressValue;
			onProgress(progressValue);//发送通知
		}

	}


	void addIProgress(IProgress* iprogress){
		m_iprogressList.push_back(iprogress);
	}

	void removeIProgress(IProgress* iprogress){
		m_iprogressList.remove(iprogress);
	}


protected:
	virtual void onProgress(float value){

		List<IProgress*>::iterator itor=m_iprogressList.begin();

		while (itor != m_iprogressList.end() )
			(*itor)->DoProgress(value); //更新进度条
			itor++;
		}
	}
};

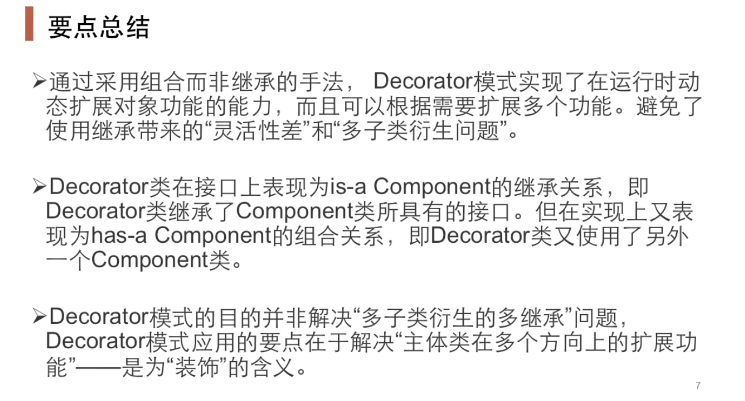

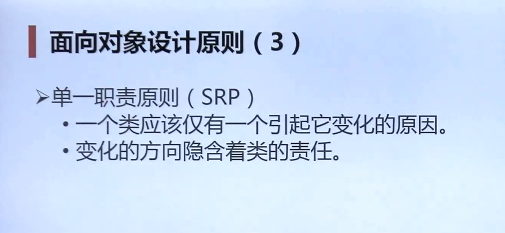

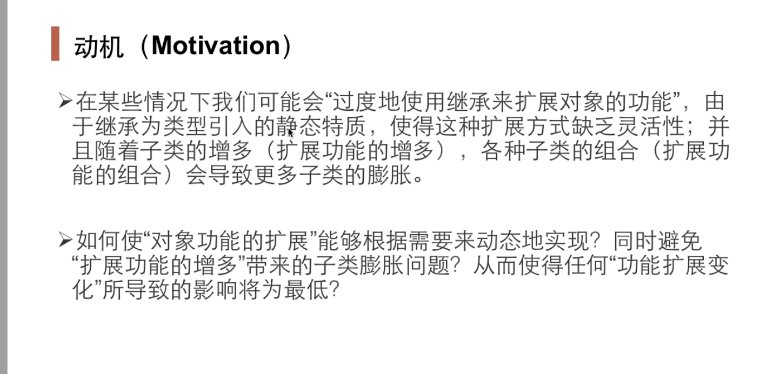

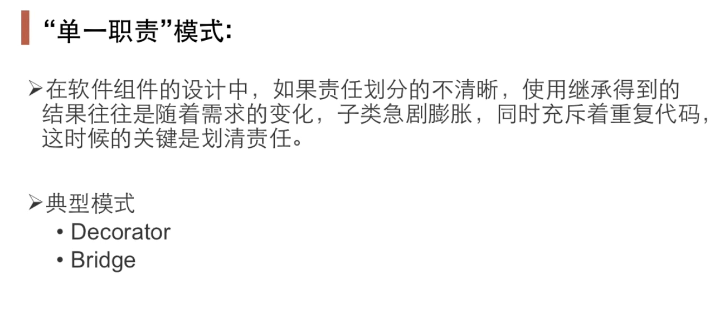

单一职责模式

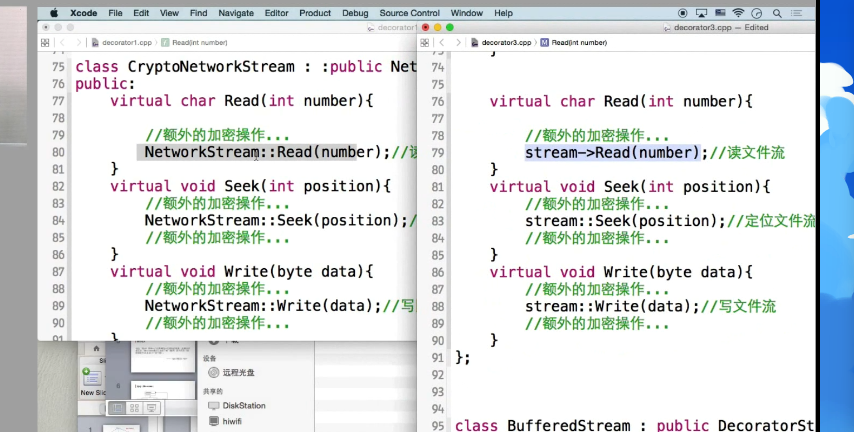

80行继承(静态特征) 79行组合(动态特征)

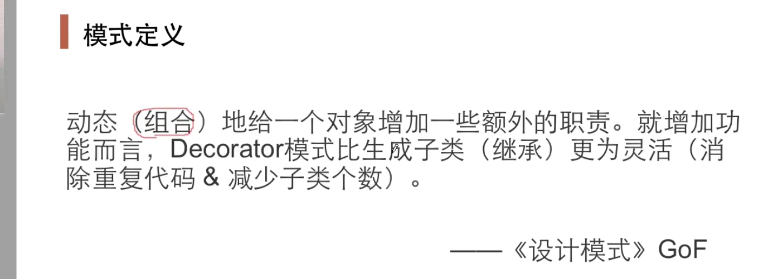

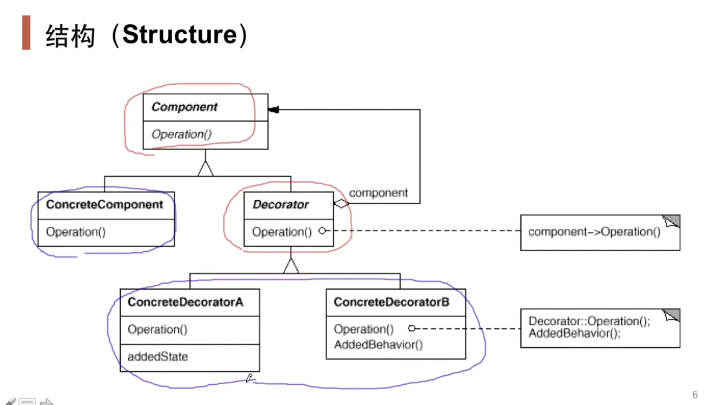

继承自父类,有字段,大概率是装饰器模式,继承和组合都在一个类中

//业务操作
class Stream{

public：
    virtual char Read(int number)=0;
    virtual void Seek(int position)=0;
    virtual void Write(char data)=0;

    virtual ~Stream(){}
};

//主体类
class FileStream: public Stream{
public:
    virtual char Read(int number){
        //读文件流
    }
    virtual void Seek(int position){
        //定位文件流
    }
    virtual void Write(char data){
        //写文件流
    }

};

class NetworkStream :public Stream{
public:
    virtual char Read(int number){
        //读网络流
    }
    virtual void Seek(int position){
        //定位网络流
    }
    virtual void Write(char data){
        //写网络流
    }

};

class MemoryStream :public Stream{
public:
    virtual char Read(int number){
        //读内存流
    }
    virtual void Seek(int position){
        //定位内存流
    }
    virtual void Write(char data){
        //写内存流
    }

};

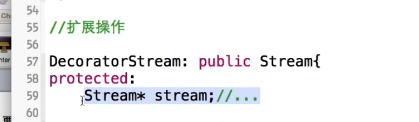

//扩展操作


class CryptoStream: public Stream {
    //把本来继承的父类编程字段
    Stream* stream;//...组合的形式,运行时装配(具有多态性),最后的对象取决于new

public:
    CryptoStream(Stream* stm):stream(stm){
    //:stream(stm) 是成员初始化列表。它表示，当创建DecoratorStream对象时
	//，其成员变量stream应该被初始化为传递给构造函数的参数stm的值
    }


    virtual char Read(int number){

        //额外的加密操作...
        stream->Read(number);//读文件流
    }
    virtual void Seek(int position){
        //额外的加密操作...
        stream::Seek(position);//定位文件流
        //额外的加密操作...
    }
    virtual void Write(byte data){
        //额外的加密操作...
        stream::Write(data);//写文件流
        //额外的加密操作...
    }
};



class BufferedStream : public Stream{

    Stream* stream;//...

public:
    BufferedStream(Stream* stm):stream(stm){

    }
    //...
};


void Process(){

    //运行时装配
    FileStream* s1=new FileStream();
    CryptoStream* s2=new CryptoStream(s1);

    BufferedStream* s3=new BufferedStream(s1);

    BufferedStream* s4=new BufferedStream(s2);



}

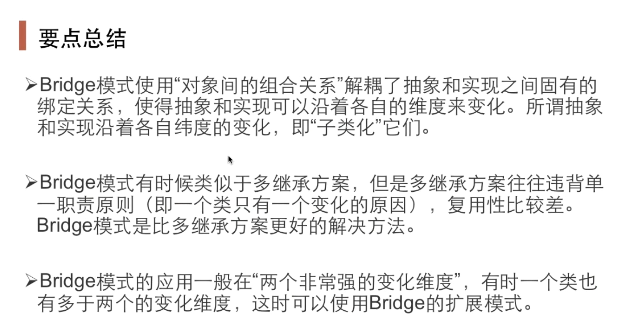

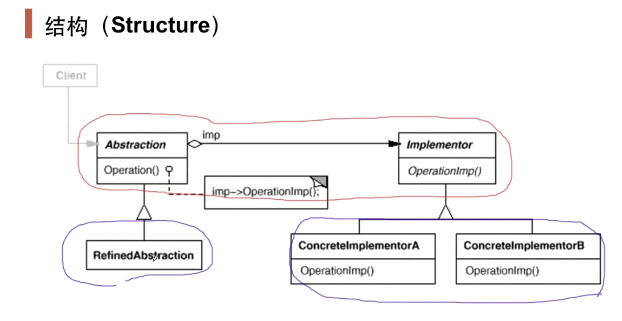

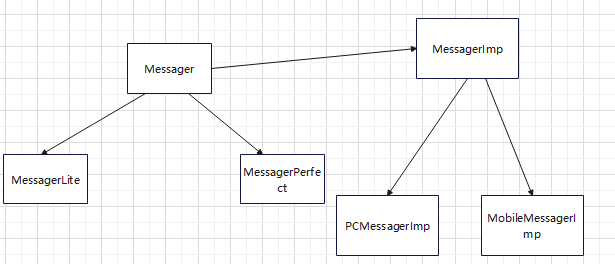

桥模式

为什么说指针可以多态

编译时装配和运行时装配理解
Messager *m = new MobileMessagerPerfect();

class Messager{
protected:
     MessagerImp* messagerImp;//...
public:
    virtual void Login(string username, string password)=0;
    virtual void SendMessage(string message)=0;
    virtual void SendPicture(Image image)=0;
    Messager(MessagerImp* mImp):messagerImp(mImp){

	}
    virtual ~Messager(){}
};

////平台实现
class MessagerImp{
public:
    virtual void PlaySound()=0;
    virtual void DrawShape()=0;
    virtual void WriteText()=0;
    virtual void Connect()=0;

    virtual MessagerImp(){}
};


//平台实现 n
class PCMessagerImp : public MessagerImp{
public:

    virtual void PlaySound(){
        //**********
    }
    virtual void DrawShape(){
        //**********
    }
    virtual void WriteText(){
        //**********
    }
    virtual void Connect(){
        //**********
    }
};

//平台实现
class MobileMessagerImp : public MessagerImp{
public:

    virtual void PlaySound(){
        //==========
    }
    virtual void DrawShape(){
        //==========
    }
    virtual void WriteText(){
        //==========
    }
    virtual void Connect(){
        //==========
    }
};



//业务抽象 m

//类的数目：1+n+m

class MessagerLite :public Messager {

     MessagerImp* messagerImp;//...
	 //子类构造函数调用父类构造
public:

    virtual void Login(string username, string password){

        messagerImp->Connect();
        //........
    }
    virtual void SendMessage(string message){

        messagerImp->WriteText();
        //........
    }
    virtual void SendPicture(Image image){

        messagerImp->DrawShape();
        //........
    }
};



class MessagerPerfect  :public Messager {

    MessagerImp* messagerImp;//...
public:
    MessagerPerfect(Messager* messager):messagerImp(messager){

	}

    virtual void Login(string username, string password){

        messagerImp->PlaySound();
        //********
        messagerImp->Connect();
        //........
    }
    virtual void SendMessage(string message){

        messagerImp->PlaySound();
        //********
        messagerImp->WriteText();
        //........
    }
    virtual void SendPicture(Image image){

        messagerImp->PlaySound();
        //********
        messagerImp->DrawShape();
        //........
    }
};




void Process(){
    //运行时装配
	//不理解
    MessagerImp* mImp=new PCMessagerImp();
    Messager *m =new Messager(mImp);
}

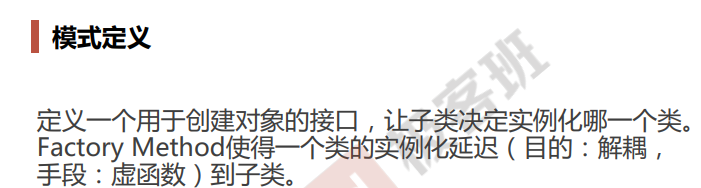

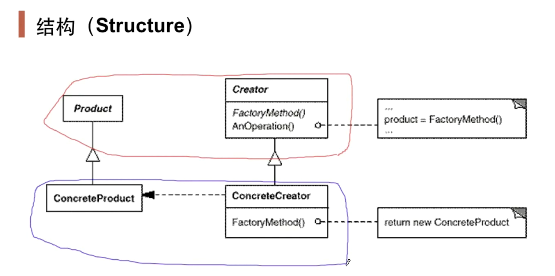

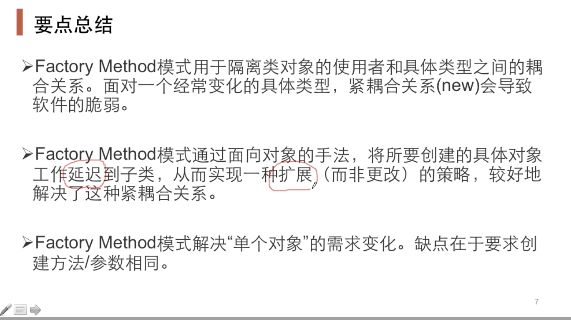

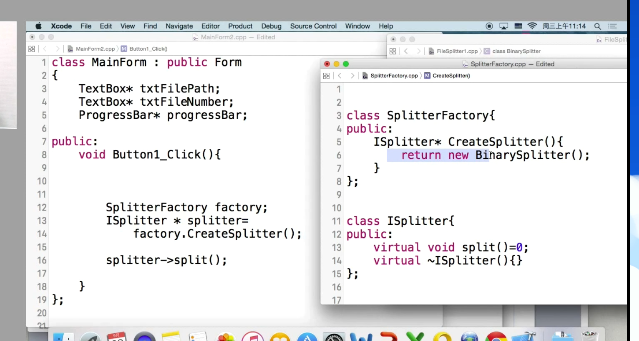

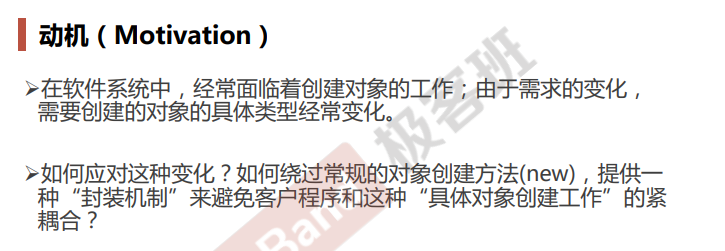

工厂方法模式

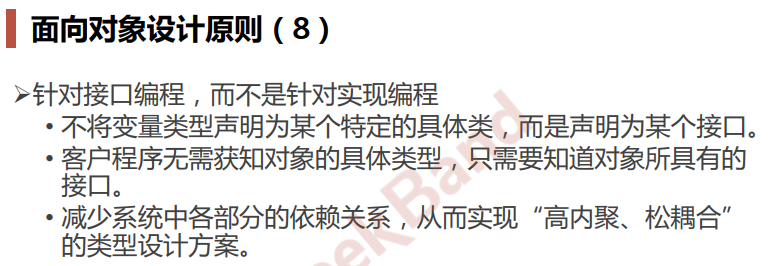

应对需求的变化,应当将对象的声明创建为抽象类型或者接口,尽量避免具体实现类的声明对象,即为面向接口编程

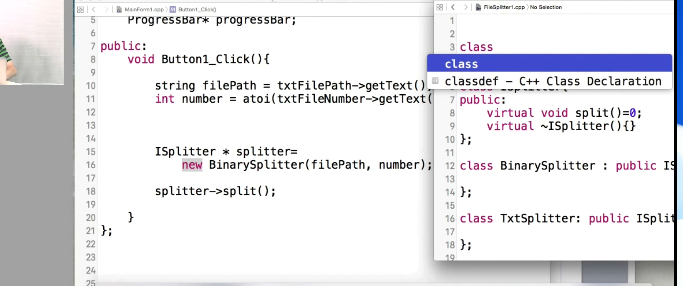

第16行依然是具体类的实现,仍然依赖具体类,


有改进,但还是编译时依赖,运行时依赖需要用到virtual

FileSpiltter.cpp

//具体类ConcreteProduct
class BinarySplitter : public ISplitter{

};

class TxtSplitter: public ISplitter{

};

class PictureSplitter: public ISplitter{

};

class VideoSplitter: public ISplitter{

};

//具体工厂ConcreteCreator
class BinarySplitterFactory: public SplitterFactory{
public:
    virtual ISplitter* CreateSplitter(){
        return new BinarySplitter();
    }
};

class TxtSplitterFactory: public SplitterFactory{
public:
    virtual ISplitter* CreateSplitter(){
        return new TxtSplitter();
    }
};

class PictureSplitterFactory: public SplitterFactory{
public:
    virtual ISplitter* CreateSplitter(){
        return new PictureSplitter();
    }
};

class VideoSplitterFactory: public SplitterFactory{
public:
    virtual ISplitter* CreateSplitter(){
        return new VideoSplitter();
    }
};

ISplitterFactory.cpp


//抽象类Product
class ISplitter{
public:
    virtual void split()=0;
    virtual ~ISplitter(){}
};


//工厂基类Creator
class SplitterFactory{
public:
    virtual ISplitter* CreateSplitter()=0;
    virtual ~SplitterFactory(){}
};

MainForm.cpp


class MainForm : public Form
{
    SplitterFactory*  factory;//工厂

public:
    //MainForm类中不依赖具体的类,这里构造函数中根据外部传入的具体工厂,
    MainForm(SplitterFactory*  factory){
        this->factory=factory;
    }

	void Button1_Click(){

        //利用虚继承在运行时实现多态new
		ISplitter * splitter=
            factory->   (); //多态new

        splitter->split();

	}
};

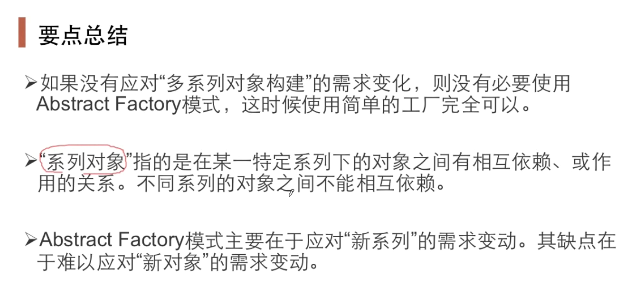

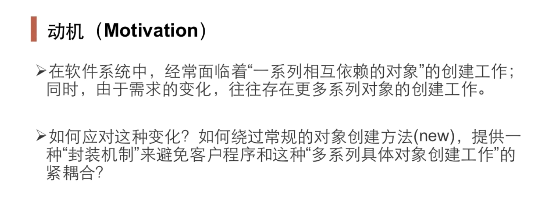

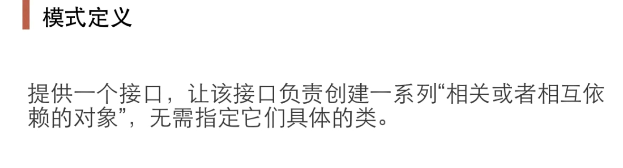

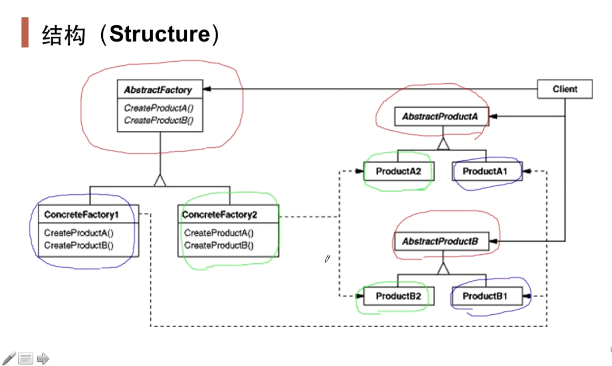

抽象工厂模式

一系列操作对象之间有相互关联性,比如说sql中command和connection操作;是一系列操作,不能分开

//数据库访问有关的基类
class IDBConnection{//AbstractProductB

};

//AbstractProductA
class IDBCommand{

};

class IDataReader{

};

//AbstractFactory
class IDBFactory{
public:
    virtual IDBConnection* CreateDBConnection()=0;
    virtual IDBCommand* CreateDBCommand()=0;
    virtual IDataReader* CreateDataReader()=0;

};


//支持SQL Server
class SqlConnection: public IDBConnection{

};
class SqlCommand: public IDBCommand{

};
class SqlDataReader: public IDataReader{

};

//ConcreteFactory1

class SqlDBFactory:public IDBFactory{
public:
    virtual IDBConnection* CreateDBConnection()=0;
    virtual IDBCommand* CreateDBCommand()=0;
    virtual IDataReader* CreateDataReader()=0;

};

//支持Oracle
class OracleConnection: public IDBConnection{

};

class OracleCommand: public IDBCommand{

};

class OracleDataReader: public IDataReader{

};



class EmployeeDAO{
    IDBFactory* dbFactory;

public:
    vector<EmployeeDO> GetEmployees(){
        IDBConnection* connection =
            dbFactory->CreateDBConnection();
        connection->ConnectionString("...");

        IDBCommand* command =
            dbFactory->CreateDBCommand();
        command->CommandText("...");
        command->SetConnection(connection); //关联性

        IDBDataReader* reader = command->ExecuteReader(); //关联性
        while (reader->Read()){

        }

    }
};

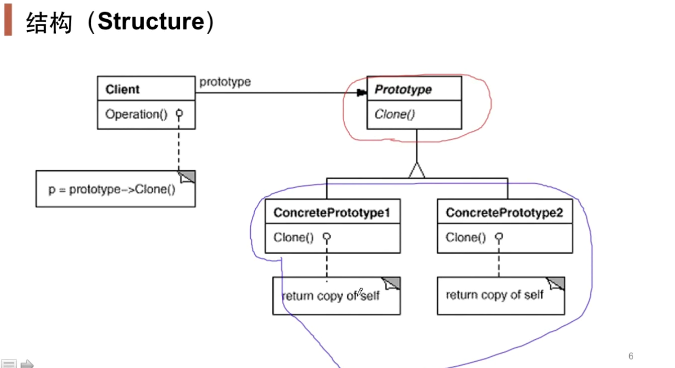

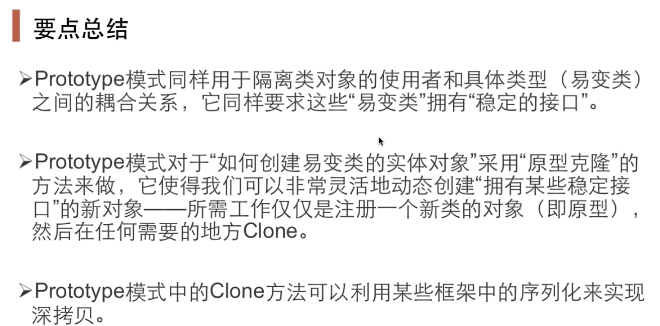

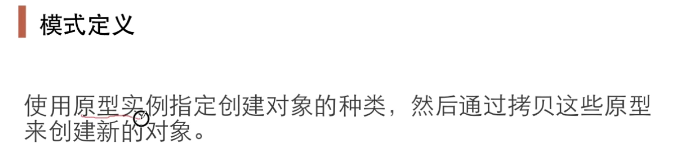

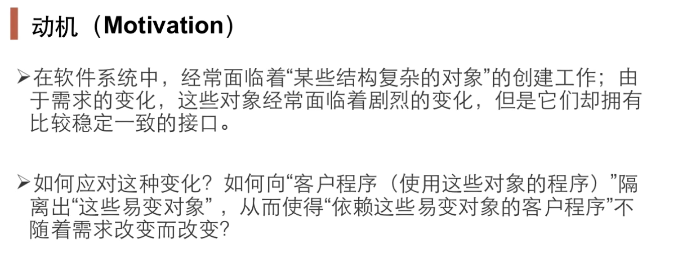

原型模式

通过深克隆

什么时候用:和工厂方法区别,当对象比较复杂的时候,方便实现.直接克隆实现

Prototype.cpp

//抽象类
class ISplitter{
public:
    virtual void split()=0;
    virtual ISplitter* clone()=0; //通过克隆自己来创建对象

    virtual ~ISplitter(){}

};

ConcretePrototype.cpp


//具体类
class BinarySplitter : public ISplitter{
public:
    virtual ISplitter* clone(){
		//调用拷贝函数生成克隆对象 *this,对象本身
        return new BinarySplitter(*this);
    }
};

class TxtSplitter: public ISplitter{
public:
    virtual ISplitter* clone(){
        return new TxtSplitter(*this);
    }
};

class PictureSplitter: public ISplitter{
public:
    virtual ISplitter* clone(){
        return new PictureSplitter(*this);
    }
};

class VideoSplitter: public ISplitter{
public:
    virtual ISplitter* clone(){
        return new VideoSplitter(*this);
    }
};

Client.cpp

class MainForm : public Form
{
    ISplitter*  prototype;//原型对象

public:

    MainForm(ISplitter*  prototype){
        this->prototype=prototype;
    }

	void Button1_Click(){

//splitter是一个创建的新对象

		ISplitter * splitter=
            prototype->clone(); //克隆原型

        splitter->split();



	}
};

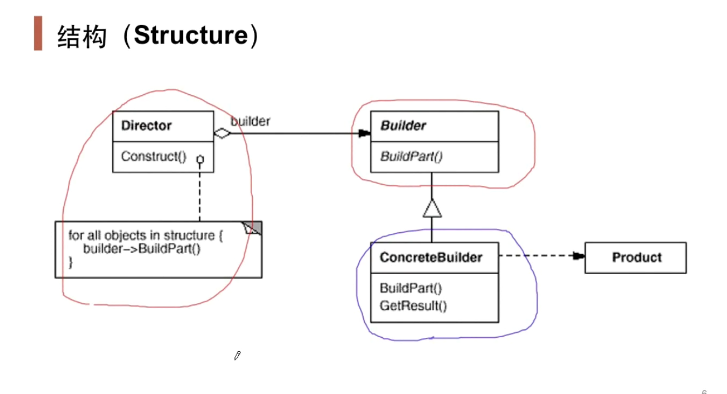

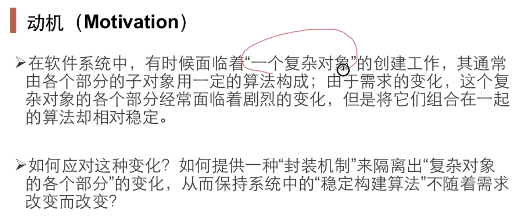

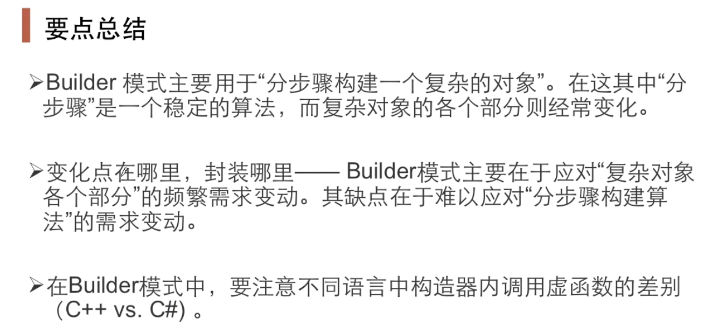

构建器模式

类似于创建过程相同,可以创建不同的对象,例如;泡茶和泡咖啡的过程基本差不多,只是原材料不通,可以通过相同的创建过程创建出不同的对象

class House{
    //....
	//如果在构造函数中调用虚函数,是静态绑定
};
//Builder
class HouseBuilder {
public:
    House* GetResult(){
        return pHouse;
    }
    virtual ~HouseBuilder(){}
protected:

    House* pHouse;
	virtual void BuildPart1()=0;
    virtual void BuildPart2()=0;
    virtual void BuildPart3()=0;
    virtual void BuildPart4()=0;
    virtual void BuildPart5()=0;

};

class StoneHouse: public House{

};

class StoneHouseBuilder: public HouseBuilder{
protected:

    virtual void BuildPart1(){
        //pHouse->Part1 = ...;
    }
    virtual void BuildPart2(){

    }
    virtual void BuildPart3(){

    }
    virtual void BuildPart4(){

    }
    virtual void BuildPart5(){

    }

};

//稳定的  Director
class HouseDirector{

public:
    HouseBuilder* pHouseBuilder;

    HouseDirector(HouseBuilder* pHouseBuilder){
        this->pHouseBuilder=pHouseBuilder;
    }

    House* Construct(){

        pHouseBuilder->BuildPart1();

        for (int i = 0; i < 4; i++){
            pHouseBuilder->BuildPart2();
        }

        bool flag=pHouseBuilder->BuildPart3();

        if(flag){
            pHouseBuilder->BuildPart4();
        }

        pHouseBuilder->BuildPart5();

        return pHouseBuilder->GetResult();
    }
};

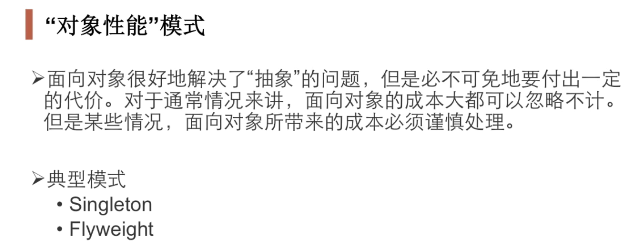

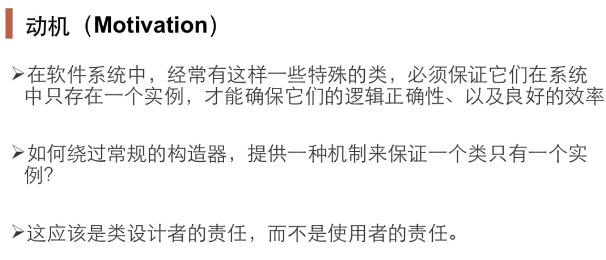

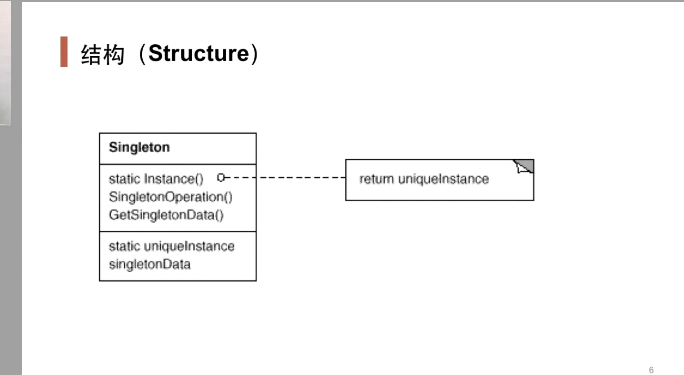

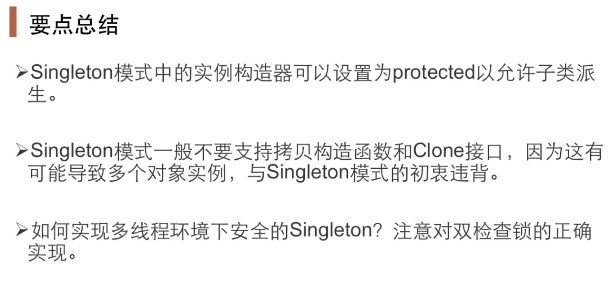

单例模式

目的是为了优化性能;

class Singleton{
private:
    Singleton();
    Singleton(const Singleton& other);
public:
    static Singleton* getInstance();
    static Singleton* m_instance;
};

Singleton* Singleton::m_instance=nullptr;

//单线程可以用
//线程非安全版本
Singleton* Singleton::getInstance() {
    if (m_instance == nullptr) {
        m_instance = new Singleton();
    }
    return m_instance;
}






//线程安全版本，但锁的代价过高
Singleton* Singleton::getInstance() {
    Lock lock;//加锁,方法结束后开锁
    if (m_instance == nullptr) {
        m_instance = new Singleton();
    }
    return m_instance;
}


//不建议使用
//双检查锁，但由于内存读写reorder不安全
Singleton* Singleton::getInstance() {

    if(m_instance==nullptr){
        Lock lock;
        if (m_instance == nullptr) {
            m_instance = new Singleton();
        }
    }
    return m_instance;
}




//C++ 11版本之后的跨平台实现 (volatile)
std::atomic<Singleton*> Singleton::m_instance;
std::mutex Singleton::m_mutex;

Singleton* Singleton::getInstance() {
    Singleton* tmp = m_instance.load(std::memory_order_relaxed);
    std::atomic_thread_fence(std::memory_order_acquire);//获取内存fence
    if (tmp == nullptr) {
        std::lock_guard<std::mutex> lock(m_mutex);
        tmp = m_instance.load(std::memory_order_relaxed);
        if (tmp == nullptr) {
            tmp = new Singleton;
            std::atomic_thread_fence(std::memory_order_release);//释放内存fence
            m_instance.store(tmp, std::memory_order_relaxed);
        }
    }
    return tmp;
}

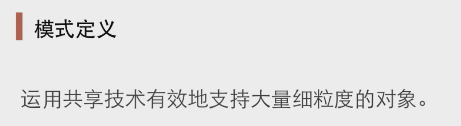

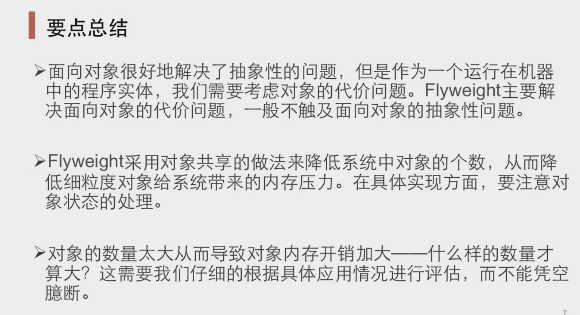

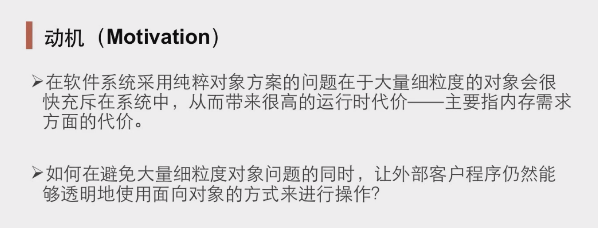

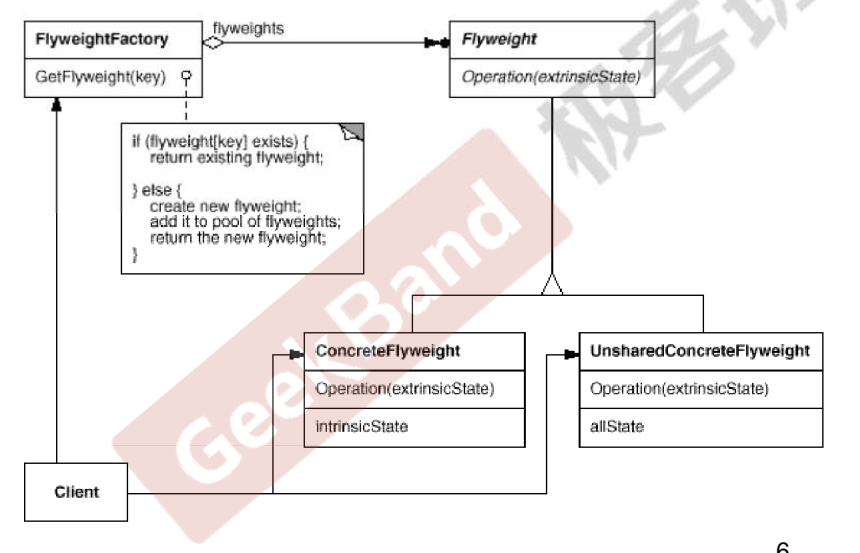

亨元模式

创建对象池,复用对象,降低对象的创建次数

class Font {
private:

    //unique object key
    string key;

    //object state
    //....

public:
    Font(const string& key){
        //...
    }
};
ß

//对象池,保障对象的唯一,避免修改对象
class FontFactory{
private:
    map<string,Font* > fontPool;

public:
    Font* GetFont(const string& key){

        map<string,Font*>::iterator item=fontPool.find(key);
        //查找到对象
        if(item!=footPool.end()){
            return fontPool[key];
        }
        else{
        //没有查找到,创建对象并添加到对象池中
            Font* font = new Font(key);
            fontPool[key]= font;
            return font;
        }

    }

    void clear(){
        //...
    }
};

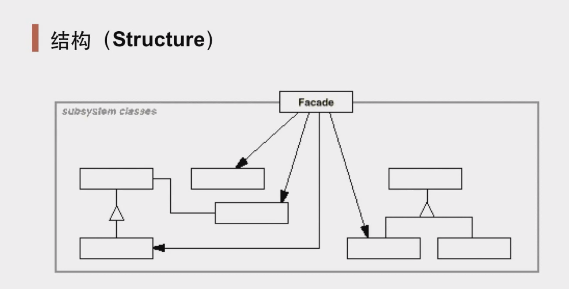

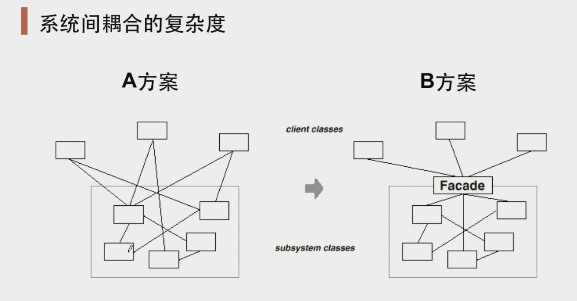

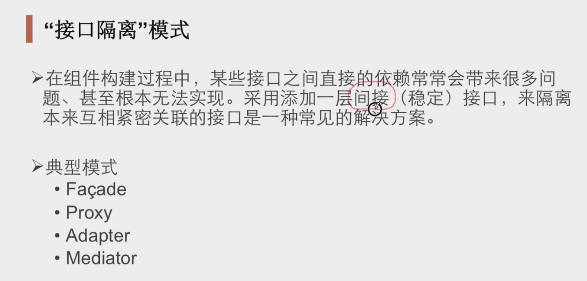

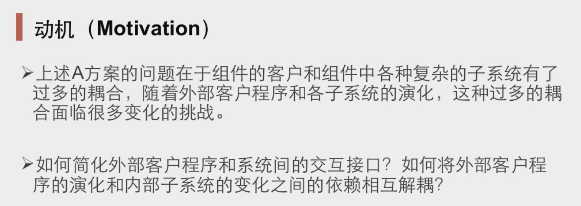

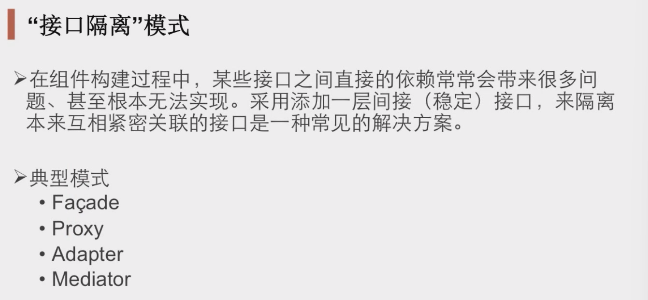

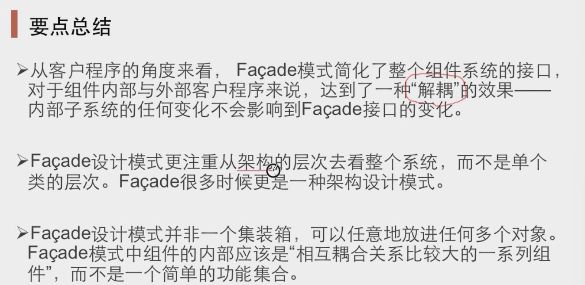

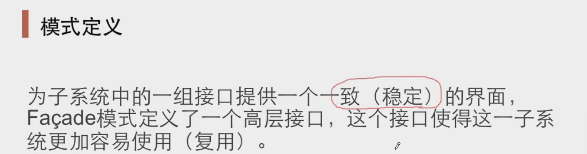

外观模式

子系统和外部的一种解耦方式.数据访问层就是一个经典的外观设计模式,用一个稳定的接口,隔离变化

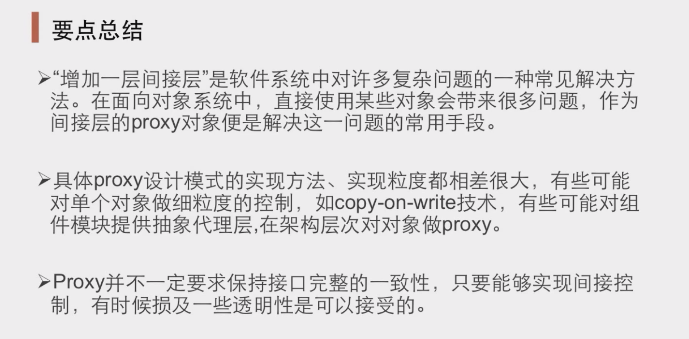

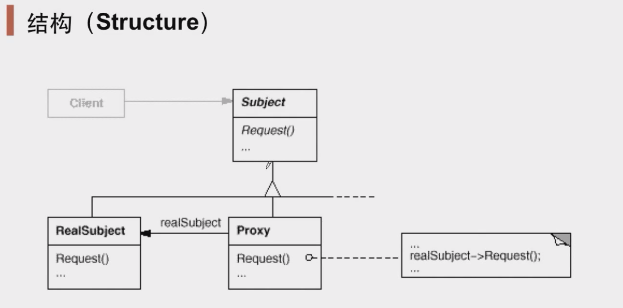

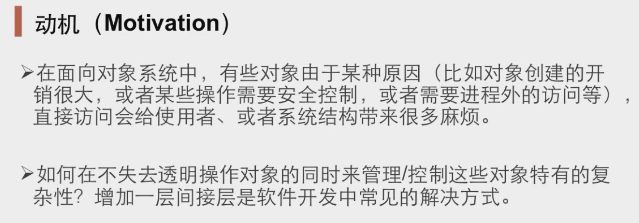

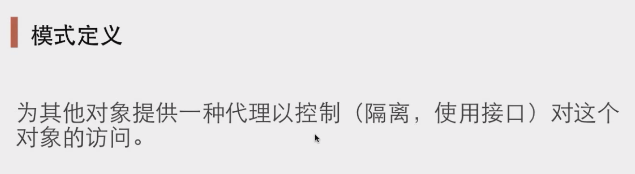

代理模式

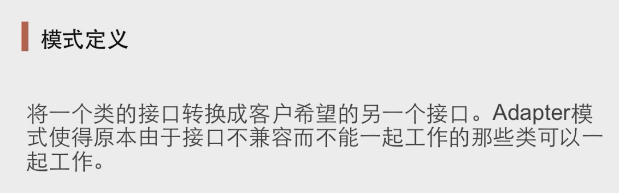

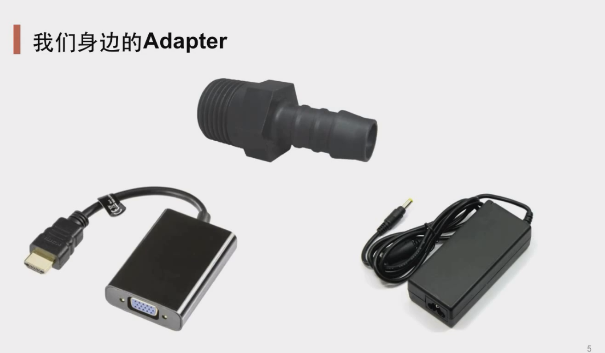

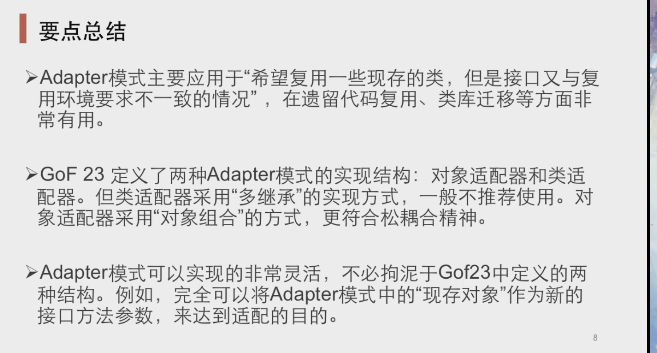

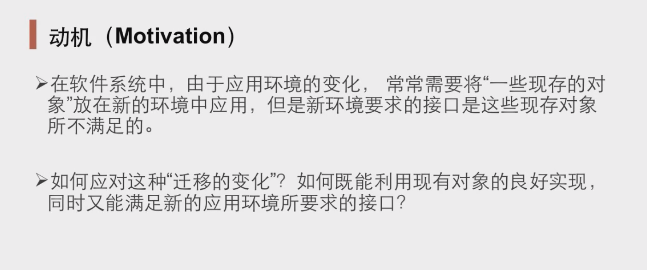

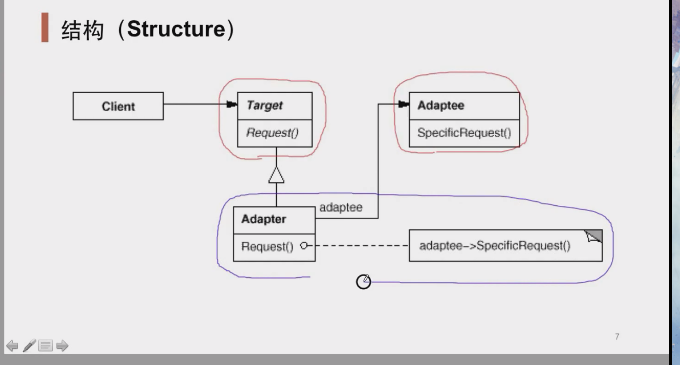

适配器模式

类适配器用的很少,建议使用对象适配器

//目标接口（新接口）
class ITarget{
public:
    virtual void process()=0;
};

//遗留接口（老接口）
class IAdaptee{
public:
    virtual void foo(int data)=0;
    virtual int bar()=0;
};

//遗留类型
class OldClass: public IAdaptee{
    //....
};

//对象适配器
class Adapter: public ITarget{ //继承
protected:
    IAdaptee* pAdaptee;//组合

public:

    Adapter(IAdaptee* pAdaptee){
        this->pAdaptee=pAdaptee;
    }

    virtual void process(){
        int data=pAdaptee->bar();
        pAdaptee->foo(data);

    }


};


//类适配器
class Adapter: public ITarget,
               protected OldClass{ //多继承


}


int main(){
    IAdaptee* pAdaptee=new OldClass();


    ITarget* pTarget=new Adapter(pAdaptee);
    pTarget->process();


}

class stack{
    deqeue container;

};

class queue{
    deqeue container;

};

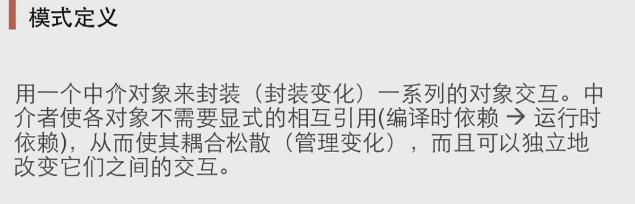

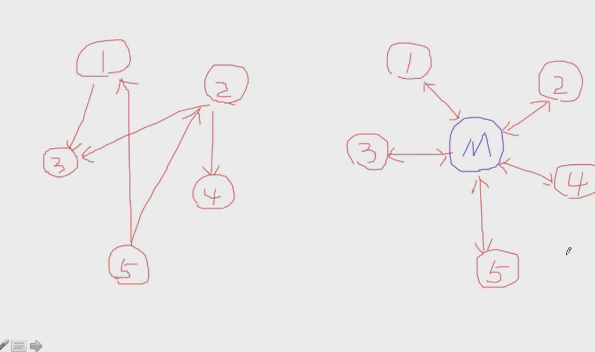

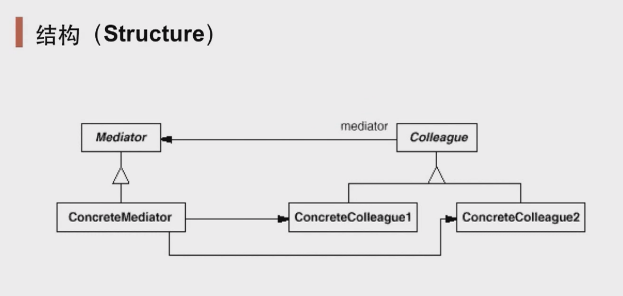

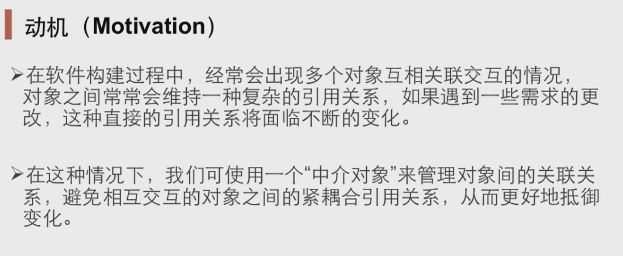

中介者模式

数据元素和界面元素之间通过界面绑定(M)

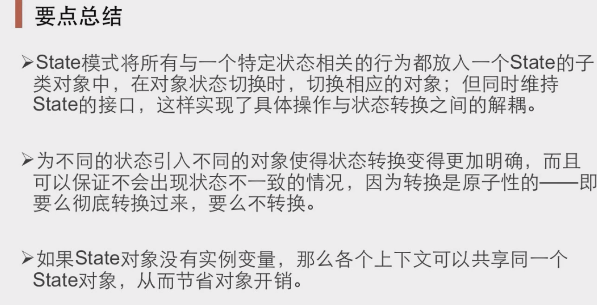

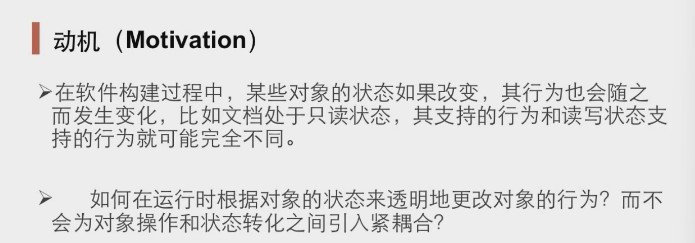

状态模式

state1.cpp

enum NetworkState
{
    Network_Open,
    Network_Close,
    Network_Connect,
};

class NetworkProcessor{

    NetworkState state;

public:

    void Operation1(){
        if (state == Network_Open){

            //**********
            state = Network_Close;
        }
        else if (state == Network_Close){

            //..........
            state = Network_Connect;
        }
        else if (state == Network_Connect){

            //$$$$$$$$$$
            state = Network_Open;
        }
    }

    public void Operation2(){

        if (state == Network_Open){

            //**********
            state = Network_Connect;
        }
        else if (state == Network_Close){

            //.....
            state = Network_Open;
        }
        else if (state == Network_Connect){

            //$$$$$$$$$$
            state = Network_Close;
        }

    }

    public void Operation3(){

    }
};

state2.cpp


class NetworkState{

public:
    NetworkState* pNext;
    virtual void Operation1()=0;
    virtual void Operation2()=0;
    virtual void Operation3()=0;

    virtual ~NetworkState(){}
};


class OpenState :public NetworkState{

    static NetworkState* m_instance;
public:
    static NetworkState* getInstance(){
        if (m_instance == nullptr) {
            m_instance = new OpenState();
        }
        return m_instance;
    }

    void Operation1(){

        //**********
        pNext = CloseState::getInstance();
    }

    void Operation2(){

        //..........
        pNext = ConnectState::getInstance();
    }

    void Operation3(){

        //$$$$$$$$$$
        pNext = OpenState::getInstance();
    }


};

class CloseState:public NetworkState{ }
//...


class NetworkProcessor{

    NetworkState* pState;

public:

    NetworkProcessor(NetworkState* pState){

        this->pState = pState;
    }

    void Operation1(){
        //...
        pState->Operation1();
        pState = pState->pNext;
        //...
    }

    void Operation2(){
        //...
        pState->Operation2();
        pState = pState->pNext;
        //...
    }

    void Operation3(){
        //...
        pState->Operation3();
        pState = pState->pNext;
        //...
    }

};

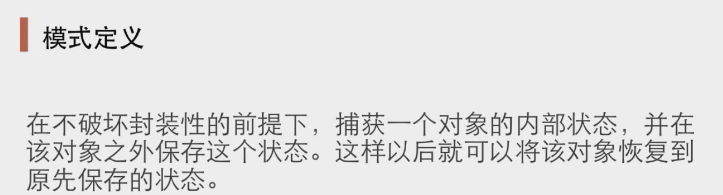

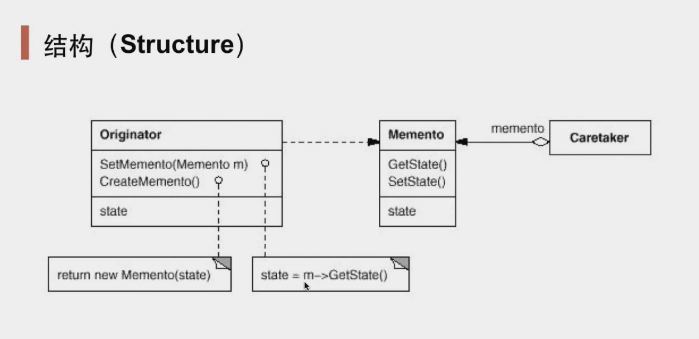

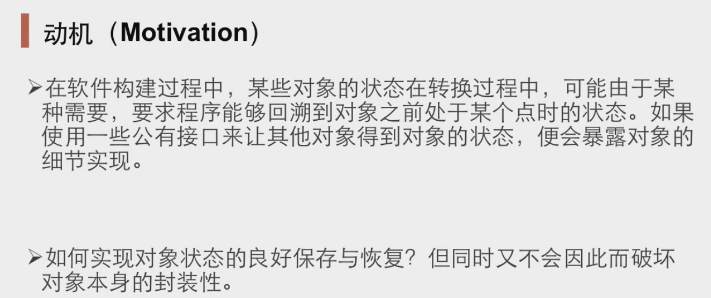

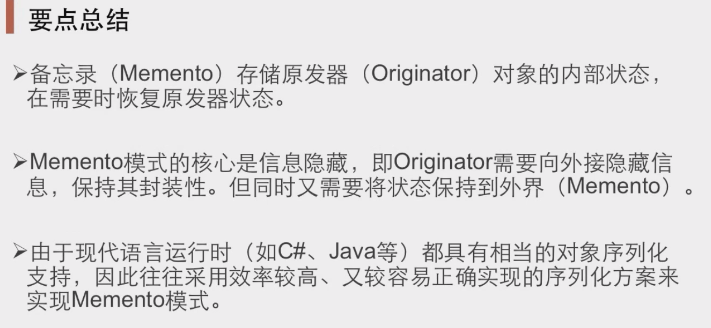

备忘录模式

CreateMemento(_)创建备忘录,SetMemento(Memento m)返回备忘录对象,Caretaker使用备忘录

//不改变这个类的封装性
class Memento
{
    string state;
    //..
public:
    Memento(const string & s) : state(s) {}
    string getState() const { return state; }
    void setState(const string & s) { state = s; }
};



class Originator
{
    string state;
    //....
public:
    Originator() {}
	//捕获一个对象的状态 ,存储到备忘录
    Memento createMomento() {
        Memento m(state);//当前内存状态拍照
        return m;
    }
    void setMomento(const Memento & m) {
        state = m.getState();
    }
};



int main()
{
    Originator orginator;

    //捕获对象状态，存储到备忘录
    Memento mem = orginator.createMomento();

    //... 改变orginator状态

    //从备忘录中恢复
    orginator.setMomento(memento);

}

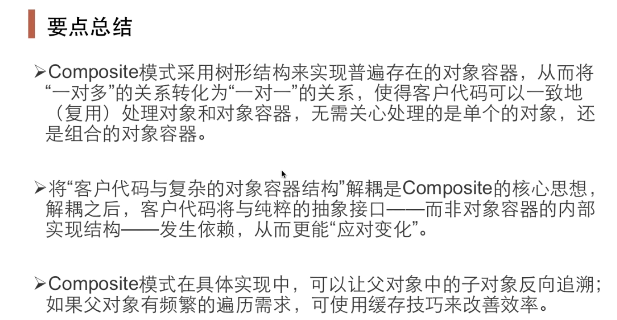

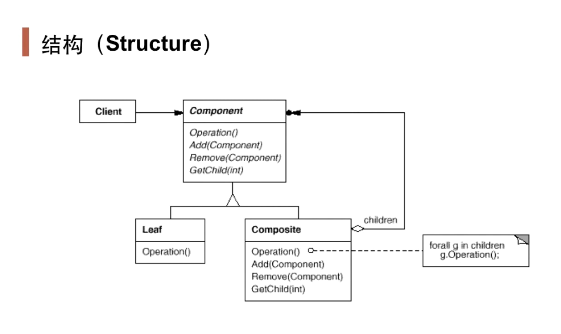

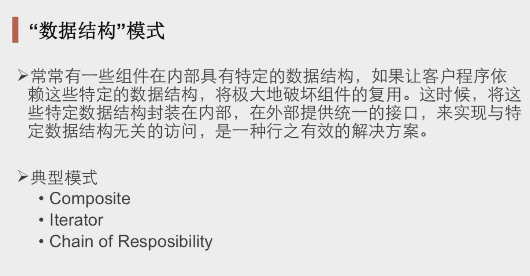

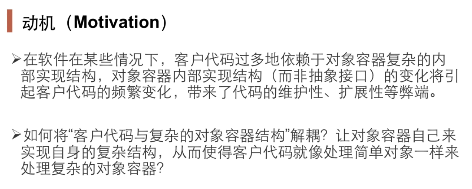

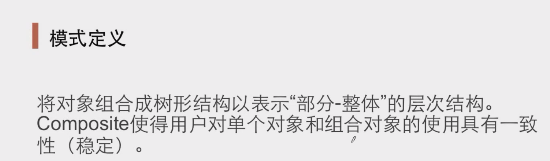

组合模式

核心是用是用树形结构解耦了内部对象和外部对象之间的关系

#include <iostream>
#include <list>
#include <string>
#include <algorithm>

using namespace std;

//抽象接口
class Component
{
public:
    virtual void process() = 0;
    virtual ~Component(){}
};

//树节点
class Composite : public Component{

    string name;
    list<Component*> elements;
public:
    Composite(const string & s) : name(s) {}

    void add(Component* element) {
        elements.push_back(element);
    }
    void remove(Component* element){
        elements.remove(element);
    }

    void process(){

        //1. process current node


        //2. process leaf nodes
        for (auto &e : elements)
			e->process(); //多态调用(递归调用),将对象的访问放在类内,使得处理一致

    }
};

//叶子节点
class Leaf : public Component{
    string name;
public:
    Leaf(string s) : name(s) {}

    void process(){
        //process current node
    }
};

//客户程序
void Invoke(Component & c){
    //...
    c.process();
    //...
}


int main()
{

    Composite root("root");
    Composite treeNode1("treeNode1");
    Composite treeNode2("treeNode2");
    Composite treeNode3("treeNode3");
    Composite treeNode4("treeNode4");
    Leaf leat1("left1");
    Leaf leat2("left2");

    root.add(&treeNode1);
    treeNode1.add(&treeNode2);
    treeNode2.add(&leaf1);

    root.add(&treeNode3);
    treeNode3.add(&treeNode4);
    treeNode4.add(&leaf2);

    process(root);
    process(leaf2);
    process(treeNode3);

}

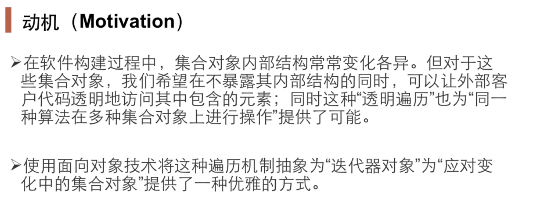

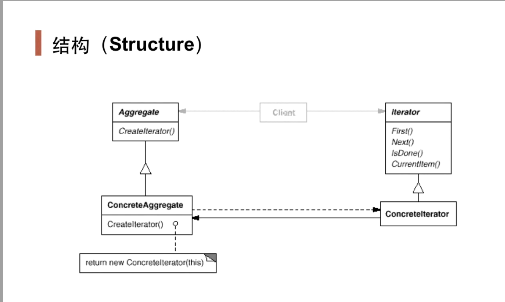

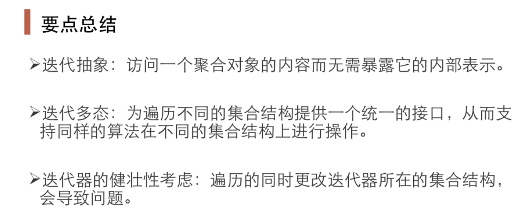

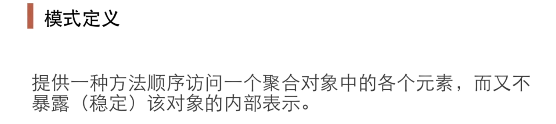

迭代器模式

集合内部结构可以包含多种数据结构,例如树,队列,栈,数组等

不暴露,就是隔离变化

在c++中过时了,现在较多使用泛型编程STL提供的迭代器,在java中编译时迭代器有使用这种面向对象模式的迭代器,性能较低,不如运行时迭代器(如STL泛型编程所采用的迭代器)

//一面向对象模式实现的迭代器


template<typename T>
class Iterator
{
public:
    virtual void first() = 0;
    virtual void next() = 0;
    virtual bool isDone() const = 0;//末尾元素
    virtual T& current() = 0;
};



template<typename T>
class MyCollection{

public:

    Iterator<T> GetIterator(){
        //...
    }

};

template<typename T>
class CollectionIterator : public Iterator<T>{
    MyCollection<T> mc;
public:

    CollectionIterator(const MyCollection<T> & c): mc(c){ }

    void first() override {

    }
    void next() override {

    }
    bool isDone() const override{

    }
    T& current() override{

    }
};

void MyAlgorithm()
{
    MyCollection<int> mc;

    Iterator<int> iter= mc.GetIterator();

    for (iter.first(); !iter.isDone(); iter.next()){
        cout << iter.current() << endl;
    }

}

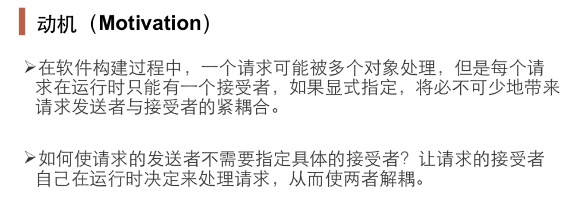

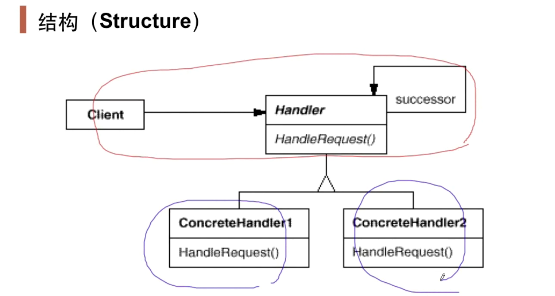

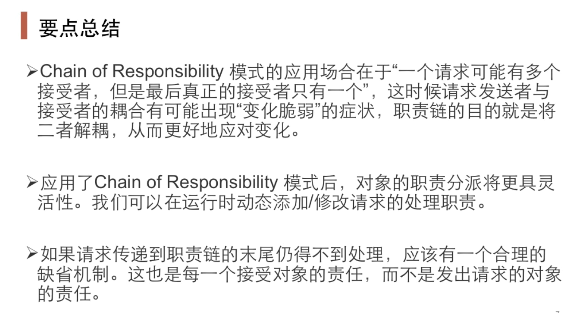

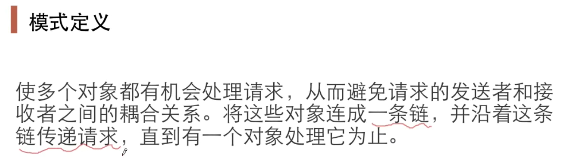

责任链模式

#include <iostream>
#include <string>

using namespace std;

enum class RequestType
{
    REQ_HANDLER1,
    REQ_HANDLER2,
    REQ_HANDLER3
};

class Reqest
{
    string description;
    RequestType reqType;
public:
    Reqest(const string & desc, RequestType type) : description(desc), reqType(type) {}
    RequestType getReqType() const { return reqType; }
    const string& getDescription() const { return description; }
};

class ChainHandler{
    //指向自身,形成多态链表
    ChainHandler *nextChain;
    void sendReqestToNextHandler(const Reqest & req)
    {
        if (nextChain != nullptr)
            nextChain->handle(req);
    }
protected:
    virtual bool canHandleRequest(const Reqest & req) = 0;
    virtual void processRequest(const Reqest & req) = 0;
public:
    ChainHandler() { nextChain = nullptr; }
    void setNextChain(ChainHandler *next) { nextChain = next; }


    void handle(const Reqest & req)
    {
		//能处理请求
        if (canHandleRequest(req))
            processRequest(req);
        else//当前链表节点不能处理,交给下一个节点处理
            sendReqestToNextHandler(req);
    }
};


class Handler1 : public ChainHandler{
protected:
    bool canHandleRequest(const Reqest & req) override
    {
        return req.getReqType() == RequestType::REQ_HANDLER1;
    }
    void processRequest(const Reqest & req) override
    {
        cout << "Handler1 is handle reqest: " << req.getDescription() << endl;
    }
};

class Handler2 : public ChainHandler{
protected:
    bool canHandleRequest(const Reqest & req) override
    {
        return req.getReqType() == RequestType::REQ_HANDLER2;
    }
    void processRequest(const Reqest & req) override
    {
        cout << "Handler2 is handle reqest: " << req.getDescription() << endl;
    }
};

class Handler3 : public ChainHandler{
protected:
    bool canHandleRequest(const Reqest & req) override
    {
        return req.getReqType() == RequestType::REQ_HANDLER3;
    }
    void processRequest(const Reqest & req) override
    {
        cout << "Handler3 is handle reqest: " << req.getDescription() << endl;
    }
};

int main(){
    Handler1 h1;
    Handler2 h2;
    Handler3 h3;
    h1.setNextChain(&h2);
    h2.setNextChain(&h3);

    Reqest req("process task ... ", RequestType::REQ_HANDLER3);
    h1.handle(req);
    return 0;
}

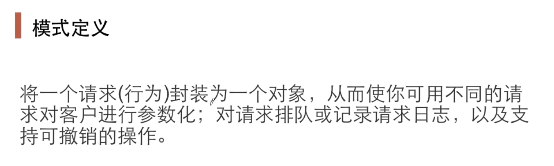

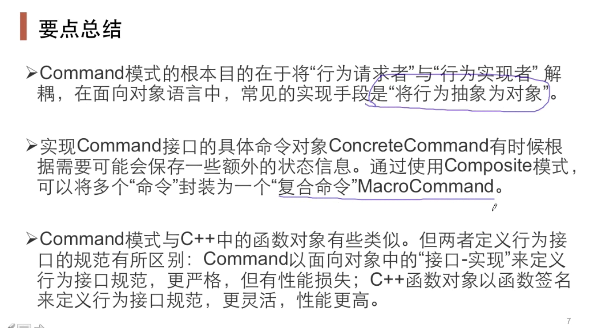

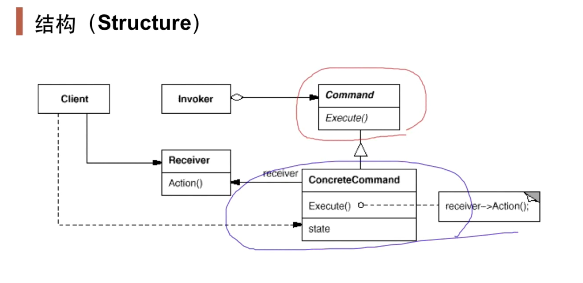

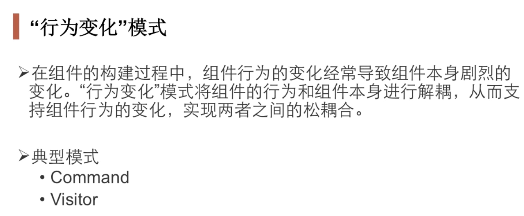

命令模式

在c++中被函数对象仿函数替代,在其他语法Java中较常见

#include <iostream>
#include <vector>
#include <string>
using namespace std;


class Command
{
public:
    //行为
    virtual void execute() = 0;
};

class ConcreteCommand1 : public Command
{
    string arg;
public:
    //封装成一个一个的对象
    ConcreteCommand1(const string & a) : arg(a) {}
    void execute() override
    {
        cout<< "#1 process..."<<arg<<endl;
    }
};

class ConcreteCommand2 : public Command
{
    string arg;
public:
    //封装成一个一个的对象
    ConcreteCommand2(const string & a) : arg(a) {}
    void execute() override
    {
        cout<< "#2 process..."<<arg<<endl;
    }
};


class MacroCommand : public Command
{
	//类似于组合模式
    vector<Command*> commands;
public:
    void addCommand(Command *c) { commands.push_back(c); }
    void execute() override
    {
        for (auto &c : commands)
        {
			//运行时动态解析
            c->execute();
        }
    }
};



int main()
{

    ConcreteCommand1 command1(receiver, "Arg ###");
    ConcreteCommand2 command2(receiver, "Arg $$$");

	//一个命令可以包含多个子命令
    MacroCommand macro;
    macro.addCommand(&command1);
    macro.addCommand(&command2);

    macro.execute();

}

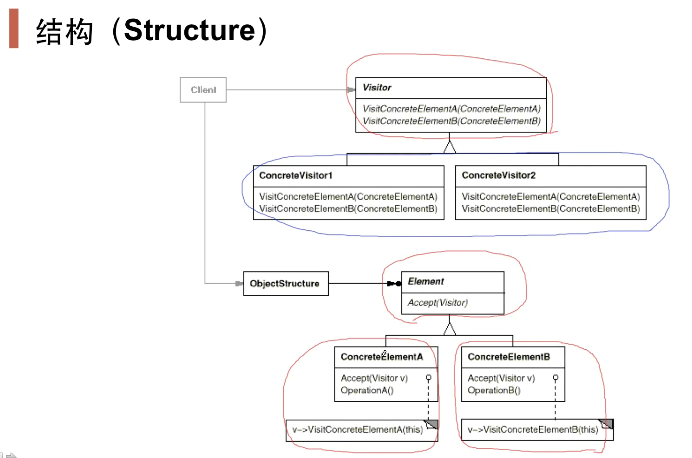

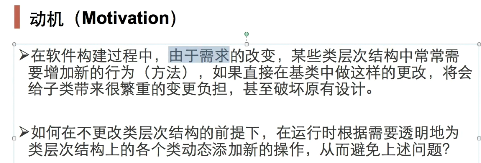

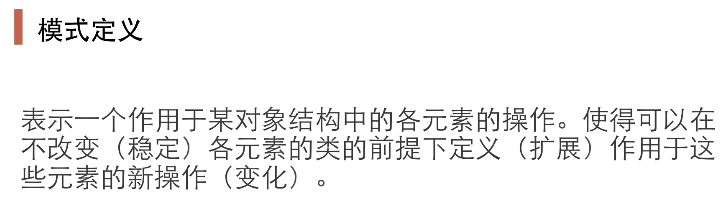

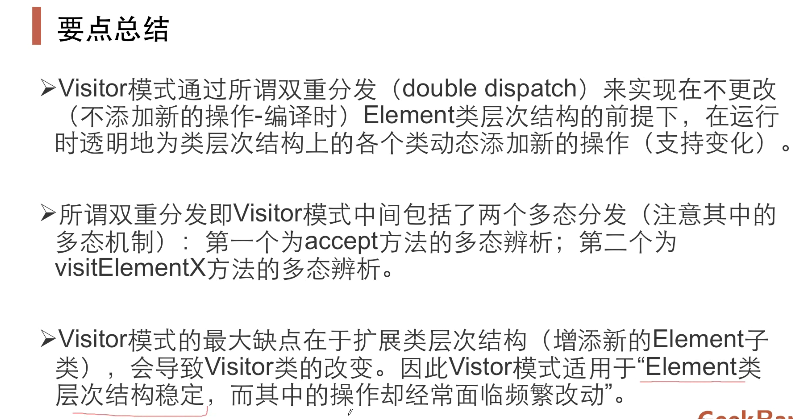

访问器模式

1.在基类中需要增加方法,在所有子类中都要取增加相应的方法.

存在的条件就是:Element所有类结构要稳定

#include <iostream>
using namespace std;

class Visitor;


class Element
{
public:
//将来添加新的操作,找accept()
    virtual void accept(Visitcor& visitor) = 0; //第一次多态辨析

    virtual ~Element(){}
};

class ElementA : public Element
{
public:
    void accept(Visitor &visitor) override {
        visitor.visitElementA(*this);
    }


};

class ElementB : public Element
{
public:
    void accept(Visitor &visitor) override {
        visitor.visitElementB(*this); //第二次多态辨析
    }

};


class Visitor{
public:
    virtual void visitElementA(ElementA& element) = 0;
    virtual void visitElementB(ElementB& element) = 0;

    virtual ~Visitor(){}
};
//上面已经设计好了,编译时不改变
//==================================

//扩展1
class Visitor1 : public Visitor{
public:
    void visitElementA(ElementA& element) override{
        cout << "Visitor1 is processing ElementA" << endl;
    }

    void visitElementB(ElementB& element) override{
        cout << "Visitor1 is processing ElementB" << endl;
    }
};

//扩展2
class Visitor2 : public Visitor{
public:
    void visitElementA(ElementA& element) override{
        cout << "Visitor2 is processing ElementA" << endl;
    }

    void visitElementB(ElementB& element) override{
        cout << "Visitor2 is processing ElementB" << endl;
    }
};




int main()
{
    Visitor2 visitor;
    ElementB elementB;
    elementB.accept(visitor);// 重要:double dispatch(二次多态辨析)

    ElementA elementA;
	//调用过程先去找ElementA的accept(),到19行,visitor是Visitor2,
	//到Visitor2中,因为调用的是visitElementA(),跳到60行
    elementA.accept(visitor);


    return 0;
}

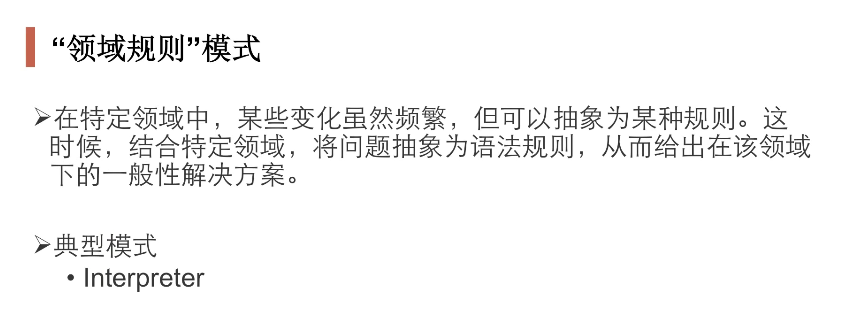

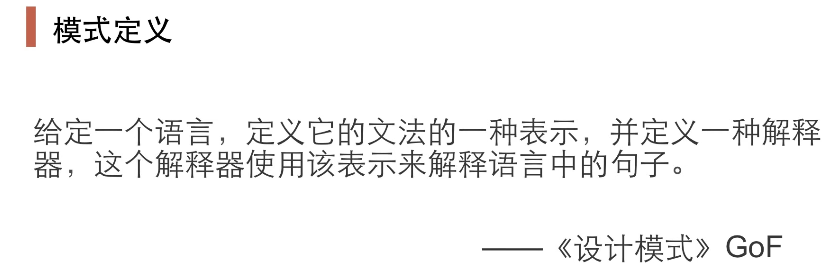

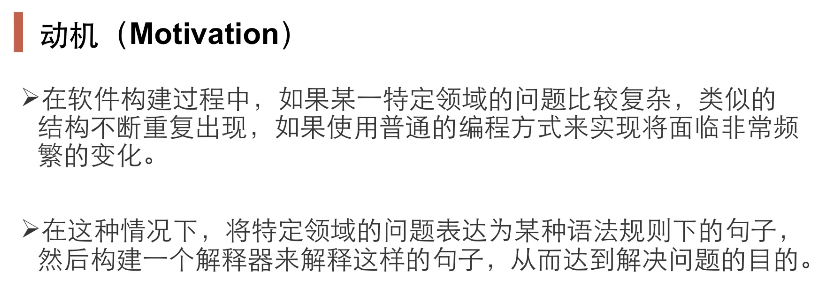

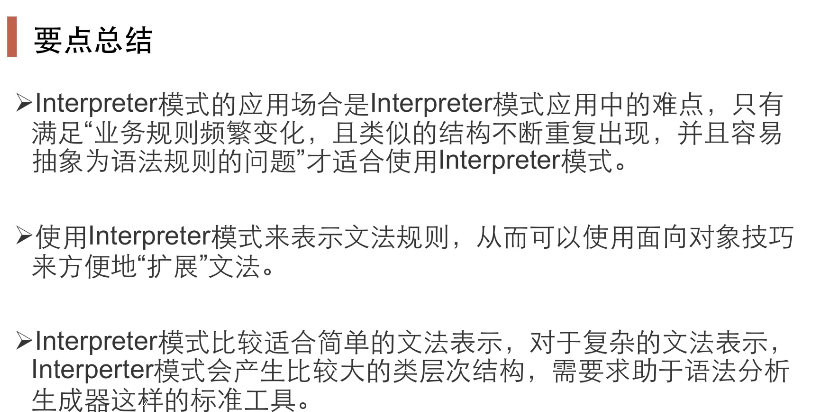

解释器模式

#include <iostream>
#include <map>
#include <stack>

using namespace std;

class Expression {
public:
    virtual int interpreter(map<char, int> var)=0;
    virtual ~Expression(){}
};

//变量表达式
class VarExpression: public Expression {

    char key;

public:
    VarExpression(const char& key)
    {
        this->key = key;
    }

    int interpreter(map<char, int> var) override {
        return var[key];
    }

};

//符号表达式
class SymbolExpression : public Expression {

    // 运算符左右两个参数
protected:
    Expression* left;
    Expression* right;

public:
    SymbolExpression( Expression* left,  Expression* right):
        left(left),right(right){

    }

};

//加法运算
class AddExpression : public SymbolExpression {

public:
    AddExpression(Expression* left, Expression* right):
        SymbolExpression(left,right){

    }
    int interpreter(map<char, int> var) override {
        return left->interpreter(var) + right->interpreter(var);
    }

};

//减法运算
class SubExpression : public SymbolExpression {

public:
    SubExpression(Expression* left, Expression* right):
        SymbolExpression(left,right){

    }
    int interpreter(map<char, int> var) override {
        return left->interpreter(var) - right->interpreter(var);
    }

};



Expression*  analyse(string expStr) {

    stack<Expression*> expStack;
    Expression* left = nullptr;
    Expression* right = nullptr;
    for(int i=0; i<expStr.size(); i++)
    {
        switch(expStr[i])
        {
            case '+':
                // 加法运算
                left = expStack.top();
                right = new VarExpression(expStr[++i]);
                expStack.push(new AddExpression(left, right));
                break;
            case '-':
                // 减法运算
                left = expStack.top();
                right = new VarExpression(expStr[++i]);
                expStack.push(new SubExpression(left, right));
                break;
            default:
                // 变量表达式
                expStack.push(new VarExpression(expStr[i]));
        }
    }

    Expression* expression = expStack.top();

    return expression;
}

void release(Expression* expression){

    //释放表达式树的节点内存...
}

int main(int argc, const char * argv[]) {


    string expStr = "a+b-c+d-e";
    map<char, int> var;
    var.insert(make_pair('a',5));
    var.insert(make_pair('b',2));
    var.insert(make_pair('c',1));
    var.insert(make_pair('d',6));
    var.insert(make_pair('e',10));


    Expression* expression= analyse(expStr);

    int result=expression->interpreter(var);

    cout<<result<<endl;

    release(expression);

    return 0;
}

设计模式总结

目标:管理变化,提高复用!
两种手段:分解vs抽象
八大设计原则:

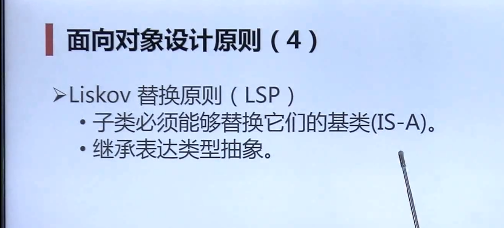

依赖倒置,开放封闭,单一职责,里氏替换,接口隔离,对象组合优于继承,封装变化点,面向接口编程

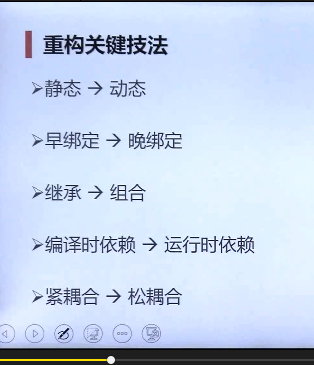

重构技法:
1.静态->动态
2.早绑定- >晚绑定
3.继承->组合
4.编译时依赖->运行时依赖
5.紧耦合->松耦合

代码初版慎用模式,当猜测需求的时候,不适合用模式,做外包时,产品的复用不强,不适合
