目录

一、TuGraph-安装、启动

（1）安装wsl

（2）镜像拉取tugraph

（3）报错

二、数据导入和图谱构建

（1）创建图表、点、边

（2）数据预处理、导入

（3）查询示例

三、在TuGraph中使用cypher语句+Python交互

四、医疗知识图谱对话系统

---

一、TuGraph-安装、启动

（1）安装wsl

(注：以下步骤仅适用于通过docker安装tugraph的windows用户)

上篇文章已经安装了docker

win+R，powershell打开终端，
先安装wsl

wsl --install

安装完成后一般要重启计算机

随后将wsl2设为默认版本

wsl --set-default-version 2

（2）镜像拉取tugraph

docker pull tugraph/tugraph-runtime-centos7:latest

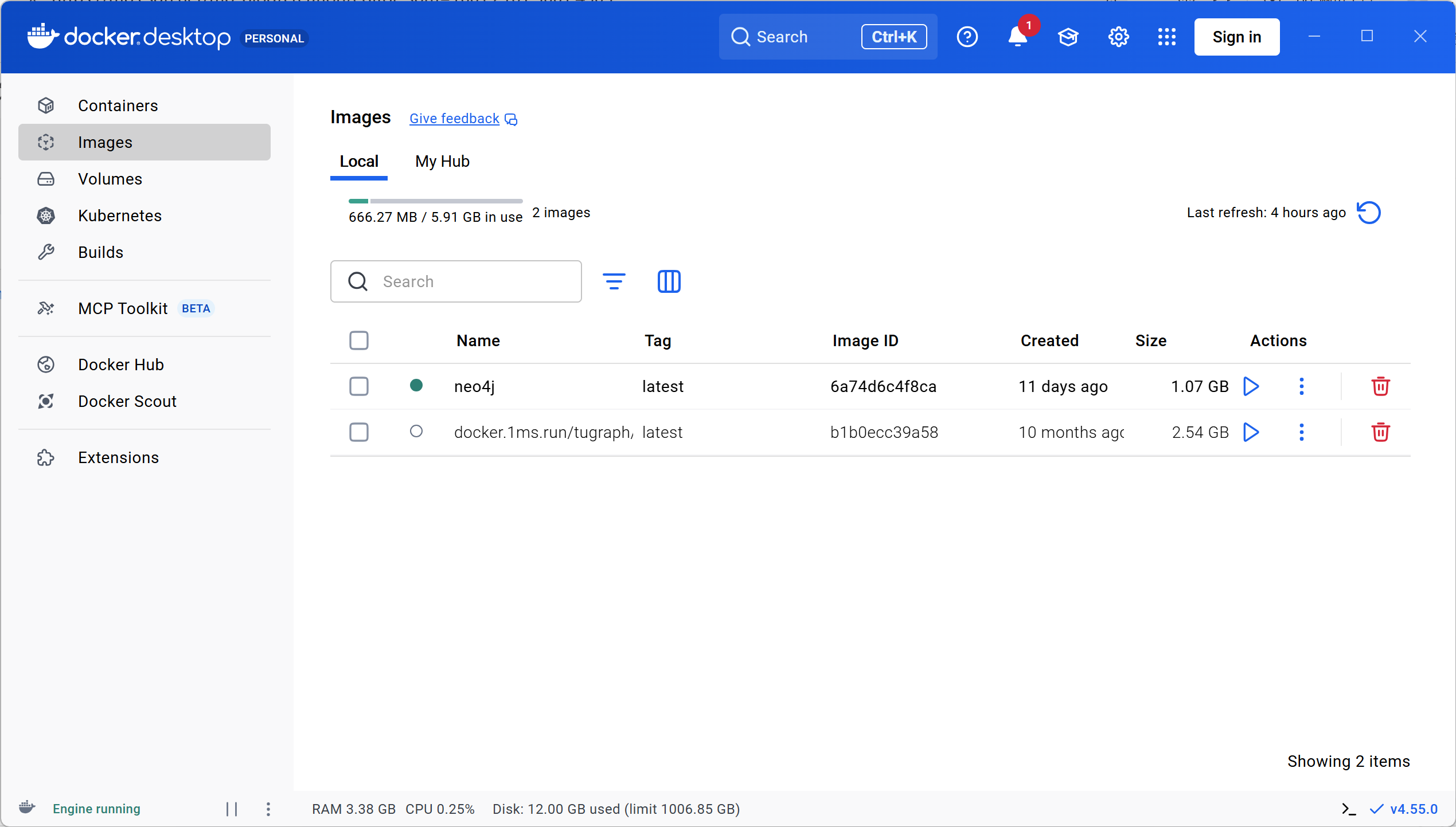

docker出现tugraph证明成功

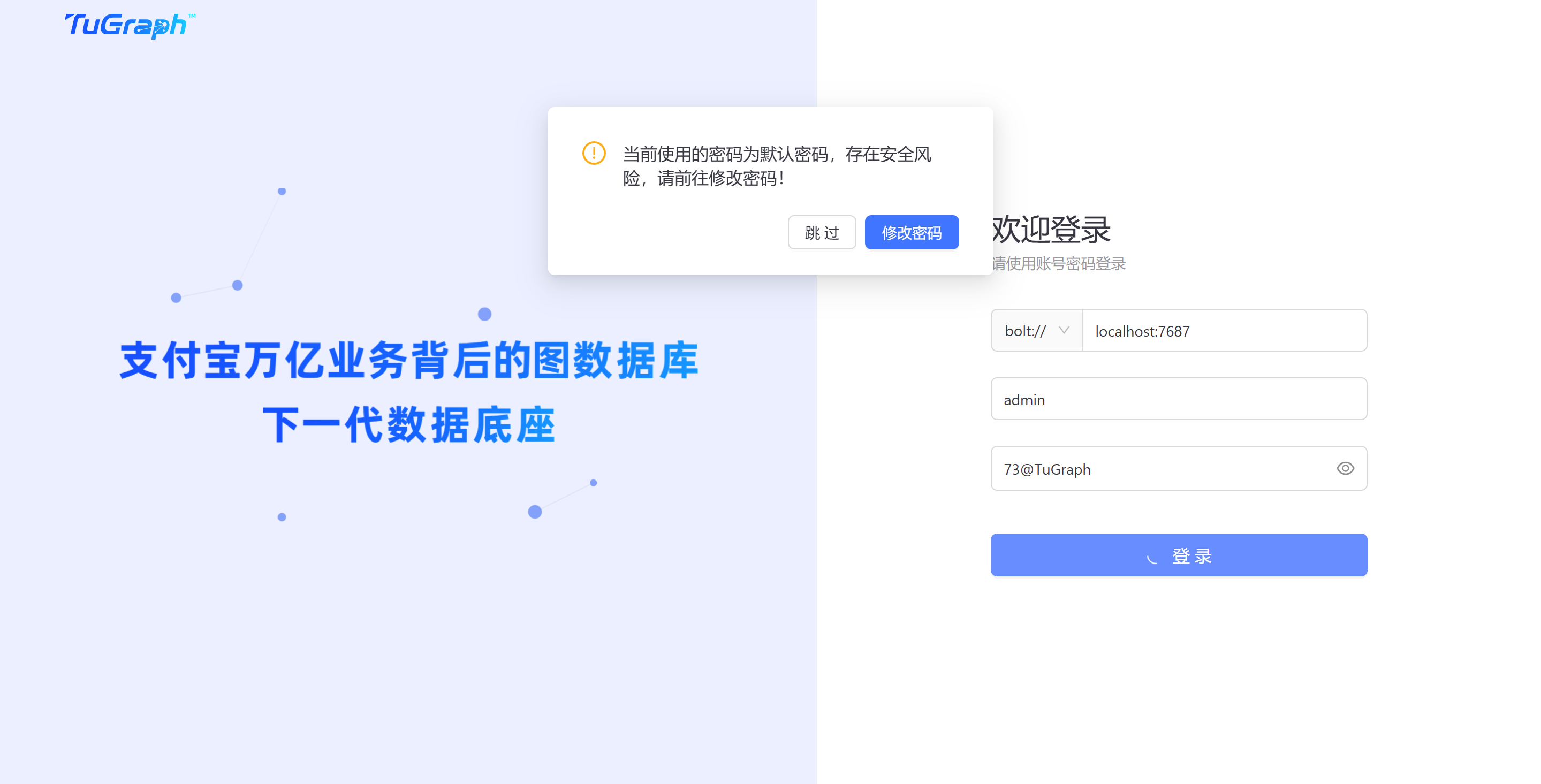

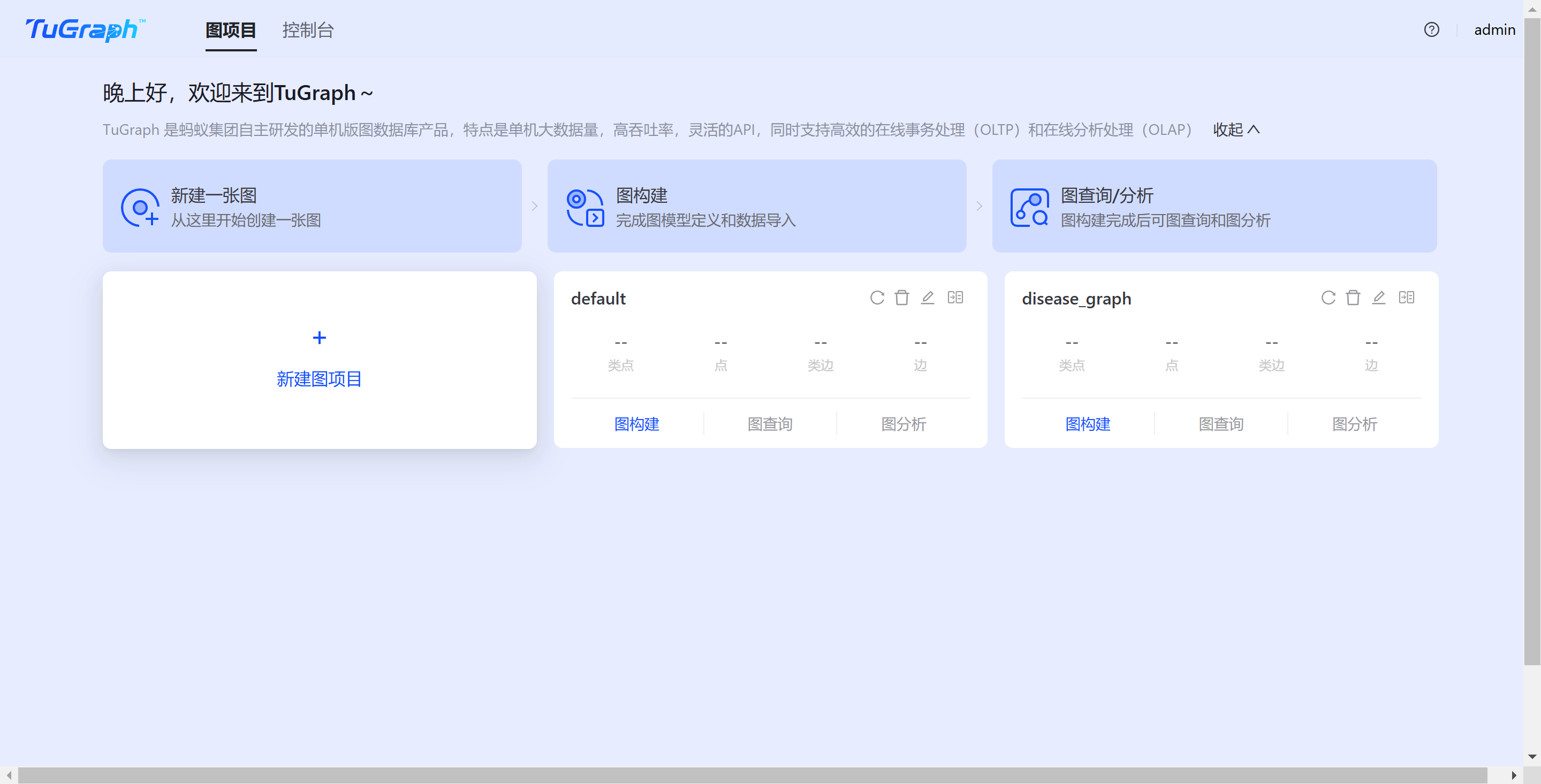

运行后进入http://localhost:7070

（3）报错

如果发现无法进入，可能是端口未正确印射，删除原容器，创建新容器，印射7070和7687端口

# 停止容器
docker stop tugraph-server

# 删除容器
docker rm tugraph-server

#创建容器
docker run -d --name tugraph-server -p 7070:7070 -p 7687:7687 -v D:/tugraph_data:/var/lib/lgraph/data tugraph/tugraph-runtime-centos7:latest

二、数据导入和图谱构建

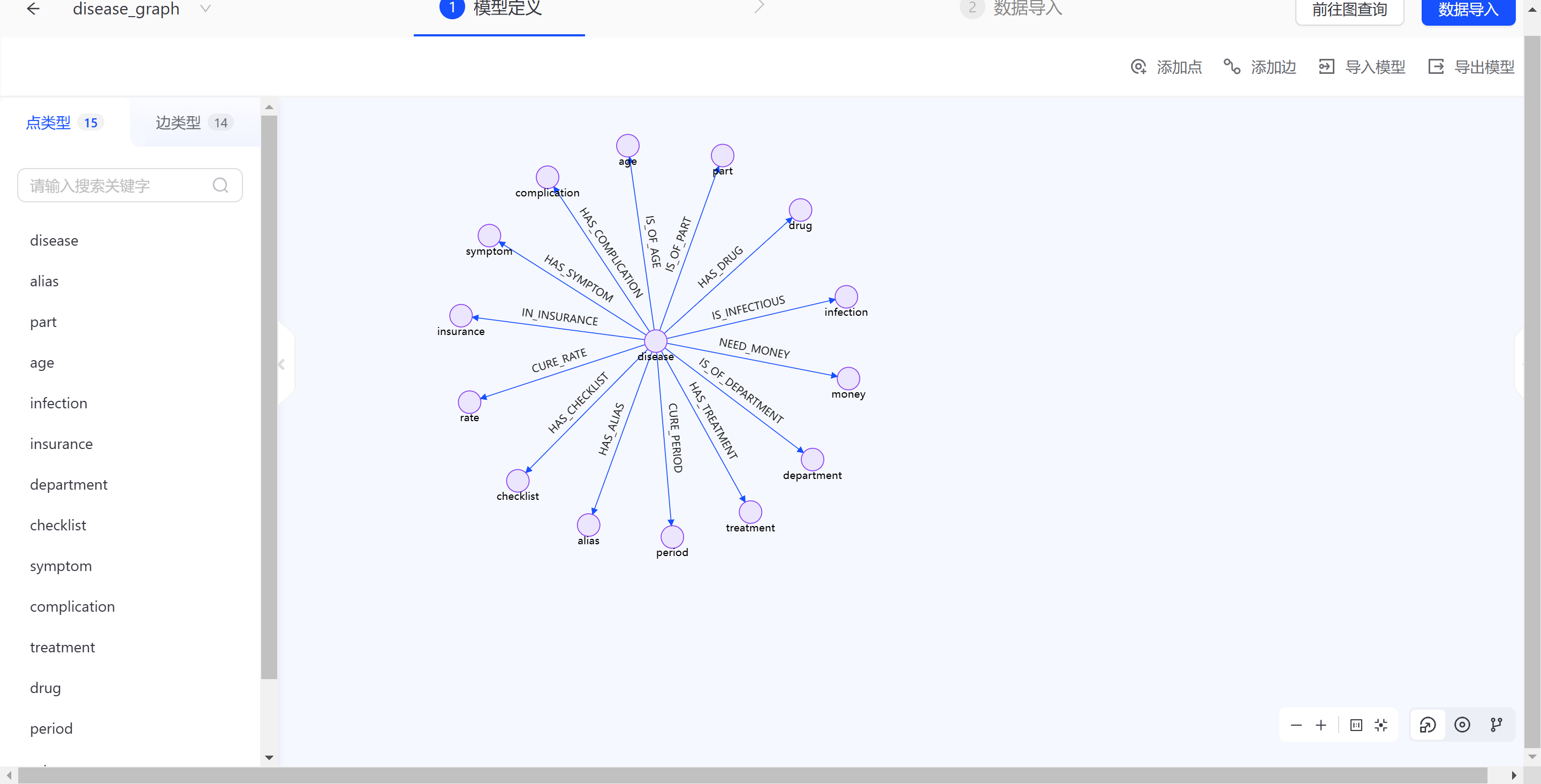

（1）创建图表、点、边

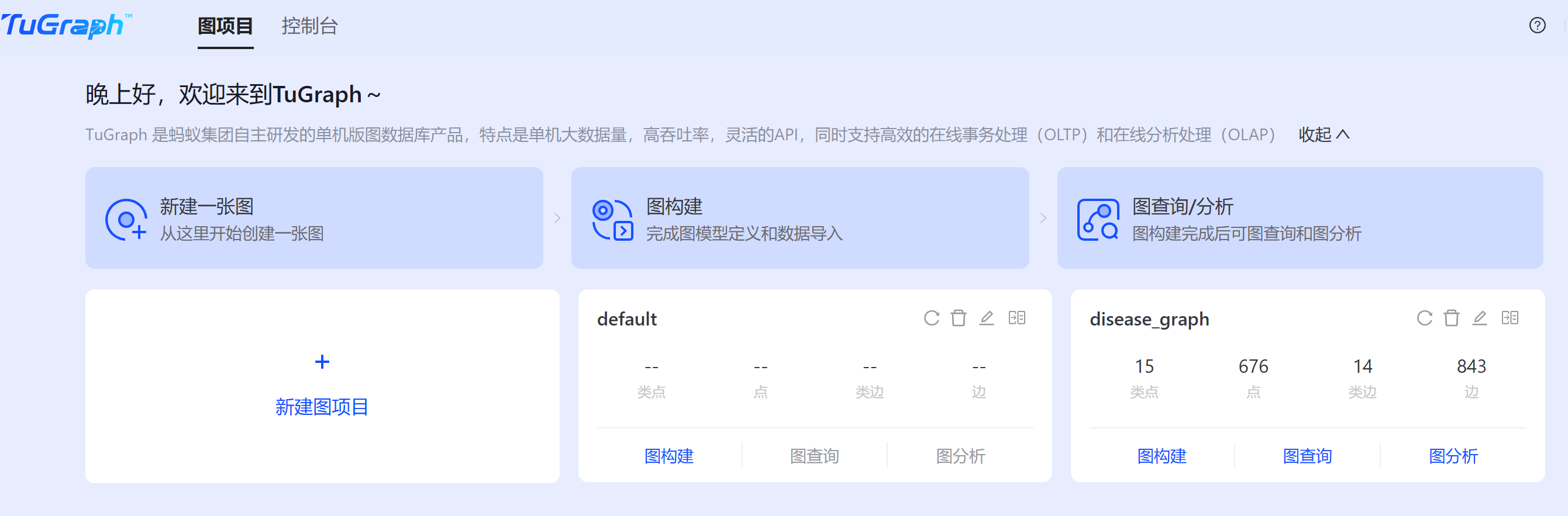

“新建图项目”-创建图命名为disease_graph

（2）数据预处理、导入

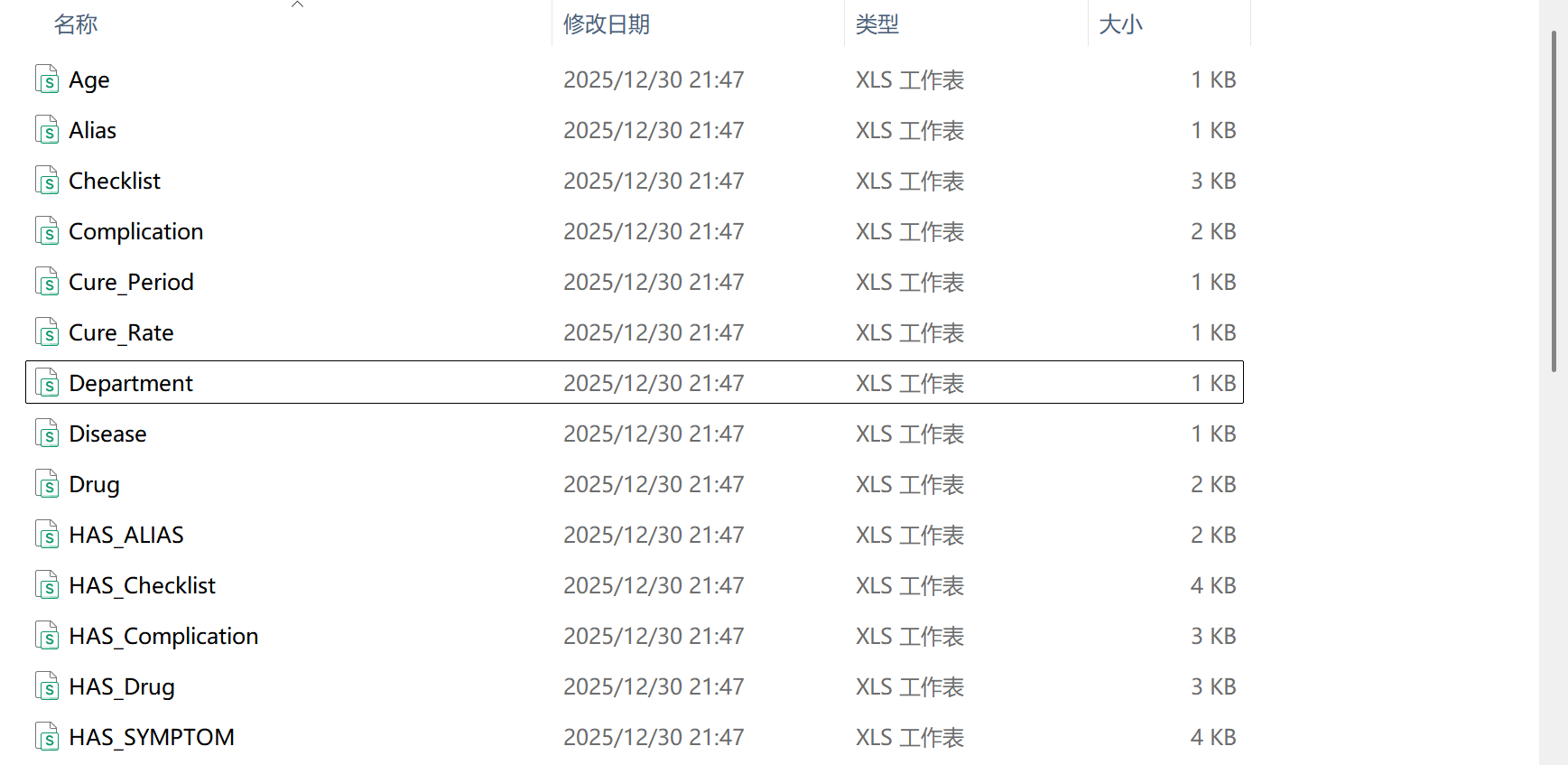

将disease3.csv分解为点标签文件和边标签文件

import pandas as pd
import os


def preprocess_disease_data():
    """预处理疾病数据，生成节点和边文件"""
    # 原始数据路径 - 修改为您的实际路径
    data_path = r'文件位置\disease3.csv'

    # 输出目录路径 - 同样在桌面文件夹
    output_path = r'文件输出位置\output'

    # 读取原始数据
    try:
        df = pd.read_csv(data_path, encoding='utf-8')
        print(f"成功读取数据，共 {len(df)} 条记录")
    except Exception as e:
        print(f"读取数据失败: {e}")
        return

    # 定义节点和边标签列表
    node_name_list = ["Alias", "Part", "Age", "Infection", "Insurance", "Department",
                      "Checklist", "Symptom", "Complication", "Treatment", "Drug",
                      "Period", "Rate", "Money"]
    edge_name_list = ["HAS_ALIAS", "IS_OF_PART", "IS_OF_AGE", "IS_INFECTIOUS",
                      "In_Insurance", "IS_OF_Department", "HAS_Checklist", "HAS_SYMPTOM",
                      "HAS_Complication", "HAS_Treatment", "HAS_Drug", "Cure_Period",
                      "Cure_Rate", "NEED_Money"]

    # 创建输出目录
    if not os.path.exists(output_path):
        os.makedirs(output_path)

    # 初始化输出文件
    node_filenames = []
    for k in range(0, 14):
        node_filenames.append(os.path.join(output_path, node_name_list[k] + ".csv"))

    edge_filenames = []
    for k in range(0, 14):
        edge_filenames.append(os.path.join(output_path, edge_name_list[k] + ".csv"))

    disease_file = os.path.join(output_path, "Disease.csv")

    # 清空现有文件
    for filename in node_filenames + edge_filenames + [disease_file]:
        if os.path.exists(filename):
            os.remove(filename)

    # 遍历所有疾病数据
    total_diseases = len(df)
    print(f"开始处理 {total_diseases} 条疾病数据...")

    disease_count = 0
    for i in range(total_diseases):
        disease_name = str(df.iloc[i, 0]).strip()
        if not disease_name or disease_name == 'nan':
            continue

        disease_count += 1

        # 写入疾病节点
        with open(disease_file, mode="a", encoding="utf-8") as log:
            print(disease_name, file=log)

        # 遍历14个属性字段
        for k in range(1, 15):
            cell_value = str(df.iloc[i, k])
            if cell_value.strip() == "" or cell_value == "nan":
                continue

            # 分割多个值
            values = cell_value.split()
            for value in values:
                node_value = value.strip()
                if not node_value:
                    continue

                # 写入属性节点（去重）
                node_file = node_filenames[k - 1]
                existing_nodes = set()
                if os.path.exists(node_file):
                    with open(node_file, 'r', encoding='utf-8') as f:
                        existing_nodes = set(line.strip() for line in f)

                if node_value not in existing_nodes:
                    with open(node_file, mode="a", encoding="utf-8") as log1:
                        print(node_value, file=log1)

                # 写入边关系
                with open(edge_filenames[k - 1], mode="a", encoding="utf-8") as log2:
                    print(f"{disease_name},{node_value}", file=log2)

    print(f"\n数据预处理完成！")
    print(f"处理疾病数量: {disease_count}")
    print(f"输出目录: {output_path}")

    # 统计生成的文件
    total_files = 0
    print("\n生成文件统计:")
    print(f"Disease.csv: 存在 - {os.path.exists(disease_file)}")

    for i in range(14):
        node_file = node_filenames[i]
        edge_file = edge_filenames[i]
        node_exists = os.path.exists(node_file)
        edge_exists = os.path.exists(edge_file)

        if node_exists:
            with open(node_file, 'r', encoding='utf-8') as f:
                node_count = len(f.readlines())
        else:
            node_count = 0

        if edge_exists:
            with open(edge_file, 'r', encoding='utf-8') as f:
                edge_count = len(f.readlines())
        else:
            edge_count = 0

        print(f"{node_name_list[i]}.csv: {node_count} 个节点, {edge_name_list[i]}.csv: {edge_count} 条边")
        if node_exists or edge_exists:
            total_files += 2

    print(f"\n总计生成文件: {total_files} 个")


if __name__ == "__main__":
    preprocess_disease_data()

将csv文件挨个导入

（3）查询示例

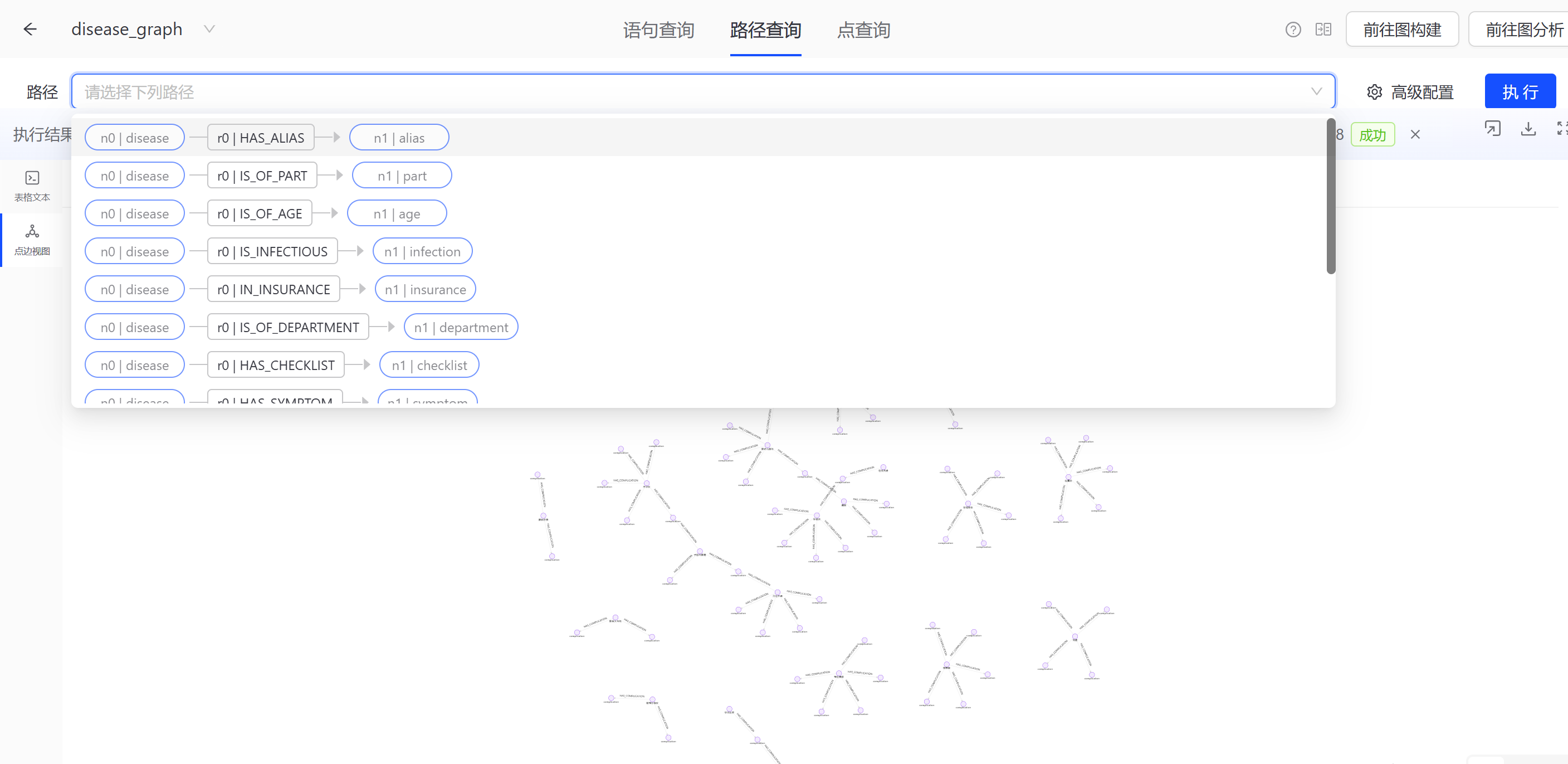

路径查询

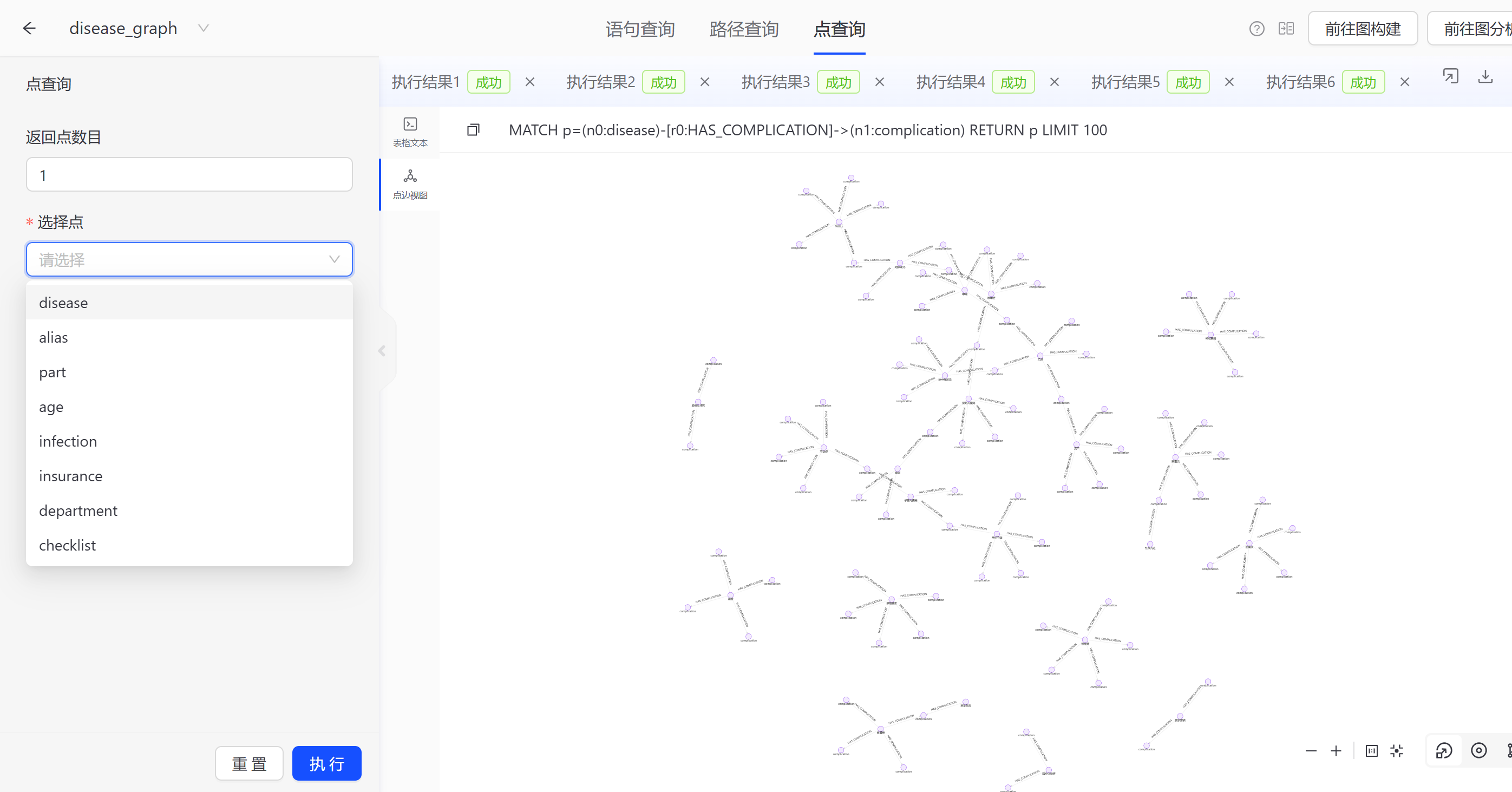

点查询

三、在TuGraph中使用cypher语句+Python交互

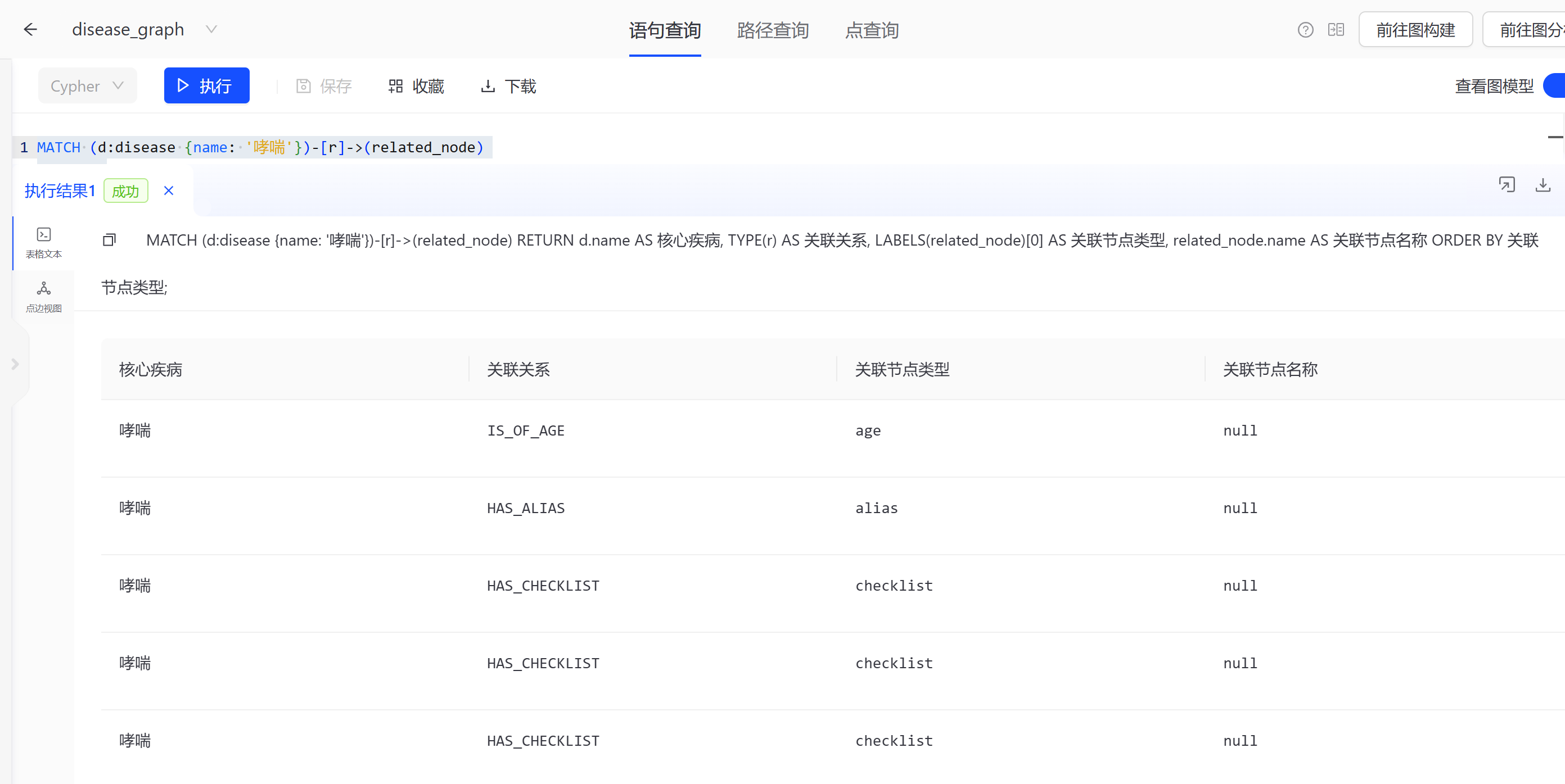

在Tugraph查询与“哮喘”相关的所有内容

MATCH (d:disease {name: '哮喘'})-[r]->(related_node)
RETURN
  d.name AS 核心疾病,
  TYPE(r) AS 关联关系,
  LABELS(related_node)[0] AS 关联节点类型,
  related_node.name AS 关联节点名称
ORDER BY 关联节点类型;

在python交互

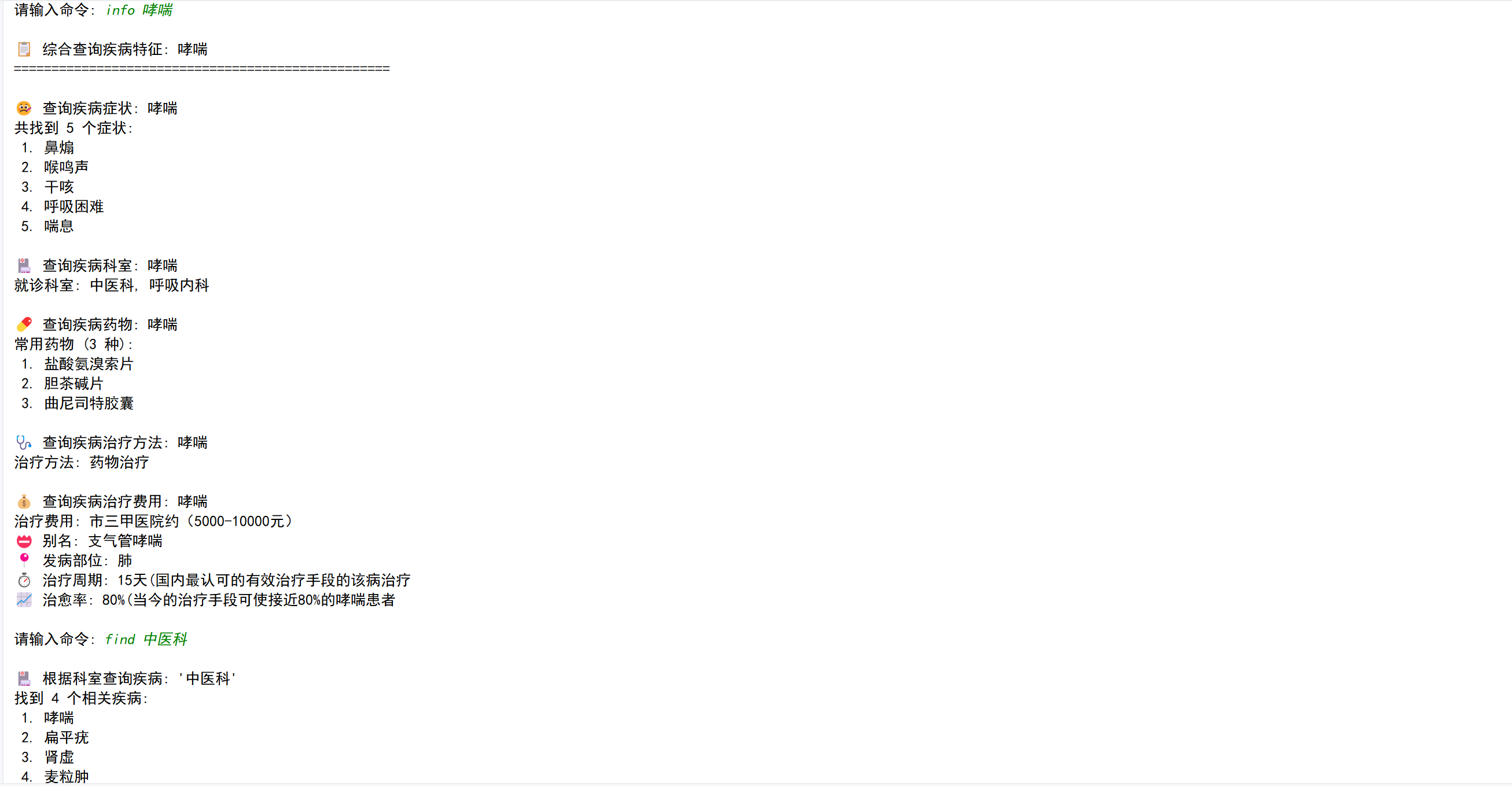

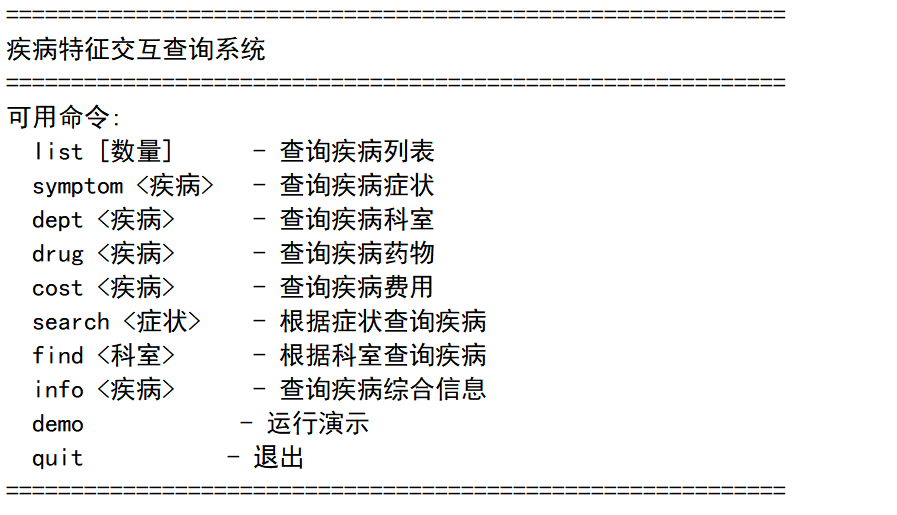

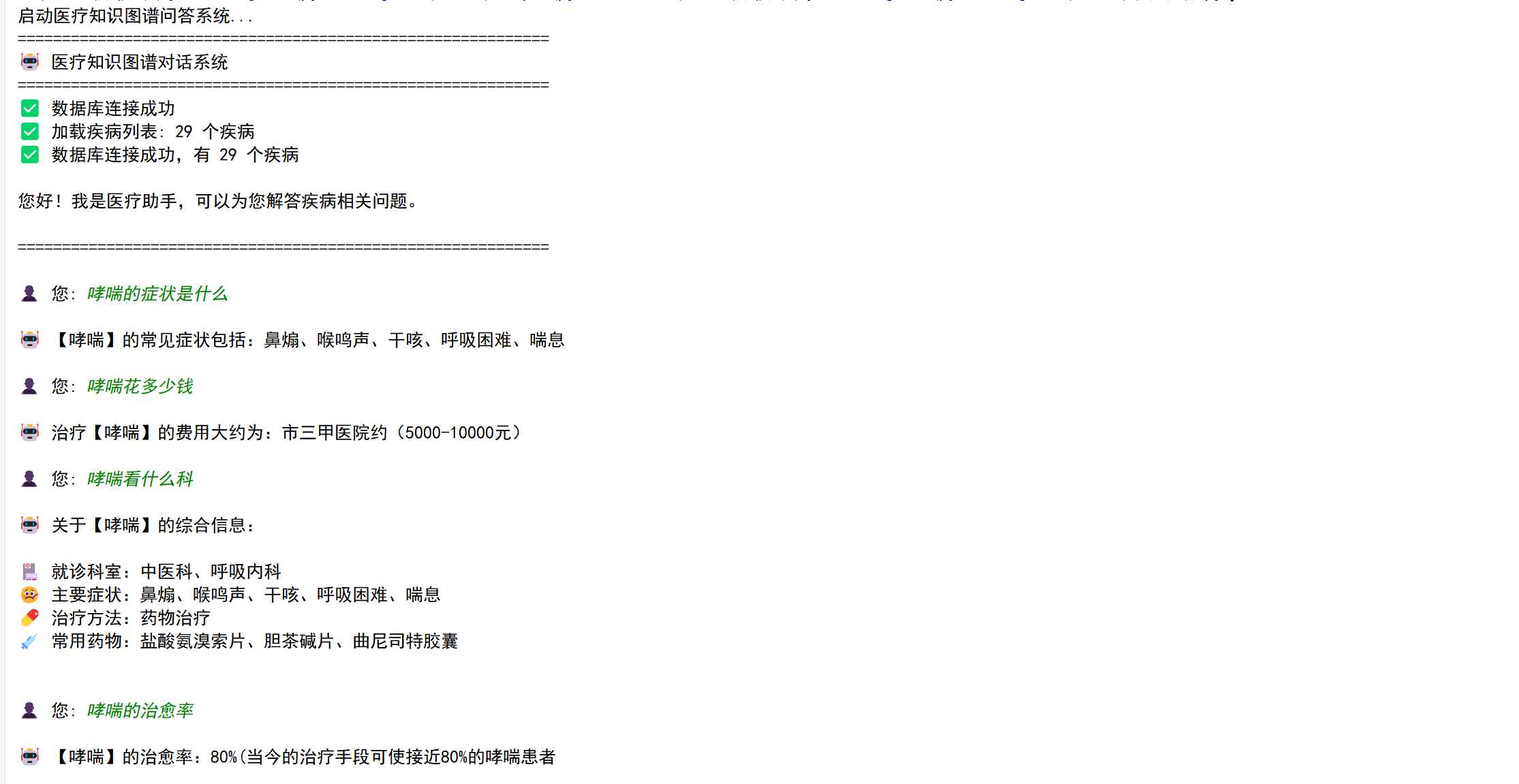

四、医疗知识图谱对话系统

"""
医疗知识图谱对话系统 -
"""
from neo4j import GraphDatabase
import os
import re
from datetime import datetime
import random


class MedicalChatbotFinal:
    def __init__(self, uri="bolt://localhost:7687", username="admin", password="73@TuGraph"):
        """初始化医疗对话机器人 """
        self.uri = uri
        self.username = username
        self.password = password
        self.database = "disease_graph"
        self.driver = None
        self.conversation_history = []
        self.user_context = {}

        print("=" * 60)
        print("🤖 医疗知识图谱对话系统")
        print("=" * 60)

        self._connect()
        self._load_resources()
        self._init_query_map()

    def _connect(self):
        """连接数据库"""
        try:
            self.driver = GraphDatabase.driver(self.uri, auth=(self.username, self.password))
            with self.driver.session(database=self.database) as session:
                result = session.run("RETURN 1 as test")
                if result.single()["test"] == 1:
                    print("✅ 数据库连接成功")
                else:
                    print("❌ 连接测试失败")
                    self.driver = None
        except Exception as e:
            print(f"❌ 连接失败: {e}")
            self.driver = None

    def _load_resources(self):
        """加载资源"""
        # 从数据库加载疾病列表
        if self.driver:
            try:
                query = "MATCH (d:disease) RETURN d.name as name"
                results = self.execute_query_simple(query)
                self.disease_list = [r['name'] for r in results if r.get('name')]
                print(f"✅ 加载疾病列表: {len(self.disease_list)} 个疾病")
            except Exception as e:
                print(f"❌ 加载疾病列表失败: {e}")
                self.disease_list = []

        # 问候语
        self.greetings = [
            "您好！我是医疗助手，可以为您解答疾病相关问题。",
            "欢迎使用医疗知识图谱系统，请问有什么可以帮您？",
            "您好！我可以查询疾病症状、治疗方法、就诊科室等信息。",
            "医疗助手为您服务，请问您想了解什么疾病信息？"
        ]

    def _init_query_map(self):
        """初始化查询映射表"""
        self.query_map = {
            "alias": {
                "relation": "HAS_ALIAS",
                "label": "alias",
                "property": "alias",
                "keywords": ["别名", "又叫", "学名", "全称", "也称为"],
                "reply_template": "【{disease}】的别名包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的别名信息。"
            },
            "part": {
                "relation": "IS_OF_PART",
                "label": "part",
                "property": "part",
                "keywords": ["部位", "哪里", "哪个部位", "发病部位", "位置"],
                "reply_template": "【{disease}】的发病部位是：{values}",
                "empty_reply": "暂时没有找到【{disease}】的发病部位信息。"
            },
            "age": {
                "relation": "IS_OF_AGE",
                "label": "age",
                "property": "age",
                "keywords": ["人群", "年龄", "易感", "好发", "什么人容易得"],
                "reply_template": "【{disease}】的易感人群包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的易感人群信息。"
            },
            "infection": {
                "relation": "IS_INFECTIOUS",
                "label": "infection",
                "property": "infection",
                "keywords": ["传染", "感染", "传染性", "会不会传染"],
                "reply_template": "【{disease}】的传染性：{values}",
                "empty_reply": "暂时没有找到【{disease}】的传染性信息。"
            },
            "insurance": {
                "relation": "IN_INSURANCE",
                "label": "insurance",
                "property": "insurance",
                "keywords": ["医保", "报销", "保险", "能不能报销"],
                "reply_template": "【{disease}】的医保情况：{values}",
                "empty_reply": "暂时没有找到【{disease}】的医保信息。"
            },
            "department": {
                "relation": "IS_OF_DEPARTMENT",
                "label": "department",
                "property": "department",
                "keywords": ["科室", "挂什么科", "看哪个科", "就诊科室", "应该看什么科"],
                "reply_template": "【{disease}】应该就诊的科室包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的就诊科室信息。"
            },
            "checklist": {
                "relation": "HAS_CHECKLIST",
                "label": "checklist",
                "property": "checklist",
                "keywords": ["检查", "检测", "做什么检查", "检查项目", "需要检查什么"],
                "reply_template": "诊断【{disease}】通常需要做以下检查：{values}",
                "empty_reply": "暂时没有找到【{disease}】的检查项目信息。"
            },
            "symptom": {
                "relation": "HAS_SYMPTOM",
                "label": "symptom",
                "property": "symptom",
                "keywords": ["症状", "表现", "临床表现", "有什么症状", "症状有哪些"],
                "reply_template": "【{disease}】的常见症状包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的症状信息。"
            },
            "complication": {
                "relation": "HAS_COMPLICATION",
                "label": "complication",
                "property": "complication",
                "keywords": ["并发症", "合并症", "并发", "会引起什么", "可能导致"],
                "reply_template": "【{disease}】可能出现的并发症包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的并发症信息。"
            },
            "treatment": {
                "relation": "HAS_TREATMENT",
                "label": "treatment",
                "property": "treatment",
                "keywords": ["治疗", "方式", "怎么治", "治疗方法", "治疗方案", "怎么治疗"],
                "reply_template": "【{disease}】的常用治疗方法包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的治疗方法信息。"
            },
            "drug": {
                "relation": "HAS_DRUG",
                "label": "drug",
                "property": "drug",
                "keywords": ["药", "药物", "用药", "吃什么药", "药品", "药物有哪些"],
                "reply_template": "治疗【{disease}】的常用药物包括：{values}",
                "empty_reply": "暂时没有找到【{disease}】的药物信息。"
            },
            "period": {
                "relation": "CURE_PERIOD",
                "label": "period",
                "property": "period",
                "keywords": ["周期", "多久能好", "治疗时间", "疗程", "需要治疗多久"],
                "reply_template": "【{disease}】的治疗周期一般为：{values}",
                "empty_reply": "暂时没有找到【{disease}】的治疗周期信息。"
            },
            "rate": {
                "relation": "CURE_RATE",
                "label": "rate",
                "property": "rate",
                "keywords": ["治愈率", "成功率", "预后", "治愈", "能不能治好"],
                "reply_template": "【{disease}】的治愈率：{values}",
                "empty_reply": "暂时没有找到【{disease}】的治愈率信息。"
            },
            "money": {
                "relation": "NEED_MONEY",
                "label": "money",
                "property": "money",
                "keywords": ["费用", "多少钱", "花费", "治疗费用", "需要多少钱"],
                "reply_template": "治疗【{disease}】的费用大约为：{values}",
                "empty_reply": "暂时没有找到【{disease}】的治疗费用信息。"
            }
        }

    def close(self):
        """关闭连接"""
        if self.driver:
            self.driver.close()
            print("数据库连接已关闭")

    def execute_query_simple(self, query, parameters=None):
        """执行Cypher查询 - 简化版"""
        if not self.driver:
            return []

        try:
            with self.driver.session(database=self.database) as session:
                result = session.run(query, parameters)
                records = []
                for record in result:
                    rec_dict = {}
                    for key in record.keys():
                        value = record[key]
                        if value is not None:
                            rec_dict[key] = str(value)
                        else:
                            rec_dict[key] = ""
                    records.append(rec_dict)
                return records
        except Exception as e:
            print(f"查询执行失败: {e}")
            return []

    def extract_disease_name(self, text):
        """从文本中提取疾病名称"""
        if not self.disease_list:
            return None

        # 精确匹配
        for disease in self.disease_list:
            if disease in text:
                return disease

        return None

    def identify_query_type(self, text):
        """识别查询类型"""
        text_lower = text.lower()

        for qtype, config in self.query_map.items():
            for keyword in config["keywords"]:
                if keyword in text_lower:
                    return qtype

        # 通用查询
        if "什么" in text_lower or "哪些" in text_lower or "怎么" in text_lower or "信息" in text_lower:
            return "general"

        return None

    def query_disease_info(self, disease_name, query_type):
        """查询疾病信息"""
        if query_type not in self.query_map:
            return []

        config = self.query_map[query_type]

        query = f"""
        MATCH (d:disease {{name: $disease_name}})-[:{config['relation']}]->(n:{config['label']})
        RETURN n.{config['property']} as value
        """

        results = self.execute_query_simple(query, {"disease_name": disease_name})

        # 收集和去重
        values = []
        seen = set()
        for r in results:
            value = r.get('value', '').strip()
            if value and value not in seen:
                seen.add(value)
                values.append(value)

        return values

    def query_general_info(self, disease_name):
        """查询疾病的通用信息"""
        info = {
            'disease': disease_name,
            'symptoms': [],
            'departments': [],
            'treatments': [],
            'drugs': []
        }

        # 分别查询各种信息
        queries = [
            ('symptoms', 'HAS_SYMPTOM', 'symptom', 'symptom'),
            ('departments', 'IS_OF_DEPARTMENT', 'department', 'department'),
            ('treatments', 'HAS_TREATMENT', 'treatment', 'treatment'),
            ('drugs', 'HAS_DRUG', 'drug', 'drug'),
        ]

        for field, relation, label, property_name in queries:
            query = f"""
            MATCH (d:disease {{name: $disease_name}})-[:{relation}]->(n:{label})
            RETURN n.{property_name} as value
            """

            results = self.execute_query_simple(query, {"disease_name": disease_name})

            # 收集和去重
            values = []
            seen = set()
            for r in results:
                value = r.get('value', '').strip()
                if value and value not in seen:
                    seen.add(value)
                    values.append(value)

            info[field] = values

        return info

    def format_response(self, disease_name, query_type, query_results):
        """格式化响应"""
        if not query_results:
            if query_type == "general":
                return f"抱歉，没有找到关于【{disease_name}】的详细信息。"
            else:
                config = self.query_map[query_type]
                return config["empty_reply"].format(disease=disease_name)

        if query_type == "general":
            # 通用信息查询
            info = query_results
            response = f"关于【{disease_name}】的综合信息：\n\n"

            has_info = False

            if info.get('departments'):
                departments = info['departments']
                if departments:
                    response += f"🏥 就诊科室：{'、'.join(departments[:5])}\n"
                    has_info = True

            if info.get('symptoms'):
                symptoms = info['symptoms']
                if symptoms:
                    response += f"🤒 主要症状：{'、'.join(symptoms[:5])}\n"
                    has_info = True

            if info.get('treatments'):
                treatments = info['treatments']
                if treatments:
                    response += f"💊 治疗方法：{'、'.join(treatments[:3])}\n"
                    has_info = True

            if info.get('drugs'):
                drugs = info['drugs']
                if drugs:
                    response += f"💉 常用药物：{'、'.join(drugs[:5])}\n"
                    has_info = True

            if not has_info:
                response += "暂时没有相关信息。\n"

            return response

        else:
            # 特定类型查询
            config = self.query_map[query_type]

            if not query_results:
                return config["empty_reply"].format(disease=disease_name)

            # 确保是列表
            if not isinstance(query_results, list):
                query_results = [query_results]

            # 过滤空值
            valid_results = [r for r in query_results if r and str(r).strip()]

            if not valid_results:
                return config["empty_reply"].format(disease=disease_name)

            if len(valid_results) > 5:
                response = config["reply_template"].format(
                    disease=disease_name,
                    values="、".join(valid_results[:5]) + f" 等{len(valid_results)}项"
                )
            else:
                response = config["reply_template"].format(
                    disease=disease_name,
                    values="、".join(valid_results)
                )

            return response

    def get_help_text(self):
        """获取帮助文本"""
        help_text = """
        🤖 医疗知识图谱对话系统
        ========================================

        我可以回答关于29种常见疾病的各种问题：

        支持的查询类型：

        1. 症状查询
           例：阳痿有什么症状？

        2. 科室推荐
           例：乙肝应该挂什么科？

        3. 治疗方案查询
           例：怎么治疗癫痫？

        4. 药物查询
           例：乙肝吃什么药？

        5. 费用咨询
           例：治疗阳痿要多少钱？

        支持的疾病包括：
        阳痿、乙肝、癫痫、月经不调、颈椎病、腰肌劳损、股骨头坏死等29种疾病。

        输入'疾病列表'查看所有支持的疾病
        输入'退出'结束对话
        ========================================
        """
        return help_text

    def process_user_input(self, user_input):
        """处理用户输入"""
        # 检查特殊命令
        if user_input.lower() in ["退出", "exit", "quit", "bye", "再见"]:
            return {"type": "exit", "message": "感谢使用，祝您健康！👋"}

        if user_input.lower() in ["帮助", "help", "怎么用", "使用方法"]:
            return {"type": "help", "message": self.get_help_text()}

        if user_input.lower() in ["疾病列表", "所有疾病", "有哪些疾病"]:
            diseases_text = f"当前知识图谱包含 {len(self.disease_list)} 种疾病：\n"
            for i, disease in enumerate(self.disease_list[:20], 1):
                diseases_text += f"{i:2d}. {disease}\n"
            if len(self.disease_list) > 20:
                diseases_text += f"... 等 {len(self.disease_list)} 种疾病"
            return {"type": "disease_list", "message": diseases_text}

        # 提取疾病名称
        disease_name = self.extract_disease_name(user_input)

        if not disease_name:
            return {
                "type": "error",
                "message": "抱歉，我没有识别出疾病名称。\n请明确指定疾病，例如：'阳痿有什么症状？'\n\n输入'疾病列表'查看所有支持的疾病。"
            }

        # 识别查询类型
        query_type = self.identify_query_type(user_input)
        if not query_type:
            # 默认查询通用信息
            query_type = "general"

        # 执行查询
        if query_type == "general":
            query_results = self.query_general_info(disease_name)
        else:
            query_results = self.query_disease_info(disease_name, query_type)

        # 格式化响应
        response = self.format_response(disease_name, query_type, query_results)

        return {
            "type": "response",
            "disease": disease_name,
            "query_type": query_type,
            "response": response
        }

    def run_interactive(self):
        """运行交互式对话"""
        # 问候
        print("\n您好！我是医疗助手，可以为您解答疾病相关问题。")
        print("\n" + "=" * 60)

        while True:
            try:
                user_input = input("\n👤 您: ").strip()

                if not user_input:
                    continue

                # 处理用户输入
                result = self.process_user_input(user_input)

                if result["type"] == "exit":
                    print(f"\n🤖 {result['message']}")
                    break

                elif result["type"] == "help":
                    print(f"\n{result['message']}")

                elif result["type"] == "disease_list":
                    print(f"\n{result['message']}")

                elif result["type"] == "error":
                    print(f"\n🤖 {result['message']}")

                elif result["type"] == "response":
                    print(f"\n🤖 {result['response']}")

            except KeyboardInterrupt:
                print("\n\n💬 对话已结束")
                break
            except Exception as e:
                print(f"\n系统错误：{e}")
                continue


def main():
    """主函数"""
    print("启动医疗知识图谱问答系统...")

    # 创建对话机器人
    chatbot = MedicalChatbotFinal(
        uri="bolt://localhost:7687",
        username="admin",
        password="73@TuGraph"
    )

    if not chatbot.driver:
        print("数据库连接失败，无法启动对话系统")
        return

    try:
        # 测试数据库连接
        test_query = "MATCH (d:disease) RETURN COUNT(d) as count"
        result = chatbot.execute_query_simple(test_query)

        if result and result[0].get('count'):
            print(f"✅ 数据库连接成功，有 {result[0].get('count')} 个疾病")

            # 启动对话
            chatbot.run_interactive()
        else:
            print("❌ 数据库中没有疾病数据，请先导入数据")

    except Exception as e:
        print(f"系统错误: {e}")

    finally:
        chatbot.close()


if __name__ == "__main__":
    main()
