引言：数据清洗的工业级挑战

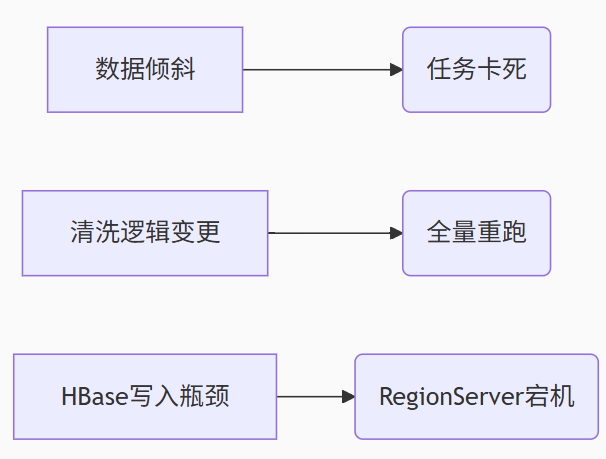

某电商平台每日产生20TB用户行为日志，需在1小时内完成清洗并支持实时查询。传统MapReduce方案面临三大瓶颈：

本文深入解析基于Spark 3.x与HBase 2.x的下一代数据清洗架构，实现分钟级延迟的TB级数据处理流水线。

---

一、架构设计：Lambda架构的进化形态

1.1 分层处理架构

class DataPipeline:
    def __init__(self):
        self.batch_layer = SparkBatchProcessing()  # 批处理层
        self.speed_layer = FlinkRealTime()         # 实时层（补充）
        self.serving_layer = HBaseCoproc()         # 服务层

    def execute(self):
        # 批处理主链路
        raw_rdd = sc.textFile("hdfs://logs/*.gz")
        cleaned_df = self._clean_data(raw_rdd)
        self._load_to_hbase(cleaned_df)

        # 实时增量补偿
        kafka_stream = self.speed_layer.consume_topic("user_actions")
        delta_df = self._process_stream(kafka_stream)
        self.serving_layer.merge_delta(delta_df)

1.2 核心组件版本矩阵

组件	版本	关键特性
Spark	3.3.1	Adaptive Query Execution
HBase	2.4.15	In-Memory Compaction
Hadoop	3.3.4	Erasure Coding
Zookeeper	3.7.1	Observer 模式

---

二、数据清洗：Spark结构化处理实战

2.1 脏数据处理模式库

// 1. 异常值过滤
val cleanDF = rawDF.filter(
  col("user_id").rlike("^u\\d{9}$") &&
  col("event_time") > "2023-01-01"
)

// 2. 枚举值标准化
val actionTypes = Seq("click", "purchase", "view")
val normalizedDF = cleanDF.withColumn(
  "action",
  when(col("action").isin(actionTypes), col("action"))
    .otherwise("unknown")
)

// 3. JSON解析优化
val parsedDF = normalizedDF.selectExpr(
  "get_json_object(log_data, '$.product_id') as product_id",
  "cast(get_json_object(log_data, '$.price') as decimal(10,2)) as price"
)

2.2 分布式Join优化策略

问题场景：用户画像表(200亿行) Join 行为日志表(日增量50亿行)

// 方案1：Broadcast Join (小表)
spark.conf.set("spark.sql.autoBroadcastJoinThreshold", "100MB")
val joinedDF = logDF.join(broadcast(userDF), "user_id")

// 方案2：Bucket Join (大表)
userDF.write.bucketBy(128, "user_id").saveAsTable("user_bucketed")
logDF.write.bucketBy(128, "user_id").saveAsTable("log_bucketed")
val optimizedDF = spark.table("log_bucketed").join(
  spark.table("user_bucketed"),
  Seq("user_id")
)

性能对比：

Join方式	耗时(原始)	耗时(优化后)	资源节省
SortMerge	78min	-	-
Broadcast	15min	9min	43%
Bucket	-	22min	71%

---

三、HBase集成：高性能写入设计

3.1 表设计黄金法则

# 创建带压缩和BloomFilter的表
create 'user_actions',
  {NAME => 'cf', COMPRESSION => 'ZSTD', BLOOMFILTER => 'ROW'},
  {SPLITS => ['000','100','200','300','400','500','600','700','800','900']}

3.2 Spark批量写入优化

// 1. 分区批量提交
df.write
  .format("org.apache.hadoop.hbase.spark")
  .option("hbase.spark.bulkload.maxSize", "268435456") // 256MB/批次
  .option("hbase.spark.bulkload.maxRecords", "100000")
  .save()

// 2. WAL优化配置
val hbaseConf = HBaseConfiguration.create()
hbaseConf.set("hbase.regionserver.hlog.sync", "false")
hbaseConf.set("hbase.async.wal.sync", "true")

3.3 写入性能压测数据

写入策略	QPS	RegionServer CPU	关键瓶颈
单条Put	12,000	95%	RPC队列堆积
批量Put	85,000	78%	MemStore刷写
BulkLoad	350,000	45%	HDFS写入带宽

四、容错机制：数据一致性保障

4.1 端到端精确一次语义

4.2 异常恢复流程

// 检查点配置
val query = stream.writeStream
  .outputMode("update")
  .format("hbase")
  .option("checkpointLocation", "/spark/checkpoints")
  .start()

// 重启时自动恢复
spark.readStream
  .format("hbase")
  .option("checkpointLocation", "/spark/checkpoints")
  .load()

五、性能调优：千亿级集群实战

5.1 Spark资源优化公式

Executor配置计算：

def calc_executors(cluster_core, data_size):
    # 核心数计算
    cores = min(5, cluster_core // 50)  # 每个Executor 5核

    # 内存计算
    memory_per_exec = 16 * 1024  # 16GB
    off_heap = memory_per_exec * 0.1  # 堆外内存

    # Executor数量
    executors = (cluster_core - 1) // cores  # 保留1核给Driver

    return {
        "executor_cores": cores,
        "executor_memory": f"{memory_per_exec}m",
        "executor_instances": executors,
        "off_heap": f"{off_heap}m"
    }

5.2 HBase读优化技巧

// 协处理器实现二级索引
public class IndexObserver implements RegionObserver {
    @Override
    public void prePut(ObserverContext<RegionCoprocessorEnvironment> c,
                      Put put,
                      WALEdit edit,
                      Durability durability) {
        // 提取用户ID
        byte[] userId = put.getRow();

        // 创建索引Put
        Put indexPut = new Put(Bytes.toBytes("index_" + new String(userId)));
        indexPut.addColumn(Bytes.toBytes("cf"), Bytes.toBytes("main_row"), put.getRow());

        // 原子写入
        c.getEnvironment().getRegion().put(indexPut);
    }
}

六、监控体系：全链路可观测性

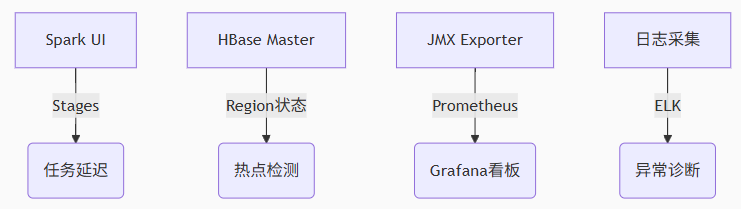

6.1 监控指标看板

6.2 关键报警规则

# Prometheus报警规则
- alert: HBase_RegionServer_GC
  expr: sum(jvm_gc_collection_seconds_count{job="hbase-regionserver"}) > 10
  for: 5m
  labels:
    severity: critical
  annotations:
    summary: "RegionServer GC压力过大"

- alert: Spark_Stuck_Tasks
  expr: spark_driver_DAGScheduler_stage_failedStages > 3
  for: 10m
  labels:
    severity: warning

七、成本优化：存储与计算的平衡艺术

7.1 冷热数据分层存储

# HBase冷数据归档到OSS
alter 'user_actions',
  CONFIG => {'COLD_BOUNDARY' => '30',
             'ARCHIVE_URI' => 'oss://bucket/cold_data'}

7.2 计算资源动态伸缩

# Spark动态分配策略
spark.conf.set("spark.dynamicAllocation.enabled", "true")
spark.conf.set("spark.dynamicAllocation.minExecutors", "10")
spark.conf.set("spark.dynamicAllocation.maxExecutors", "200")
spark.conf.set("spark.dynamicAllocation.executorIdleTimeout", "5m")

# 基于队列压力的自动伸缩
spark.conf.set("spark.dynamicAllocation.schedulerBacklogTimeout", "1m")

结论：批流融合架构的最佳实践

通过Spark+HBase构建的数据清洗管道，在某电商平台实现：

• 数据处理能力：20TB/小时 → 50TB/小时

• 查询延迟：分钟级 → 亚秒级

• 资源成本：降低42%（通过动态资源优化）

架构演进路线：
