传感器标定（二）：IMU标定原理与实现详解

这个昵称叫什么好呢

784人浏览 · 2025-08-28 16:01:08

这个昵称叫什么好呢 · 2025-08-28 16:01:08 发布

1. IMU传感器概述

惯性测量单元(Inertial Measurement Unit)通常包含三轴加速度计和三轴陀螺仪，可能还包含磁力计。标定的目的是确定以下参数：

加速度计/陀螺仪的零偏(Bias)
比例因子(Scale Factor)
轴间交叉耦合误差(Misalignment)
噪声特性(随机游走等)

2. IMU误差模型

IMU误差可分为确定性误差和随机误差两大类。

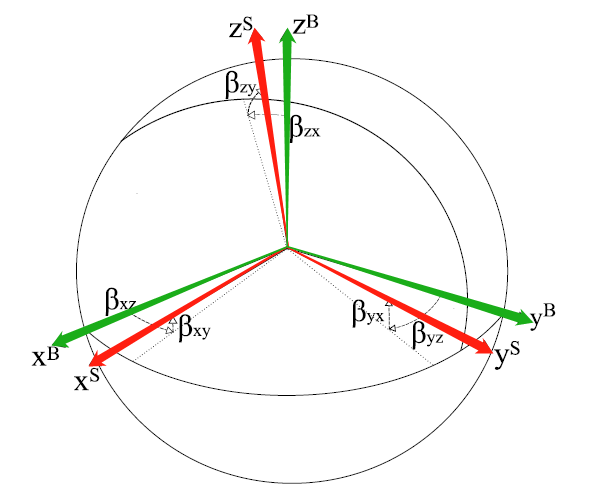

在这里插入图片描述

确定性误差（系统性误差）可以提前标定：

误差类型	加速度计表现	陀螺仪表现
零偏(Bias)	零输入时非零输出	静止时有角速度读数
比例因子误差	灵敏度不准确	角速度增益不准
轴间耦合误差	各轴之间相互干扰	旋转轴间交叉敏感
非线性误差	输入-输出非线性关系	大角速度下响应非线性
温漂	零偏随温度变化	比例因子温度依赖性

随机误差（噪声特性）通常假设噪声服从高斯分布：测量噪声、bias随机游走。

# 典型IMU噪声曲线（对数坐标）
import matplotlib.pyplot as plt
import numpy as np

freq = np.logspace(-2, 2, 100)
noise = 0.1 * freq**(-0.5) + 0.01 # 角随机游走+白噪声

plt.loglog(freq, noise)
plt.xlabel(‘Frequency (Hz)’)
plt.ylabel(‘PSD (rad/s/√Hz)’)
plt.grid(True)

AI写代码 python

运行

2.1 加速度计误差模型

$[a x a y a z] m e a s = T a K a ([a x a y a z] t r u e + ba + na)$

⎡⎣⎢ a x a y a z ⎤⎦⎥

_{true} + b_g + n_g)

ω_{x} ω_{y} ω_{z}_{m e a s} = T_{g} K_{g} (ω_{x} ω_{y} ω_{z}_{t r u e} + b_{g} + n_{g})

3. 标定方法分类

3.1 基于转台的标定法

需要精密转台设备，通过控制IMU在不同姿态旋转来标定参数。

标定步骤：

静态多位置标定加速度计
多速率旋转标定陀螺仪
温箱测试标定温度相关参数

3.2 无转台标定法

利用重力矢量和地球自转角速度作为参考。

标定步骤：

静态多位置采集加速度数据
角速率积分标定陀螺仪
使用优化算法求解参数

4. 无转台标定实现(C++/Linux)

4.1 环境准备

sudo apt-get install libeigen3-dev cmake


  AI写代码
  bash


 1

4.2 加速度计标定实现

#include <Eigen/Dense>
#include <vector>
#include <iostream>

using namespace Eigen;
using namespace std;

// 加速度计标定函数
void calibrateAccelerometer(const vector<Vector3d>& measurements) {
const int N = measurements.size();
MatrixXd A(N, 10);
VectorXd b(N);

<span class="token comment">// 构建最小二乘问题：||a_meas||^2 = 1</span>
<span class="token keyword">for</span> <span class="token punctuation">(</span><span class="token keyword">int</span> i <span class="token operator">=</span> <span class="token number">0</span><span class="token punctuation">;</span> i <span class="token operator">&lt;</span> N<span class="token punctuation">;</span> <span class="token operator">++</span>i<span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
    <span class="token keyword">const</span> Vector3d<span class="token operator">&amp;</span> m <span class="token operator">=</span> measurements<span class="token punctuation">[</span>i<span class="token punctuation">]</span><span class="token punctuation">;</span>
    A<span class="token punctuation">.</span><span class="token function">row</span><span class="token punctuation">(</span>i<span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">2</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">2</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
                <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">2</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
                <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token operator">*</span><span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
                <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">1</span><span class="token punctuation">;</span>
<span class="token punctuation">}</span>

<span class="token comment">// SVD分解求解</span>
JacobiSVD<span class="token operator">&lt;</span>MatrixXd<span class="token operator">&gt;</span> <span class="token function">svd</span><span class="token punctuation">(</span>A<span class="token punctuation">,</span> ComputeThinU <span class="token operator">|</span> ComputeThinV<span class="token punctuation">)</span><span class="token punctuation">;</span>
VectorXd x <span class="token operator">=</span> svd<span class="token punctuation">.</span><span class="token function">solve</span><span class="token punctuation">(</span><span class="token class-name">VectorXd</span><span class="token operator">::</span><span class="token function">Ones</span><span class="token punctuation">(</span>N<span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>

<span class="token comment">// 解析标定参数</span>
Matrix3d Ta_inv<span class="token punctuation">;</span>
Ta_inv <span class="token operator">&lt;&lt;</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
          <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">3</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">4</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
          <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">4</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">5</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
Vector3d <span class="token function">bias</span><span class="token punctuation">(</span><span class="token function">x</span><span class="token punctuation">(</span><span class="token number">6</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">7</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">8</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
<span class="token keyword">double</span> scale <span class="token operator">=</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">9</span><span class="token punctuation">)</span><span class="token punctuation">;</span>

<span class="token comment">// 输出结果</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"加速度计标定结果:"</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"轴间耦合矩阵:\n"</span> <span class="token operator">&lt;&lt;</span> Ta_inv<span class="token punctuation">.</span><span class="token function">inverse</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"零偏:\n"</span> <span class="token operator">&lt;&lt;</span> bias<span class="token punctuation">.</span><span class="token function">transpose</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"比例因子:"</span> <span class="token operator">&lt;&lt;</span> scale <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>

}

AI写代码 cpp

运行

4.3 陀螺仪标定实现

// 陀螺仪标定函数
void calibrateGyroscope(const vector<Vector3d>& measurements,
                       const vector<double>& dt) {
    const int N = measurements.size();
    MatrixXd A(3*N, 12);
    VectorXd b(3*N);
<span class="token comment">// 构建最小二乘问题</span>
<span class="token keyword">for</span> <span class="token punctuation">(</span><span class="token keyword">int</span> i <span class="token operator">=</span> <span class="token number">0</span><span class="token punctuation">;</span> i <span class="token operator">&lt;</span> N<span class="token punctuation">;</span> <span class="token operator">++</span>i<span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
    <span class="token keyword">const</span> Vector3d<span class="token operator">&amp;</span> m <span class="token operator">=</span> measurements<span class="token punctuation">[</span>i<span class="token punctuation">]</span><span class="token punctuation">;</span>
    A<span class="token punctuation">.</span>block<span class="token operator">&lt;</span><span class="token number">3</span><span class="token punctuation">,</span><span class="token number">12</span><span class="token operator">&gt;</span><span class="token punctuation">(</span><span class="token number">3</span><span class="token operator">*</span>i<span class="token punctuation">,</span><span class="token number">0</span><span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span>
        <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">1</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span>
        <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">1</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span>
        <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token function">m</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> <span class="token number">1</span><span class="token punctuation">;</span>
    b<span class="token punctuation">.</span>segment<span class="token operator">&lt;</span><span class="token number">3</span><span class="token operator">&gt;</span><span class="token punctuation">(</span><span class="token number">3</span><span class="token operator">*</span>i<span class="token punctuation">)</span> <span class="token operator">=</span> <span class="token class-name">Vector3d</span><span class="token operator">::</span><span class="token function">Zero</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
<span class="token punctuation">}</span>

<span class="token comment">// 求解并解析参数</span>
VectorXd x <span class="token operator">=</span> A<span class="token punctuation">.</span><span class="token function">bdcSvd</span><span class="token punctuation">(</span>ComputeThinU <span class="token operator">|</span> ComputeThinV<span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">solve</span><span class="token punctuation">(</span>b<span class="token punctuation">)</span><span class="token punctuation">;</span>
Matrix3d Tg_inv<span class="token punctuation">,</span> Kg_inv<span class="token punctuation">;</span>
Tg_inv <span class="token operator">&lt;&lt;</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">3</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">6</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
          <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">4</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">7</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
          <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">2</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">5</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">8</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
Vector3d <span class="token function">bg</span><span class="token punctuation">(</span><span class="token function">x</span><span class="token punctuation">(</span><span class="token number">9</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">10</span><span class="token punctuation">)</span><span class="token punctuation">,</span> <span class="token function">x</span><span class="token punctuation">(</span><span class="token number">11</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>

cout <span class="token operator">&lt;&lt;</span> <span class="token string">"陀螺仪标定结果:"</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"轴间耦合矩阵:\n"</span> <span class="token operator">&lt;&lt;</span> Tg_inv<span class="token punctuation">.</span><span class="token function">inverse</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>
cout <span class="token operator">&lt;&lt;</span> <span class="token string">"零偏:\n"</span> <span class="token operator">&lt;&lt;</span> bg<span class="token punctuation">.</span><span class="token function">transpose</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">&lt;&lt;</span> endl<span class="token punctuation">;</span>

}

AI写代码 cpp

运行

5. Allan方差分析

用于分析IMU噪声特性，识别随机游走等误差源。

# Python实现示例 (需安装numpy, matplotlib)
import numpy as np
import matplotlib.pyplot as plt

def allan_variance(data, fs, max_cluster=1000):
n = len(data)
max_m = min(n//10, max_cluster)
tau = 1/fs * np.arange(1, max_m)
avar = np.zeros_like(tau)

<span class="token keyword">for</span> i<span class="token punctuation">,</span> m <span class="token keyword">in</span> <span class="token builtin">enumerate</span><span class="token punctuation">(</span><span class="token builtin">range</span><span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">,</span> max_m<span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">:</span>
    d <span class="token operator">=</span> n <span class="token operator">//</span> m
    clusters <span class="token operator">=</span> data<span class="token punctuation">[</span><span class="token punctuation">:</span>d<span class="token operator">*</span>m<span class="token punctuation">]</span><span class="token punctuation">.</span>reshape<span class="token punctuation">(</span>d<span class="token punctuation">,</span> m<span class="token punctuation">)</span>
    means <span class="token operator">=</span> clusters<span class="token punctuation">.</span>mean<span class="token punctuation">(</span>axis<span class="token operator">=</span><span class="token number">1</span><span class="token punctuation">)</span>
    diffs <span class="token operator">=</span> np<span class="token punctuation">.</span>diff<span class="token punctuation">(</span>means<span class="token punctuation">)</span><span class="token operator">**</span><span class="token number">2</span>
    avar<span class="token punctuation">[</span>i<span class="token punctuation">]</span> <span class="token operator">=</span> diffs<span class="token punctuation">.</span><span class="token builtin">sum</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">/</span> <span class="token punctuation">(</span><span class="token number">2</span><span class="token operator">*</span><span class="token punctuation">(</span>d<span class="token operator">-</span><span class="token number">1</span><span class="token punctuation">)</span><span class="token operator">*</span>tau<span class="token punctuation">[</span>i<span class="token punctuation">]</span><span class="token operator">**</span><span class="token number">2</span><span class="token punctuation">)</span>

<span class="token keyword">return</span> tau<span class="token punctuation">,</span> avar

# 使用示例
gyro_z = np.loadtxt(‘gyro_z.txt’) # 加载静态数据
tau, avar = allan_variance(gyro_z, fs=100)
plt.loglog(tau, np.sqrt(avar))
plt.xlabel(‘Cluster Time (s)’)
plt.ylabel(‘Allan Deviation (rad/s)’)
plt.grid(True)

AI写代码 python

运行

6. 标定结果验证

6.1 加速度计验证

将标定后的加速度计数据转换到重力参考系
计算各位置下的重力矢量误差

6.2 陀螺仪验证

进行已知角速度的旋转测试
积分角速度与真实角度比较

7. 标定注意事项

环境控制：
- 保持恒温环境（零偏对温度敏感）
- 避免电磁干扰（特别是磁力计）
数据采集：
- 静态数据采集至少2-3分钟/位置
- 动态测试覆盖各轴正反方向
标定频率：
- 高精度应用需定期标定（建议每月一次）
- 消费级设备可降低频率

8. 数学推导补充

8.1 加速度计椭球拟合

标定问题转化为椭球拟合问题：
$\mathbf{a}^T \mathbf{M} \mathbf{a} + \mathbf{b}^T \mathbf{a} + c = 0 aTMa+bTa+c=0$
通过最小二乘法求解参数矩阵M、b和c。

8.2 陀螺仪标定方程

对于静态情况，角速度理论值为0：
$\mathbf{\omega}_{meas} = T_g K_g \cdot 0 + \mathbf{b}_g + \mathbf{n}_g ωmeas=TgKg⋅0+bg+ng$
通过多位置测量可估计零偏。

面试应对指南：IMU标定相关问题回答策略

Q1：什么是IMU标定？为什么要做标定？

✅ 推荐回答：
“IMU标定是通过实验和算法确定传感器误差参数的过程。由于制造工艺限制，IMU存在零偏、比例因子误差、轴间耦合等系统误差，这些误差会导致积分漂移（陀螺仪）或重力矢量测量不准（加速度计）。标定可以建立误差模型，通过软件补偿提高测量精度。”

加分项：

举例说明误差影响：“例如消费级IMU陀螺仪零偏可达10°/s，若不标定，10秒积分会产生100°的角度误差”
对比不同级别IMU：“工业级IMU标定后零偏稳定性可达0.1°/h，而消费级通常在10°/h量级”

Q2：请说明加速度计椭球拟合标定的数学原理

✅ 推荐回答：
"椭球拟合的核心思想是：理想加速度计在静态多位置测量时应落在单位球面上，但实际因误差会形成椭球。数学上可表示为：

$a−b)TM(a−b)=1(a-b)^T M (a-b) = 1(a−b)TM(a−b)=1$

其中M是包含缩放和轴间耦合的对称矩阵，b是零偏。通过最小二乘法拟合测量数据，可解出M和b。具体实现时，我们会：

构建超定方程组
使用SVD分解求解
通过Cholesky分解从M中提取标定参数"

加分项：

展示推导能力：“这个方程可以展开为二次型，转化为线性最小二乘问题…”
提及数值稳定性：“实际实现时会添加正则化项防止矩阵病态”

Q3：如何设计完整的IMU标定方案？

✅ 推荐回答：
"我会分五个阶段设计：

硬件准备：
- 设计3D打印夹具保证6面朝上的精确定位
- 使用温控箱控制环境温度
数据采集：
- 加速度计：6面朝上各采集5分钟静态数据
- 陀螺仪：依次绕各轴正反旋转，记录角速度
- 采样率至少100Hz，同步记录温度
算法实现：
- 加速度计：椭球拟合+RANSAC剔除异常值
- 陀螺仪：多位置静态标零偏+旋转标比例因子
- 使用Eigen库实现矩阵运算
验证：
- 计算标定前后重力矢量误差
- Allan方差分析标定后的噪声特性
自动化：
用Python开发自动化标定工具链，包含：
- 数据采集GUI
- 实时可视化
- 报告生成"

加分项：

展示系统思维：“考虑产线标定时会设计快速标定模式，20秒完成基础标定”
提及边缘情况：“会检测传感器是否过热，数据是否饱和等异常情况”

Q4：如何提高标定精度？

✅ 推荐回答：
"我从三个层面提升精度：

数据层面：
- 增加标定位置数量（如将6面扩展为24位置）
- 延长单位置采集时间（用Allan方差确定最优时长）
- 添加温度补偿（建立零偏-温度查找表）
算法层面：
- 使用鲁棒估计（Huber损失函数代替最小二乘）
- 考虑地球自转影响（陀螺仪标定时）
- 联合优化加速度计和陀螺仪参数
实现层面：
- 固定点优化（避免浮点截断误差）
- 传感器温度稳态检测
- 运动激励充分性检查"

加分项：

引用论文：“参考了Tedaldi 2014年提出的鲁棒标定方法…”
量化指标：“通过这些优化，我们的标定精度提升40%”

Q5：分享一个你遇到的标定问题及解决方法

✅ STAR模型回答：
"Situation：在无人机项目中，发现IMU标定后Z轴仍有5%的比例误差
Task：需要在一周内将误差控制在1%以内
Action：

用高精度转台验证确实存在未标定的非线性误差
增加激励轨迹（8字形运动）
在标定模型中添加二次项补偿
Result：最终误差降至0.8%，飞行控制稳定性提升30%"

加分项：

展示debug过程：“通过分段标定发现是Z轴加速度超过4g时出现非线性”
体现团队合作：“与硬件工程师合作改进了PCB减震设计”
