一.基本概念

注：softmax函数是为了归一化

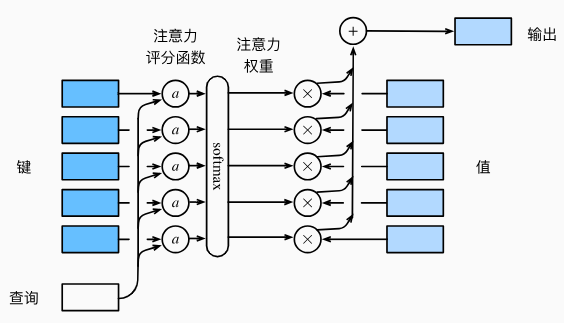

 注意力汇聚函数可表示为：

其中，为注意力评分函数

举例说明查询、键、值的关系：例如句子“红色的花在绿色的花园里”，可以考虑场景画图或扩写句子，当将注意力放在花上时，认为查询为花，通过对句子中的每个字（可以认为是键）分析和花（查询）的关系，得到红色和花的关系最密切（分析可认为是注意力评分函数），之后通过值得到输出，使得花的词向量更加倾向于红花或红玫瑰等。

加性注意力评分函数，适合查询和键是不同长度的矢量时使用：

缩放点积注意力评分函数，拥有更高的计算效率：

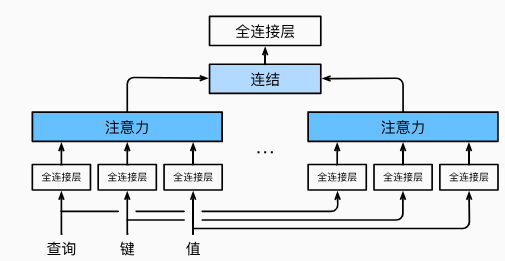

多头注意力：将查询/键/值先线性映射成 h 份，每一份单独做缩放点积注意力，产生一个注意力头，最后将每个注意力头连结起来，并进行一次线性变换得到最终输出

自注意力：输入序列的每个位置都作为查询、键、值，通过缩放点积注意力为每个位置计算出该位置对序列中所有位置（包括自身）的加权表示

自注意力无法获取序列的顺序信息，因此在输入中添加位置编码（X=X+P），使自注意力获得顺序信息：

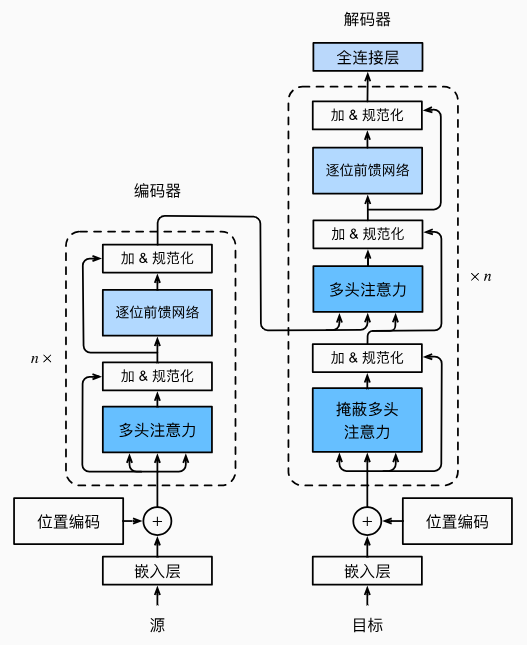

二.pytorch实现transformer

import math
import torch
import torch.nn as nn
import pandas as pd

# 缩放点积注意力
class DotProductAttention(nn.Module):
    def __init__(self, dropout, **kwargs):
        super(DotProductAttention, self).__init__(**kwargs)
        self.dropout = nn.Dropout(dropout)
    def forward(self, queries, keys, values, valid_lens=None):
        d = queries.shape[-1]
        scores = torch.bmm(queries, keys.transpose(1, 2)) / math.sqrt(d)
        self.attention_weights = self.dropout(nn.Softmax(dim=-1)(scores))
        return torch.bmm(self.attention_weights, values)

# 注意力头形状变换，为了并行计算而做的转换
def transpose_qkv(X, num_heads):
    X = X.reshape(X.shape[0], X.shape[1], num_heads, -1)
    X = X.permute(0, 2, 1, 3)
    return X.reshape(-1, X.shape[2], X.shape[3])

# 注意力头形状变换逆运算
def transpose_output(X, num_heads):
    X = X.reshape(-1, num_heads, X.shape[1], X.shape[2])
    X = X.permute(0, 2, 1, 3)
    return X.reshape(X.shape[0], X.shape[1], -1)


# 多头注意力
class MultiHeadAttention(nn.Module):
    def __init__(self, key_size, query_size, value_size, num_hiddens, num_heads, dropout, bias=False, **kwargs):
        super(MultiHeadAttention, self).__init__(**kwargs)
        self.num_heads = num_heads
        self.attention = DotProductAttention(dropout)
        self.W_q = nn.Linear(query_size, num_hiddens, bias=bias)
        self.W_k = nn.Linear(key_size, num_hiddens, bias=bias)
        self.W_v = nn.Linear(value_size, num_hiddens, bias=bias)
        self.W_o = nn.Linear(num_hiddens, num_hiddens, bias=bias)

    def forward(self, queries, keys, values, valid_lens):
        queries = self.transpose_qkv(self.W_q(queries))
        keys = self.transpose_qkv(self.W_k(keys))
        values = self.transpose_qkv(self.W_v(values))

        if valid_lens is not None:
            valid_lens = torch.repeat_interleave(valid_lens, repeats=self.num_heads, dim=0)

        output = self.attention(queries, keys, values, valid_lens)
        output = self.transpose_output(self.W_o(output))
        return self.W_o(output)

# 位置编码
class PositionalEncoding(nn.Module):
    def __init__(self, num_hiddens, dropout, max_len=1000):
        super(PositionalEncoding, self).__init__()
        self.dropout = nn.Dropout(dropout)
        self.P = torch.zeros((1, max_len, num_hiddens))
        X = torch.arange(max_len, dtype=torch.float32).reshape(-1, 1) / torch.pow(10000, torch.arange(0, num_hiddens, 2, dtype=torch.float32) / num_hiddens)
        self.P[:, :, 0::2] = torch.sin(X)
        self.P[:, :, 1::2] = torch.cos(X)

    def forward(self, X):
        X = X + self.P[:, :X.shape[1], :].to(X.device)
        return self.dropout(X)

# 基于位置的前馈网络
class PositionWiseFFN(nn.Module):
    def __init__(self, ffn_num_input, ffn_num_hiddens, ffn_num_outputs, **kwargs):
        super(PositionWiseFFN, self).__init__(**kwargs)
        self.dense1 = nn.Linear(ffn_num_input, ffn_num_hiddens)
        self.relu = nn.ReLU()
        self.dense2 = nn.Linear(ffn_num_hiddens, ffn_num_outputs)
    def forward(self, X):
        return self.dense2(self.relu(self.dense1(X)))

# 残差于层规范化
class AddNorm(nn.Module):
    def __init__(self, normalized_shape, dropout, **kwargs):
        super(AddNorm, self).__init__(**kwargs)
        self.dropout = nn.Dropout(dropout)
        self.ln = nn.LayerNorm(normalized_shape)
    def forward(self, X, Y):
        return self.ln(self.dropout(Y) + X)

# transformer编码器块
class EncoderBlock(nn.Module):
    def __init__(self, key_size, query_size, value_size, num_hiddens, num_heads, dropout, ffn_num_input, ffn_num_hiddens, norm_shape, **kwargs):
        super(EncoderBlock, self).__init__(**kwargs)
        self.attention = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout)
        self.addnorm1 = AddNorm(norm_shape, dropout)
        self.ffn = PositionWiseFFN(ffn_num_input, ffn_num_hiddens, num_hiddens)
        self.addnorm2 = AddNorm(norm_shape, dropout)

    def forward(self, X, valid_lens):
        Y = self.addnorm1(X, self.attention(X, X, X, valid_lens))
        return self.addnorm2(Y, self.ffn(Y))

# transformer编码器
class TransformerEncoder(nn.Module):
    def __init__(self, vocab_size, key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, num_layers, dropout, use_bias=False, **kwargs):
        super(TransformerEncoder, self).__init__(**kwargs)
        self.num_hiddens = num_hiddens
        self.embedding = nn.Embedding(vocab_size, num_hiddens)
        self.pos_encoding = PositionalEncoding(num_hiddens, dropout, max_len)
        self.blks = nn.Sequential()
        for i in range(num_layers):
            self.blks.add_module(f"block_{i}", EncoderBlock(key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, dropout, use_bias))

    def forward(self, X, valid_lens):
        X = self.pos_encoding(self.embedding(X) * math.sqrt(self.num_hiddens))
        self.attention_weights = [None] * len(self.blks)
        for i, blk in enumerate(self.blks):
            X = blk(X, valid_lens)
            self.attention_weights[i] = blk.attention.attention.attention_weights
        return X

# transformer解码器块
class DecoderBlock(nn.Module):
    def __init__(self, key_size, query_size, value_size, num_hiddens, num_heads, dropout, ffn_num_input, ffn_num_hiddens, norm_shape, i, **kwargs):
        super(DecoderBlock, self).__init__(**kwargs)
        self.i = i
        self.attention1 = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout)
        self.addnorm1 = AddNorm(norm_shape, dropout)
        self.attention2 = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout)
        self.addnorm2 = AddNorm(norm_shape, dropout)
        self.ffn = PositionWiseFFN(ffn_num_input, ffn_num_hiddens, num_hiddens)
        self.addnorm3 = AddNorm(norm_shape, dropout)

    def forward(self, X, state):
        enc_outputs, enc_valid_lens = state[0], state[1]
        if state[2][self.i] is None:
            key_values = X
        else:
            key_values = torch.cat((state[2][0], X), dim=1)
        state[2][self.i] = key_values

        if self.training:
            batch_size, num_steps, _ = X.shape
            # 有效长度扩展为(batch_size, num_steps)
            valid_lens = torch.arange(1, num_steps + 1, device=X.device).repeat(batch_size, 1)
        else:
            valid_lens = None

        # 自注意力
        X2 = self.attention1(X, key_values, key_values, valid_lens)
        Y = self.addnorm1(X, X2)
        # 编码器-解码器注意力
        Y2 = self.attention2(Y, enc_outputs, enc_outputs, enc_valid_lens)
        Z = self.addnorm2(Y, Y2)
        return self.addnorm3(Z, self.ffn(Z)), state

# transformer解码器
class TransformerDecoder(nn.Module):
    def __init__(self, vocab_size, key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, num_layers, dropout, **kwargs):
        super(TransformerDecoder, self).__init__(**kwargs)
        self.num_hiddens = num_hiddens
        self.embedding = nn.Embedding(vocab_size, num_hiddens)
        self.pos_encoding = PositionalEncoding(num_hiddens, dropout, max_len)
        self.blks = nn.Sequential()
        for i in range(num_layers):
            self.blks.add_module(f"block_{i}", DecoderBlock(key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, dropout, i))
        self.dense = nn.Linear(num_hiddens, vocab_size)

    def init_state(self, enc_outputs, enc_valid_lens, *args):
        return [enc_outputs, enc_valid_lens, [None] * len(self.blks)]

    def forward(self, X, state):
        X = self.pos_encoding(self.embedding(X) * math.sqrt(self.num_hiddens))
        self.attention_weights = [[None] * len(self.blks) for _ in range(2)]
        for i, blk in enumerate(self.blks):
            X, state = blk(X, state)
            # 解码器自注意力权重
            self.attention_weights[0][i] = blk.attention1.attention.attention_weights
            # 编码器-解码器注意力权重
            self.attention_weights[1][i] = blk.attention2.attention.attention_weights
        return self.dense(X), state

    @property
    def attention_weights(self):
        return self._attention_weights

# 基本编码器接口
class Encoder(nn.Module):
    def __init__(self, **kwargs):
        super(Encoder, self).__init__(**kwargs)

    def forward(self, X, *args):
        raise NotImplementedError

# 基本解码器接口
class Decoder(nn.Module):
    def __init__(self, **kwargs):
        super(Decoder, self).__init__(**kwargs)

    def init_state(self, enc_outputs, *args):
        raise NotImplementedError

    def init_state(self, X, *args):
        raise NotImplementedError

    def forward(self, X, state):
        raise NotImplementedError


# 编码器-解码器构架
class EncoderDecoder(nn.Module):
    def __init__(self, encoder, decoder, **kwargs):
        super(EncoderDecoder, self).__init__(**kwargs)
        self.encoder = encoder
        self.decoder = decoder

    def forward(self, enc_X, dec_X, *args):
        enc_outputs = self.encoder(enc_X, *args)
        dec_state = self.decoder.init_state(enc_outputs, *args)
        return self.decoder(dec_X, dec_state)


# 构造transformer模型
# encoder = TransformerEncoder(vocab_size, key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, num_layers, dropout, use_bias)
# decoder = TransformerDecoder(vocab_size, key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, num_layers, dropout, use_bias)
# model = EncoderDecoder(encoder, decoder)
