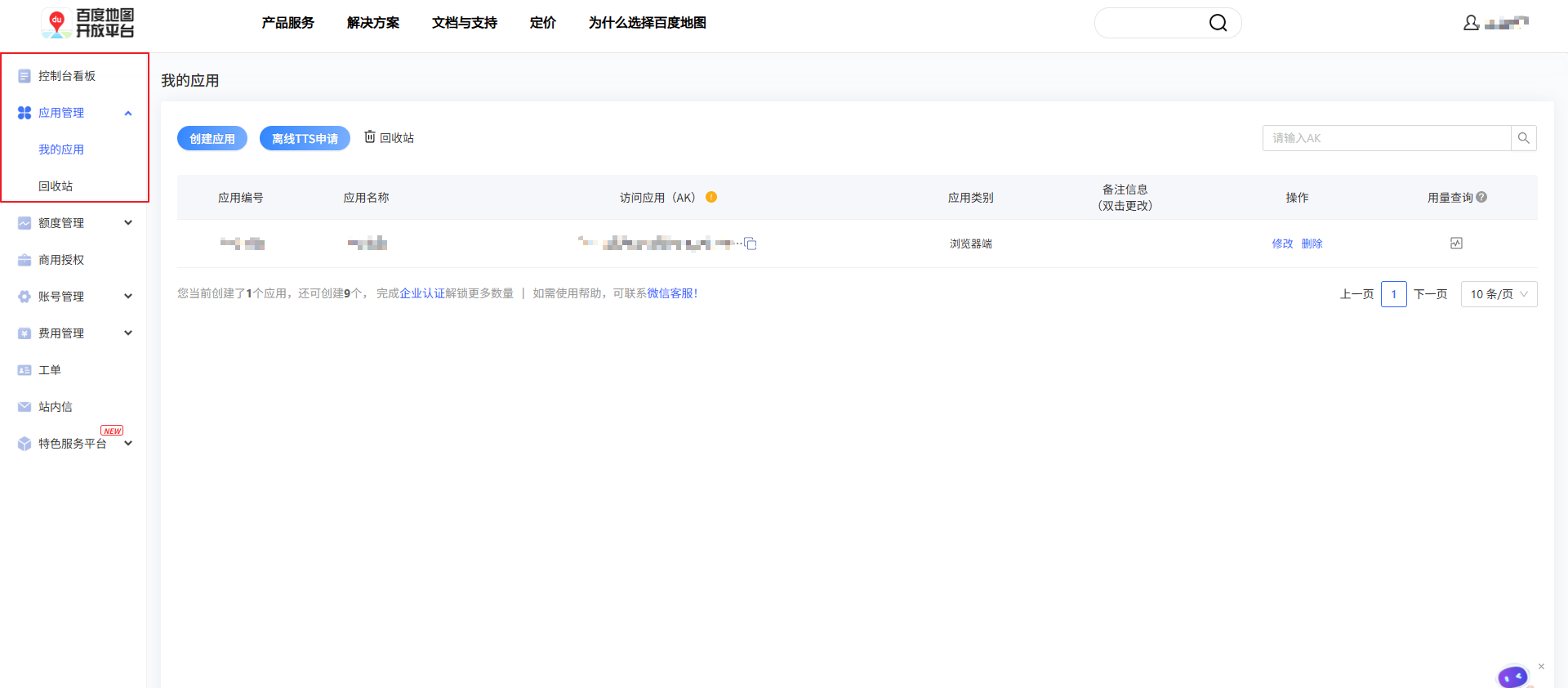

1.首先，登录需选择个人或者企业实名认证进入百度地图开放平台，点击右上角的控制台，进入开发者管理界面：控制台 | 百度地图开放平台

方法一：由于marker标记很多，拖动时造成卡顿，需要优化(适用少量标点)

代码如下:

注意点: 记得换成自己的key

https://api.map.baidu.com/api?v=3.0&ak=你的key&callback=onBaiduMapLoaded

<template>
  <div class="map-container">
    <div id="container" class="map" tabindex="0"></div>
    <div class="input-card">
      <div class="mt5"><el-avatar :size="20" src="图标地址"/> 一级代理店</div>
      <div class="mt5"><el-avatar :size="20" src="图标地址"/> 二级代理店</div>
      <div class="mt5"><el-avatar :size="20" src="图标地址"/> 三级代理店</div>
    </div>
    <div class="info">
      <div class="input-item">
        <el-input v-model="addressInput">
          <template #prepend>请输入地址</template>
        </el-input>
      </div>
      <div class="input-item">
        <el-input v-model="shopInput">
          <template #prepend>请输入店号</template>
        </el-input>
      </div>
      <el-button type='primary' @click="handleSearch">
        点击搜索
      </el-button>
    </div>

    <!-- 添加加载进度条 -->
    <div class="loading-overlay" v-if="isLoading">
      <div class="spinner"></div>
      <h3 style="color: #409eff">正在加载代理店数据...</h3>
      <p style="color: #606266">已加载 {{ loadedCount }} / {{ totalCount }} 家代理店 ({{ Math.round(progress) }}%)</p>
      <el-progress :percentage="Math.round(progress)" status="success" :stroke-width="6"></el-progress>
    </div>
  </div>
</template>

<script>
import { onMounted, ref } from 'vue';
// import { Api } from "../manage/api";

export default {
  name: 'AgentMapBaidu',
  setup() {
    const addressInput = ref('');
    const shopInput = ref('');
    const isLoading = ref(true);
    const progress = ref(0);
    const loadedCount = ref(0);
    const totalCount = ref(0);

    let map = null;
    let markers = [];
    let localSearch = null;
    let baiduApiLoaded = false;
    let shopData = []; // 存储所有店铺数据
    let batchIndex = 0; // 当前批次索引
    const batchSize = 100; // 减少每批加载的数量
    const delayBetweenMarkers = 10; // 每个标记点之间的延迟(ms)

    // 百度地图点样式
    const getPointStyles = () => {
      if (!window.BMap) return null;
      return {
        '一级代理店': {
          color: '#fcb715',
          icon: '图标地址',
          size: new BMap.Size(50, 50),
          anchor: new BMap.Pixel(5, 5),
          opacity: 0.1
        },
        '二级代理店': {
          color: '#00862b',
          icon: '图标地址',
          size: new BMap.Size(50, 50),
          anchor: new BMap.Pixel(5, 5),
          opacity: 0.1
        },
        '三级代理店': {
          color: '#015aef',
          icon: '图标地址',
          size: new BMap.Size(50, 50),
          anchor: new BMap.Pixel(5, 5),
          opacity: 0.1
        }
      };
    };

    const initBaiduApi = () => {
      return new Promise((resolve, reject) => {
        if (window.BMap) {
          resolve();
          return;
        }

        // 创建脚本标签
        const script = document.createElement('script');
        script.src = `https://api.map.baidu.com/api?v=3.0&ak=你的key&callback=onBaiduMapLoaded`;
        script.async = true;

        // 全局回调函数
        window.onBaiduMapLoaded = () => {
          baiduApiLoaded = true;
          resolve();
        };

        script.onerror = () => {
          console.error('百度地图API加载失败');
          reject(new Error('百度地图API加载失败'));
        };

        document.head.appendChild(script);
      });
    };

    const loadMap = () => {
      if (!window.BMap) {
        console.error('BMap is not defined');
        return;
      }

      map = new BMap.Map("container");
      const point = new BMap.Point(102.342785, 35.312316);
      map.centerAndZoom(point, 5);
      map.enableScrollWheelZoom();

      // 初始化本地搜索
      localSearch = new BMap.LocalSearch(map, {
        renderOptions: { map: map, panel: null },
        pageCapacity: 1
      });

      // 加载代理店数据
      loadAgentData();

      map.addEventListener("click", function(e) {
        console.log(e.point.lng + "," + e.point.lat);
      });
    };

    // 加载所有代理店数据
    const loadAgentData = async () => {
      if (!window.BMap) return;

      try {
        // 获取所有店铺数据
        // shopData = await Api().GetALl({fcode: '', faddr: '', State: true}); // 此处请替换为实际接口
        shopData = [ { FDLDName: "梁xx", FAdr: "四川省西昌市宁远桥光xxx", FDLDCode2: "0376AO", FType: "二级代理店", FLong: "102.2518450000", FLat: "27.8949840000", FId: 1301} ]
        // shopData = shopData.slice(0, 2000);

        // 设置总数量
        totalCount.value = shopData.length;

        // 清除旧标记
        clearMarkers();

        // 开始分批加载
        await loadBatch();
      } catch (error) {
        console.error('加载代理店数据失败:', error);
        isLoading.value = false;
      }
    };

    // 分批加载数据（优化版）
    const loadBatch = async () => {
      if (!window.BMap) return;

      const start = batchIndex * batchSize;
      const end = Math.min(start + batchSize, totalCount.value);

      const pointStyles = getPointStyles();
      if (!pointStyles) return;

      // 处理当前批次的数据（添加延迟）
      for (let i = start; i < end; i++) {
        await processMarker(i, pointStyles);

        // 每处理10个标记点更新一次进度
        if ((i - start) % 10 === 0) {
          loadedCount.value = i + 1;
          progress.value = ((i + 1) / totalCount.value) * 100;
        }
      }

      // 更新加载状态
      loadedCount.value = end;
      progress.value = (end / totalCount.value) * 100;

      // 处理下一批次
      if (end < totalCount.value) {
        batchIndex++;
        // 批次之间添加更长的延迟
        await new Promise(resolve => setTimeout(resolve, 10));
        loadBatch();
      } else {
        // 所有数据加载完成
        isLoading.value = false;
      }
    };

    // 处理单个标记点（添加延迟）
    const processMarker = async (index, pointStyles) => {
      const shop = shopData[index];
      const lng = parseFloat(shop.FLong) || 0;
      const lat = parseFloat(shop.FLat) || 0;

      // 跳过无效坐标
      if (lng === 0 || lat === 0) {
        return;
      }

      const point = new BMap.Point(lng, lat);
      let shopType = '一级代理店';
      if (shop.FType === '二级代理店') {
        shopType = '二级代理店';
      } else if (shop.FType === '三级代理店') {
        shopType = '三级代理店';
      }

      const style = pointStyles[shopType];
      if (!style) {
        return;
      }

      // 创建图标
      const markerIcon = new BMap.Icon(style.icon, style.size, {
        imageOffset: style.offset,
        imageSize: style.size
      });

      const marker = new BMap.Marker(point, {
        icon: markerIcon,
        enableMassClear: true,
        enableDragging: false,
        opacity: style.opacity || 1
      });

      const infoContent = `
        <div style="${'padding: 5px;min-width: 150px;color: ' + style.color};">
          <div>店号：${shop.FDLDCode2 || '无'}</div>
          <div>店主：${shop.FDLDName || '无'}</div>
          <div>地址：${shop.FAdr || '无'}</div>
          <div>类型：${shop.FType || '无'}</div>
        </div>
      `;

      const infoWindow = new BMap.InfoWindow(infoContent);

      marker.addEventListener("mouseover", function() {
        this.openInfoWindow(infoWindow);
      });

      map.addOverlay(marker);
      markers.push(marker);

      // 添加延迟，让浏览器有时间处理UI
      await new Promise(resolve => setTimeout(resolve, delayBetweenMarkers));
    };

    const clearMarkers = () => {
      if (!map || markers.length === 0) return;

      markers.forEach(marker => {
        map.removeOverlay(marker);
      });
      markers = [];
      console.log("清除所有标记");
    };

    const handleSearch = async() => {
      if (!window.BMap) {
        console.error('BMap is not defined');
        return;
      }

      if (addressInput.value) {
        localSearch.search(addressInput.value);
        return;
      }

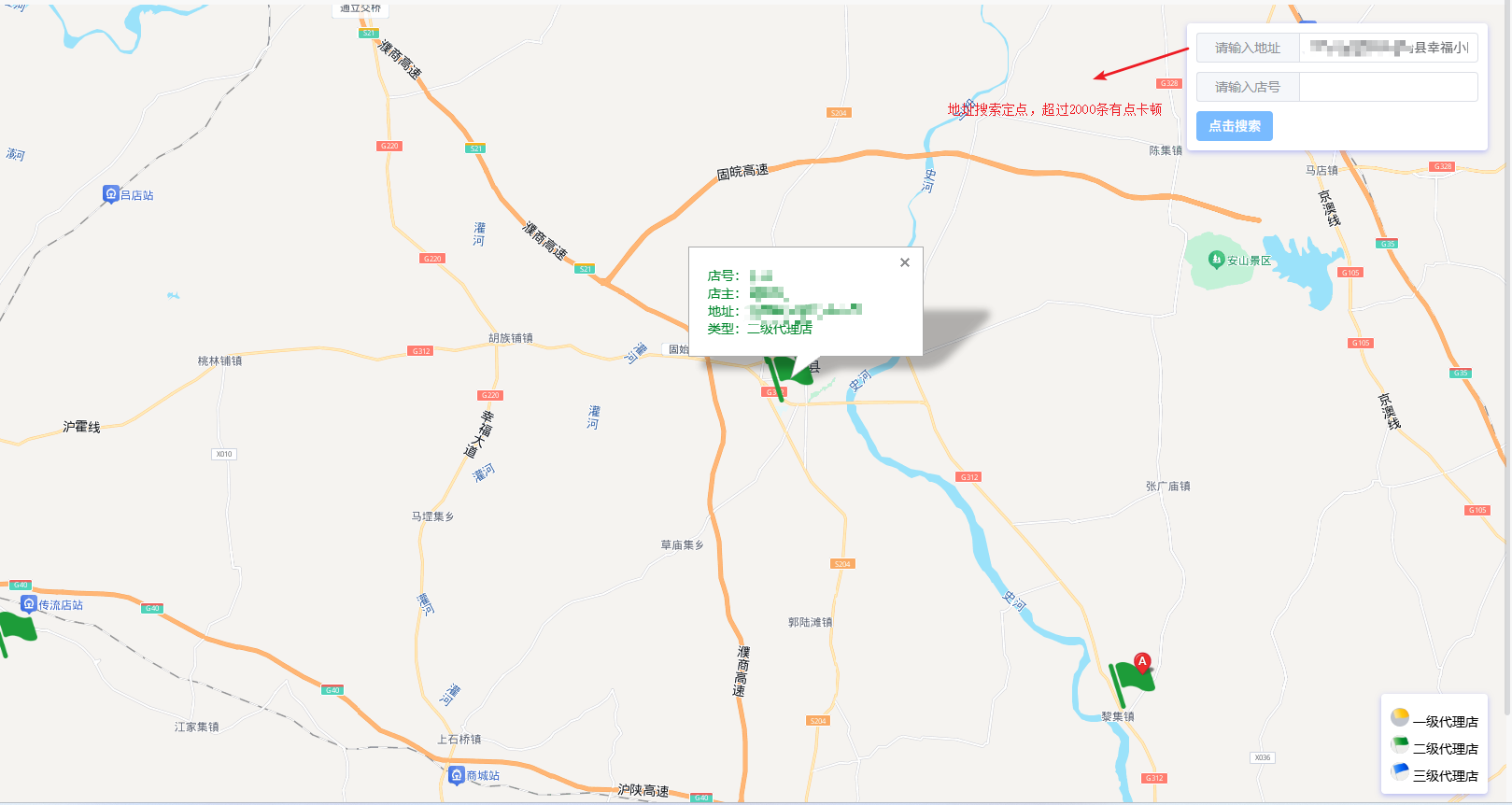

      if (shopInput.value) {
        // let arr = await Api().GetALl({fcode: shopInput.value, faddr: '', State: true}); //此处请替换为实际接口地址
        let arr = [ { FDLDName: "梁xx", FAdr: "四川省西昌市宁远桥光xxx", FDLDCode2: "0376AO", FType: "二级代理店", FLong: "102.2518450000", FLat: "27.8949840000", FId: 1301} ]
        console.log(arr[0]);
        if( arr.length > 0){
           localSearch.search(arr[0].FAdr);
           console.log(arr[0].FAdr);
        }
      }
    };

    const clearShopInput = () => shopInput.value = '';
    const clearAddressInput = () => addressInput.value = '';

    onMounted(async () => {
      try {
        await initBaiduApi();
        loadMap();
      } catch (error) {
        console.error('地图初始化失败:', error);
        isLoading.value = false;
      }
    });

    return {
      addressInput,
      shopInput,
      handleSearch,
      clearShopInput,
      clearAddressInput,
      isLoading,
      progress,
      loadedCount,
      totalCount
    };
  }
};
</script>

<style>
html, body, #container {
  height: 100%;
  width: 100%;
  margin: 0;
  padding: 0;
}

.map-container {
  position: relative;
  height: 100vh;
  width: 100vw;
}

.input-card {
  position: absolute;
  bottom: 100px;
  right: 20px;
  background: white;
  padding: 10px;
  border-radius: 4px;
  box-shadow: 0 2px 6px 0 rgba(114, 124, 245, .5);
  z-index: 10;
}

.info {
  position: absolute;
  top: 20px;
  right: 20px;
  background: white;
  padding: 10px;
  border-radius: 4px;
  box-shadow: 0 2px 6px 0 rgba(114, 124, 245, .5);
  z-index: 10;
}

.input-item {
  display: flex;
  align-items: center;
  margin-bottom: 10px;
}

.input-item-prepend {
  margin-right: 10px;
}

.mini-button {
  background: #4a90e2;
  color: white;
  border: none;
  padding: 8px 16px;
  border-radius: 4px;
  cursor: pointer;
  display: flex;
  align-items: center;
}

.mini-button:hover {
  background: #3a7bc8;
}

.icon-search {
  margin-right: 5px;
}

/* 加载覆盖层样式 */
.loading-overlay {
  position: absolute;
  top: 0;
  left: 0;
  right: 0;
  bottom: 0;
  background: rgba(255, 255, 255, 0.85);
  display: flex;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  z-index: 100;
  backdrop-filter: blur(3px);
}

.spinner {
  width: 50px;
  height: 50px;
  border: 5px solid rgba(64, 158, 255, 0.2);
  border-radius: 50%;
  border-top-color: #409eff;
  animation: spin 1s linear infinite;
  margin-bottom: 20px;
}

@keyframes spin {
  to { transform: rotate(360deg); }
}
</style>

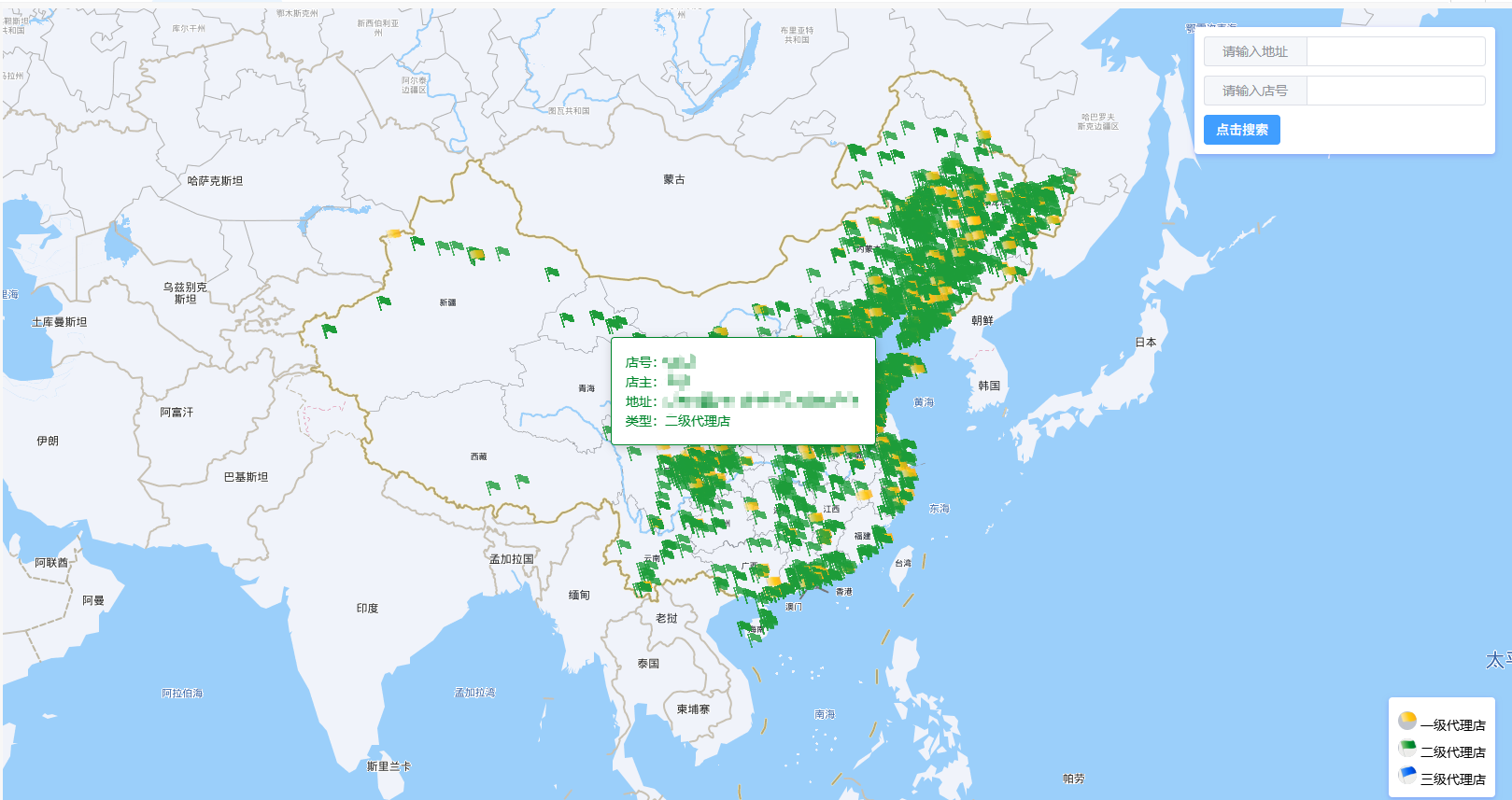

测试只是生成了1000个标点。

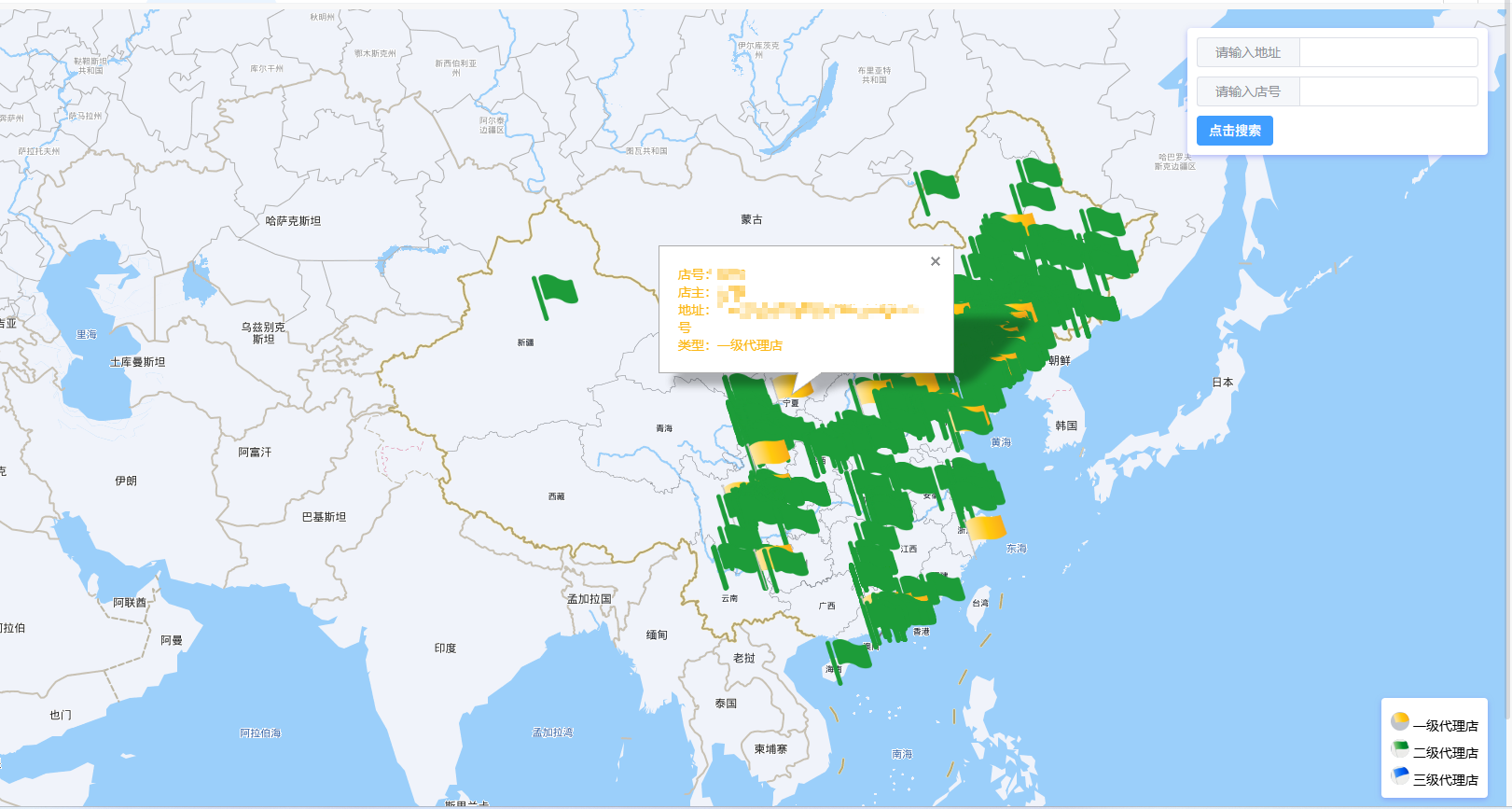

接下来要测试下2000个点，嗯有点小卡，但是还能操作，
5000个点试试，完美，动也动不了简直漂亮
10000个点，芭比Q页面无响应浏览器卡死~~~

方法二：（解决万级标点渲染，结合echarts使用所需插件自行安装）

npm install echarts --save

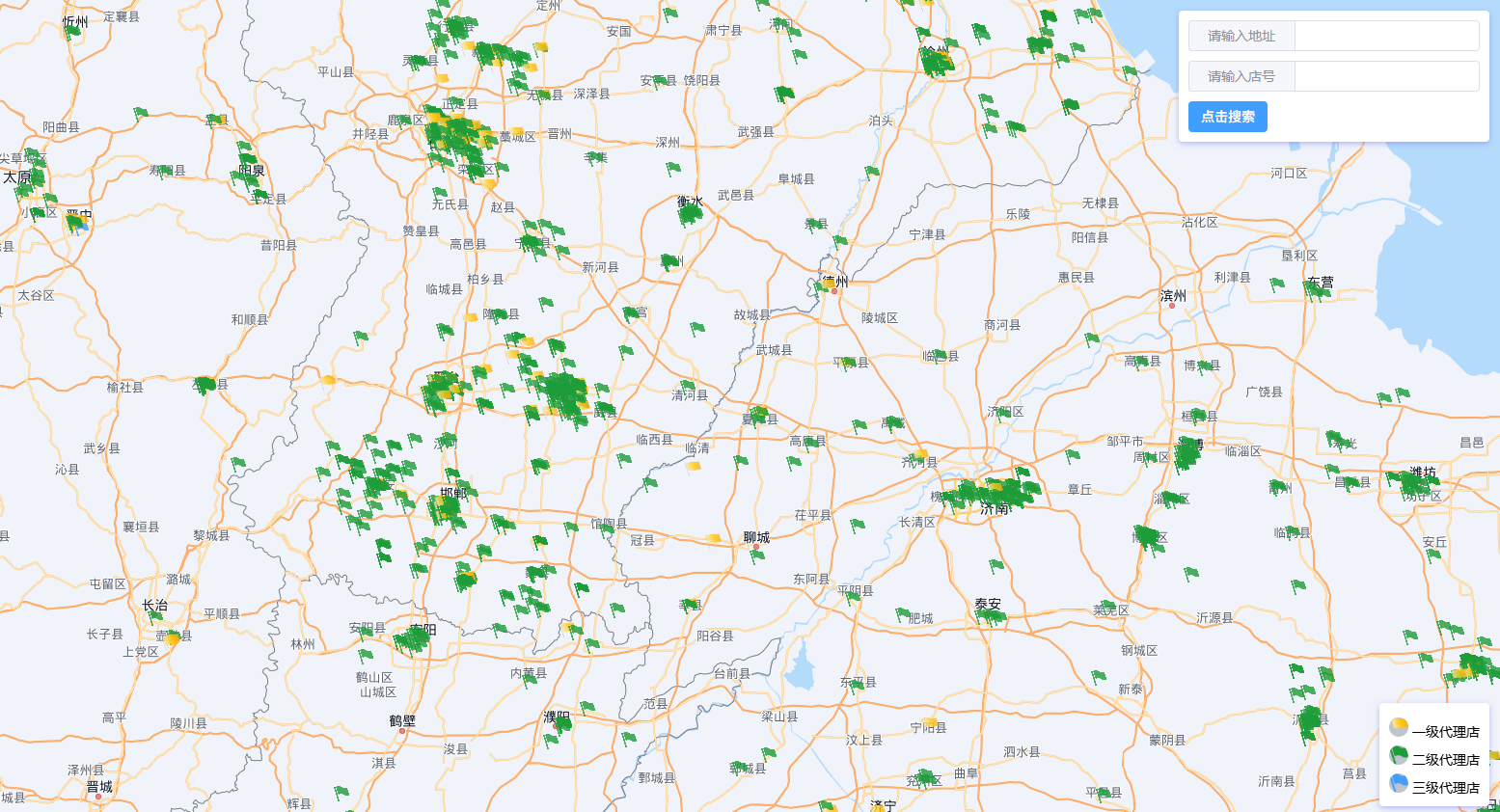

测试25600+条标点~嗯秒出...还可以

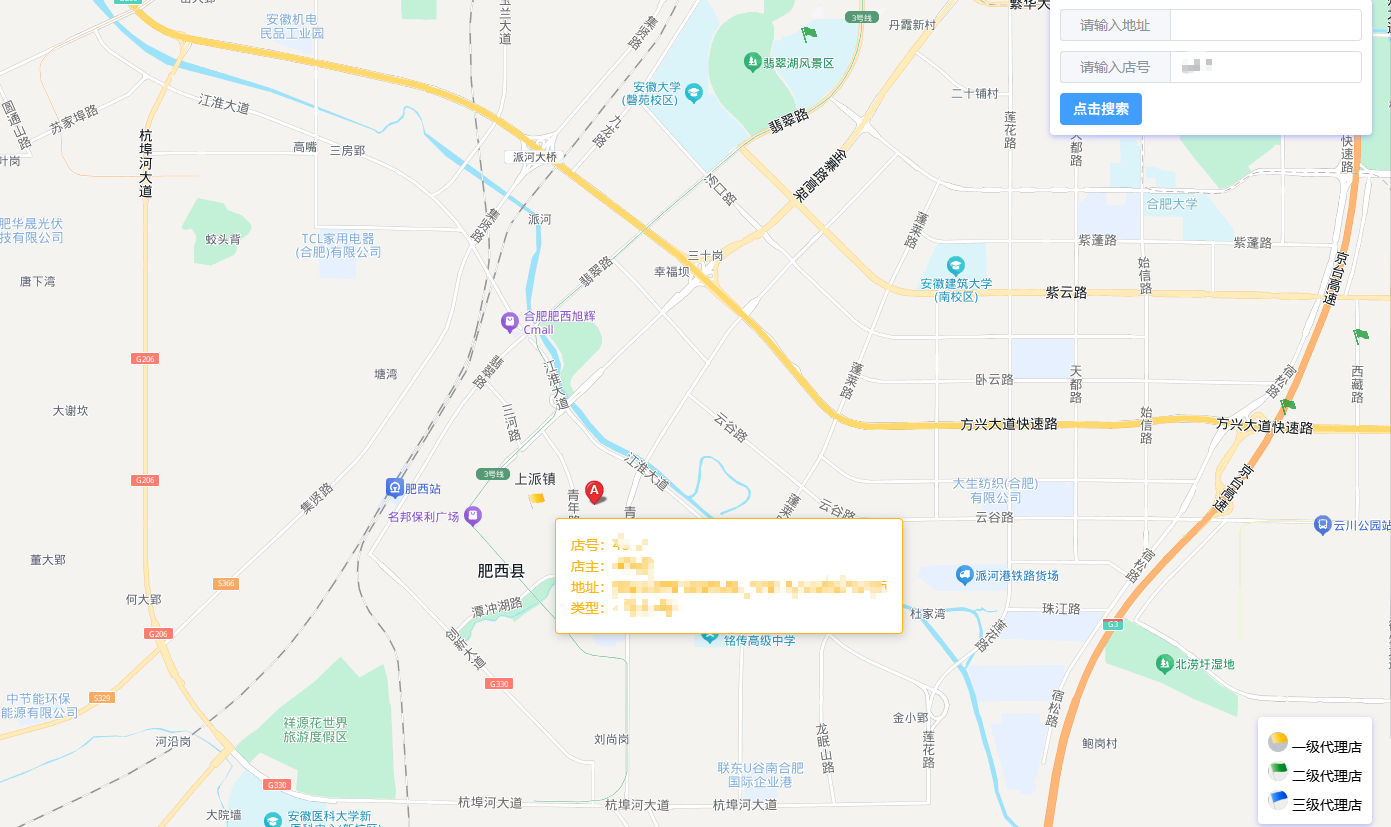

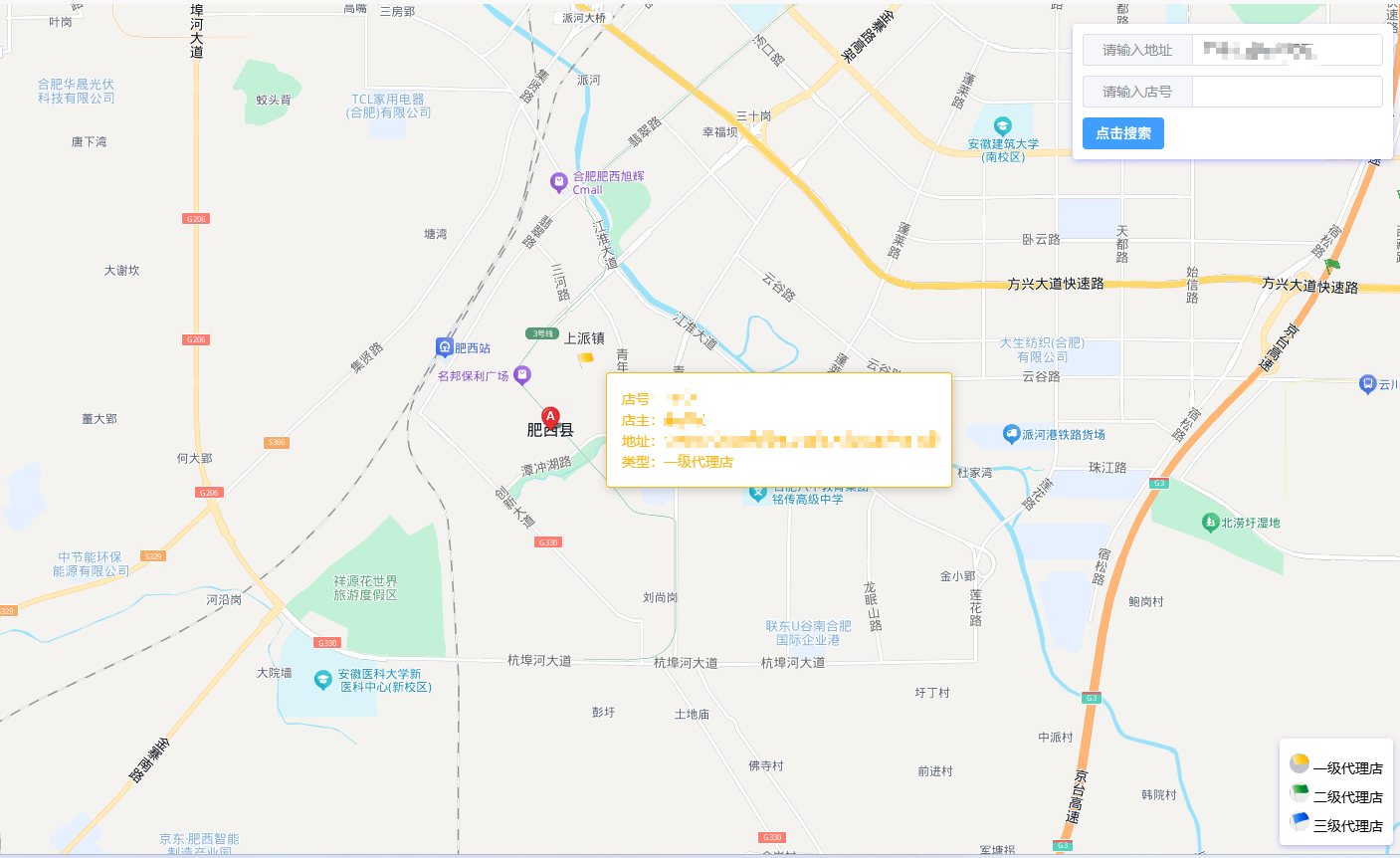

测试一下搜索地址和店号定位标点~不错也是秒出~完结散花~~

代码如下:

核心代码:

const initMap = () => {
chartInstance = echarts.init(document.getElementById('map-chart'));

// 初始配置 - 简化地图样式配置
const option = {
animation: true,
tooltip: {
trigger: 'item',
formatter: params => {
if (params.data) {
const data = params.data;
return `
<div style="padding: 5px; min-width: 150px; color: ${shopTypeConfig[data.type]?.color || '#333'}">
<div>店号：${data.code || '无'}</div>
<div>店主：${data.name || '无'}</div>
<div>地址：${data.address || '无'}</div>
<div>类型：${data.type || '无'}</div>
</div>
`;
}
return '';
}
},
bmap: {
center: [102.342785, 35.312316],
zoom: 5,
roam: true,
// 移除自定义样式，使用默认样式
mapStyle: {}
},
series: [{
name: '代理店',
type: 'scatter',
coordinateSystem: 'bmap',
data: [],
symbolSize: function(val) {
return shopTypeConfig[val.type]?.symbolSize || 10;
},
itemStyle: {
color: function(val) {
return shopTypeConfig[val.data?.type]?.color || '#333';
}
},
emphasis: {
itemStyle: {
color: function(val) {
return shopTypeConfig[val.data?.type]?.color || '#333';
},
borderWidth: 2,
borderColor: '#fff'
}
}
}]
};

chartInstance.setOption(option);

// 获取百度地图实例
bmap = chartInstance.getModel().getComponent('bmap').getBMap();
bmap.enableScrollWheelZoom();

// 初始化本地搜索
localSearch = new BMap.LocalSearch(bmap, {
renderOptions: { map: bmap, panel: null },
pageCapacity: 1
});

loadAgentData();
};

<template>
  <div class="map-container">
    <div id="map-chart" class="map" tabindex="0"></div>
    <div class="input-card">
      <div class="mt5"><el-avatar :size="20" src="图标地址"/>
         一级代理店
      </div>
      <div class="mt5"><el-avatar :size="20" src="图标地址"/>
         二级代理店
      </div>
      <div class="mt5"><el-avatar :size="20" src="图标地址"/>
         三级代理店
      </div>
    </div>
    <div class="info">
      <div class="input-item">
        <el-input @keyup.enter="handleSearch" @input="getaddValue" v-model="addressInput">
          <template #prepend>请输入地址</template>
        </el-input>
      </div>
      <div class="input-item">
        <el-input @keyup.enter="handleSearch" @input="getaddFcode" v-model="shopInput">
          <template #prepend>请输入店号</template>
        </el-input>
      </div>
      <el-button type='primary'  @click="handleSearch">
        点击搜索
      </el-button>
    </div>
  </div>
</template>

<script>
import { onMounted, ref, onBeforeUnmount } from 'vue';
import * as echarts from 'echarts';
import 'echarts/extension/bmap/bmap';

export default {
  name: 'AgentMapEcharts',
  setup() {
    const addressInput = ref('');
    const shopInput = ref('');
    const flageone =  ref(false)
    const flagetwo =  ref(false)
    let chartInstance = null;
    let bmap = null;
    let localSearch = null;

    // 店铺类型配置
    const shopTypeConfig = {
      '一级代理店': {
        color: '#fcb715',
        icon: '图标地址',
        symbolSize: 18 //图标在地图大小显示
      },
      '二级代理店': {
        color: '#00862b',
        icon: '图标地址',
        symbolSize: 16
      },
      '三级代理店': {
        color: '#015aef',
        icon: '图标地址',
        symbolSize: 16
      }
    };

    // 初始化地图和图表
    const initMap = () => {
      chartInstance = echarts.init(document.getElementById('map-chart'));

      // 初始配置 - 简化地图样式配置
      const option = {
        animation: true,
        tooltip: {
          trigger: 'item',
          formatter: params => {
            if (params.data) {
              const data = params.data;
              return `
                <div style="padding: 5px; min-width: 150px; color: ${shopTypeConfig[data.type]?.color || '#333'}">
                  <div>店号：${data.code || '无'}</div>
                  <div>店主：${data.name || '无'}</div>
                  <div>地址：${data.address || '无'}</div>
                  <div>类型：${data.type || '无'}</div>
                </div>
              `;
            }
            return '';
          }
        },
        bmap: {
          center: [102.342785, 35.312316],
          zoom: 5,
          roam: true,
          // 移除自定义样式，使用默认样式
          mapStyle: {}
        },
        series: [{
          name: '代理店',
          type: 'scatter',
          coordinateSystem: 'bmap',
          data: [],
          symbolSize: function(val) {
            return shopTypeConfig[val.type]?.symbolSize || 10;
          },
          itemStyle: {
            color: function(val) {
              return shopTypeConfig[val.data?.type]?.color || '#333';
            }
          },
          emphasis: {
            itemStyle: {
              color: function(val) {
                return shopTypeConfig[val.data?.type]?.color || '#333';
              },
              borderWidth: 2,
              borderColor: '#fff'
            }
          }
        }]
      };

      chartInstance.setOption(option);

      // 获取百度地图实例
      bmap = chartInstance.getModel().getComponent('bmap').getBMap();
      bmap.enableScrollWheelZoom();

      // 初始化本地搜索
      localSearch = new BMap.LocalSearch(bmap, {
        renderOptions: { map: bmap, panel: null },
        pageCapacity: 1
      });

      loadAgentData();
    };

    // 加载代理店数据
    const loadAgentData = async () => {
      try {
        // let shops = await Api().GetALl({fcode: '', faddr: '', State: true}); // 此处请替换为实际接口地址
        let shops = [ { FDLDName: "梁xx", FAdr: "四川省西昌市宁远桥光xxx", FDLDCode2: "0376AO", FType: "二级代理店", FLong: "102.2518450000", FLat: "27.8949840000", FId: 1301} ]
        // console.log("店铺数据:", shops);

        // 转换数据格式
        const data = shops
          .filter(shop => {
            const lng = parseFloat(shop.FLong) || 0;
            const lat = parseFloat(shop.FLat) || 0;
            return lng !== 0 && lat !== 0;
          })
          .map(shop => {
            // if( shop.FType === '三级代理店'){
            //    console.log("==>", shop);
            // }
            const type = shop.FType || '一级代理店';
            return {
              name: shop.FDLDName,
              code: shop.FDLDCode2,
              address: shop.FAdr,
              type: type,
              value: [parseFloat(shop.FLong), parseFloat(shop.FLat), shop.FDLDName],
              symbol: `image://${shopTypeConfig[type]?.icon}`,
              symbolSize: shopTypeConfig[type]?.symbolSize || 10,
              itemStyle: {
                color: shopTypeConfig[type]?.color || '#333'
              }
            };
          });

        // 更新图表数据
        chartInstance.setOption({
          series: [{
            data: data
          }]
        });
      } catch (error) {
        console.error('加载代理店数据失败:', error);
      }
    };

    const getaddValue = () => {
      flageone.value = true
      flagetwo.value = false
    };
    const getaddFcode = () => {
       flagetwo.value = true
       flageone.value = false
    };
    // 处理搜索
    const handleSearch = async () => {
      if (!bmap) return;
      if (addressInput.value && flageone.value) {
        localSearch.search(addressInput.value);
        shopInput.value = ''
        return;
      }

      if (shopInput.value && flagetwo.value) {
        // let arr = await Api().GetALl({fcode: shopInput.value, faddr: '', State: true}); // 此处请替换为实际接口地址
        let arr = [ { FDLDName: "梁xx", FAdr: "四川省西昌市宁远桥光xxx", FDLDCode2: "0376AO", FType: "二级代理店", FLong: "102.2518450000", FLat: "27.8949840000", FId: 1301} ]
        if (arr.length > 0) {
          localSearch.search(arr[0].FAdr);
          addressInput.value = ''
        }
      }
    };

    // 窗口大小变化时重新调整图表大小
    const handleResize = () => {
      if (chartInstance) {
        chartInstance.resize();
      }
    };

    onMounted(() => {
      // 检查是否已加载百度地图API
      if (window.BMap) {
        initMap();
        return;
      }

      // 动态加载百度地图API
      const script = document.createElement('script');
      script.src = `https://api.map.baidu.com/api?v=3.0&ak=你的key&callback=initBMapCallback`; //需要换成百度地图的key
      script.async = true;

      window.initBMapCallback = () => {
        initMap();
      };

      script.onerror = () => {
        console.error('百度地图API加载失败');
      };

      document.head.appendChild(script);

      window.addEventListener('resize', handleResize);
    });

    onBeforeUnmount(() => {
      window.removeEventListener('resize', handleResize);
      if (chartInstance) {
        chartInstance.dispose();
      }
    });

    return {
      addressInput,
      shopInput,
      handleSearch,
      getaddValue,
      getaddFcode
    };
  }
};
</script>

<style>
.map-container {
  position: relative;
  height: 100vh;
  width: 100vw;
}

.map {
  height: 100%;
  width: 100%;
}

.input-card {
  position: absolute;
  bottom: 100px;
  right: 20px;
  background: white;
  padding: 10px;
  border-radius: 4px;
  box-shadow: 0 2px 6px 0 rgba(114, 124, 245, .5);
  z-index: 10;
}

.info {
  position: absolute;
  top: 20px;
  right: 20px;
  background: white;
  padding: 10px;
  border-radius: 4px;
  box-shadow: 0 2px 6px 0 rgba(114, 124, 245, .5);
  z-index: 10;
}

.input-item {
  display: flex;
  align-items: center;
  margin-bottom: 10px;
}
</style>

官方： jspopularGL | 百度地图API SDK

有问题欢迎来聊~需要离线版本的可以@@

天工造物局

北京人形旗下天工造物具身智能开源社区，聚焦具身天工与慧思开物两大平台

更多推荐

Handy 离线语音转写教程：免费开源，本地跑不连网

你肯定遇到过：语音输入 5 分钟，云转写服务要登录、要付费；或者出差没网，想口述一段会议纪要，发现全都没法用。Handy 离线语音转写工具就是为解决这个问题做的，声音全程不出你的电脑。## 🎯 这个工具是什么Handy 是一款免费、开源、跨平台（Windows / macOS / Linux）的离线语音转写应用。按住快捷键说话，松手后文字直接粘贴进任意输入框，全程不联网。核心能力就三条：

天工造物局

Supabase Edge Functions 编写与部署完整指南：Deno 运行时上的无服务器利器

Supabase Edge Functions 是基于 Deno 运行时编写、面向 Web 的无服务器函数服务，帮你把后端逻辑部署到全球边缘节点。作为 Postgres 开发平台的核心能力之一，它让你用 TypeScript 就能快速搭建低延迟的 API 端点、Webhook 接收器和 AI 集成服务，无需管理任何服务器。本文将从零带你完成一个 Edge Function 的创建、本地调试与全球部

天工造物局

celld从v0.1.0到v0.2.0为何不能滚动升级：两个破坏性变更详解

celld 是一个自托管、分布式的 Durable Objects 开源守护进程，它在你自己的机器上运行 Cloudflare Workers，每个对象对应一个独立的 SQLite 数据库，并持续复制到你自己拥有的 S3 兼容存储桶中。如果你正准备把 v0.1.0 的集群（fleet）升级到 v0.2.0，这篇文章必须先读：这次升级**不能滚动升级**，必须采用"先停光、再启动"的一次性发布方式。
